Microline 8480FB User’s Guide
Loading Print Media • 18
• Maximum Width x Length: 14.3” (364 mm) x 14.3” (364 mm)
Normal Print Mode (the factory default)
• Up to 6-part forms (original + 5)
• Maximum Thickness: 0.0142” (0.36 mm)
High Impact Mode
• Up to 8-part forms (original + 7)
• Maximum Thickness: 0.0189” (0.48 mm)

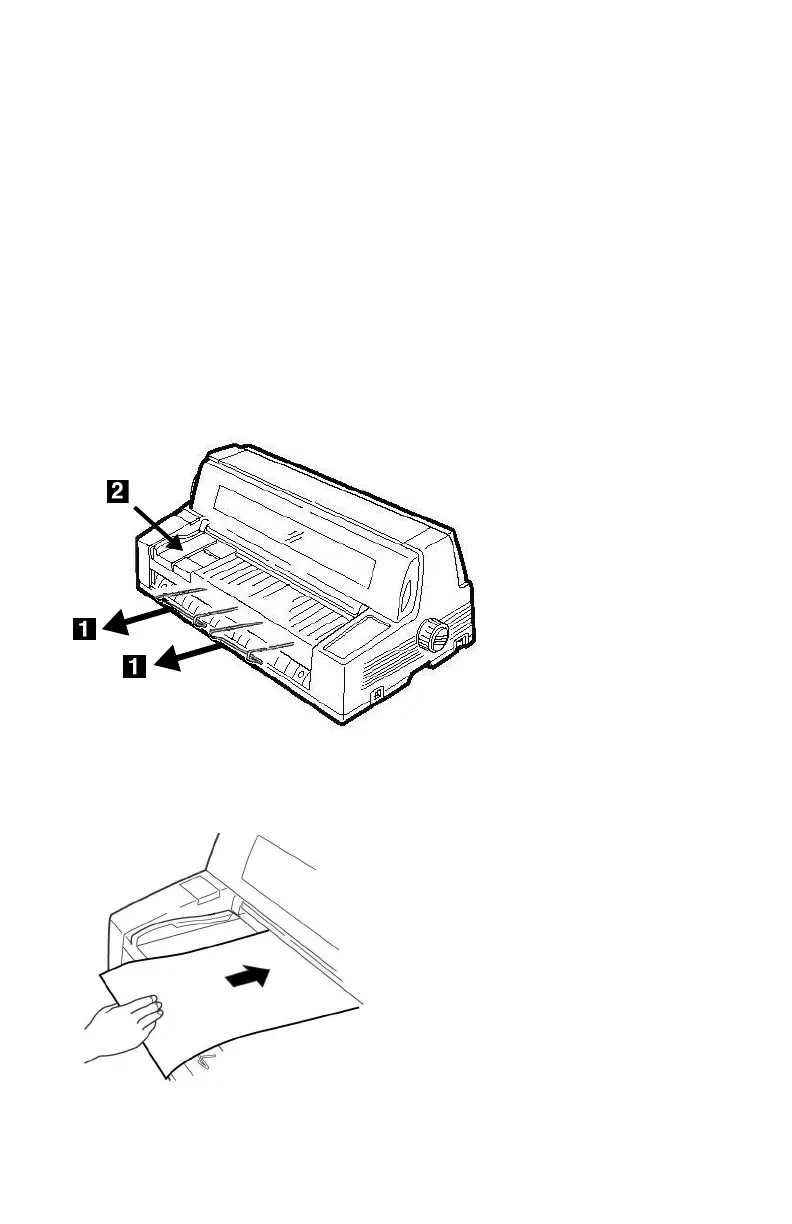

Load Individual Sheets/Forms
1. If you are using longer paper, pull out the sheet supports (1).
2. Move the sheet guide (2) to the right as far as it will go. This
ensures that the single sheet/form is within the “Paper range
when Auto Align is ON” area on the platform.
3. Place a letter size or larger sheet of paper on the platform
anywhere within the “Paper range when Auto Align is ON” area
To Next Page
