Microline 8480FB User’s Guide
Setting the Top of Form (TOF) • 56

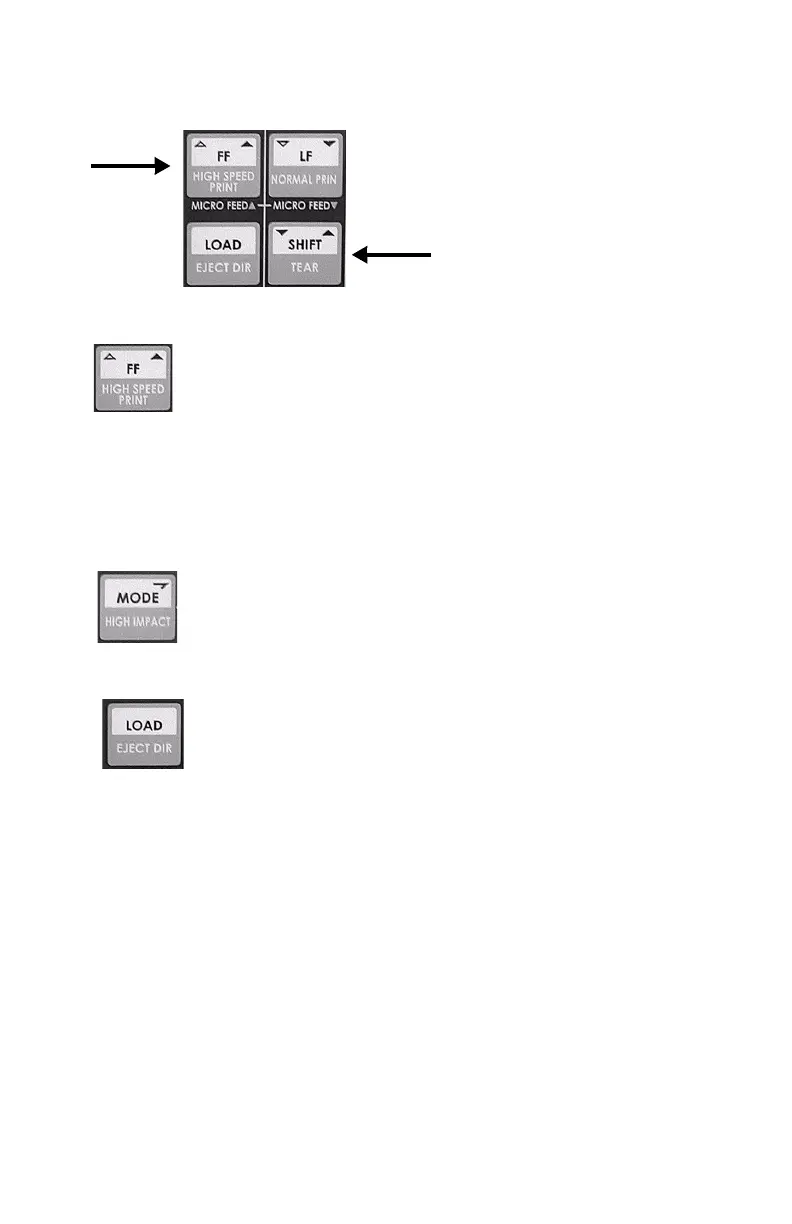

3. Press and hold SHIFT, then press FF repeatedly until the feed
path for which you wish to change the TOF appears:
Manual
Feed
or Front Feed.
4. Press FF.
TOF displays.
5. Press MODE repeatedly until the setting you wish to engage
displays: 2.12 mm (1/12”), 3.18 mm (1/8”), 6.35 mm (1/4”),
7.62 mm (3/10”), 8.47 mm (1/3”), 10.58 mm (5/12”), 23.28
mm (11/12”), 25.4 mm (1”), or 27.52 mm (13/12”).
6. Press LOAD: this saves your setting and exits the menu mode.
