4742-E P-71
SECTION 2 DC POWER SUPPLY UNIT (MPS, MPR UNIT)
5. Controller ID Number
Eeospcsa2014

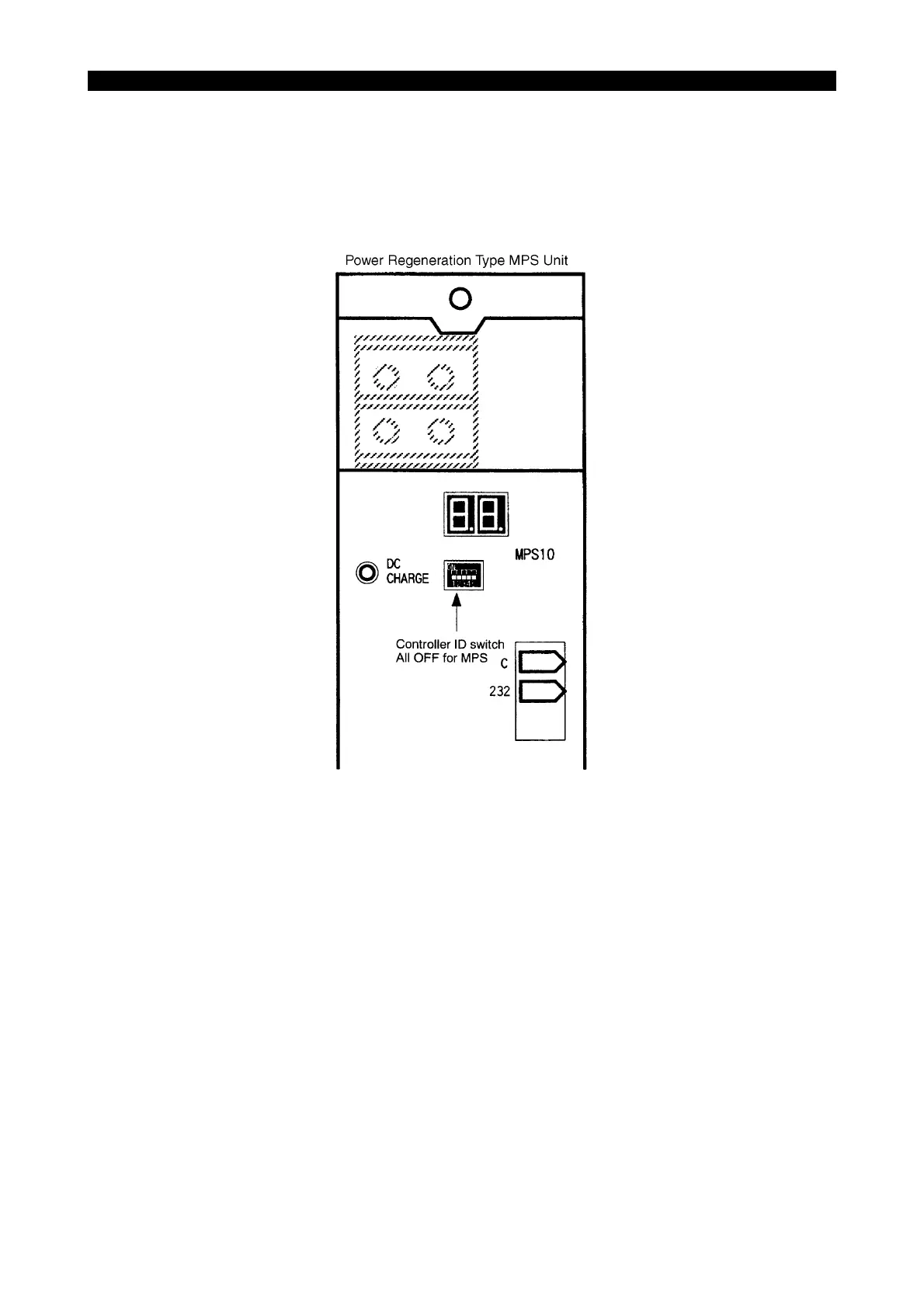

Since a DC power supply unit is not connected to the servo link, it is not necessary to set a controller
ID number. With MPS unit, however, set the 5-bit controller ID switch to all OFF since the switch is
used as the mode selection switch (changing to the adjustment mode).
MPR unit does not have a controller ID switch.
EIOSPCSA2014R01
