Okuma ICB1-S - Description of Monitor Terminals; Arrangement of Monitor Terminals

4742-E P-72
SECTION 2 DC POWER SUPPLY UNIT (MPS, MPR UNIT)
6. Description of Monitor Terminals
Eeospcsa2015
MPS unit has the monitor terminals to allow observation of waveform of power source voltage and
current by connecting an oscilloscope to these terminals.

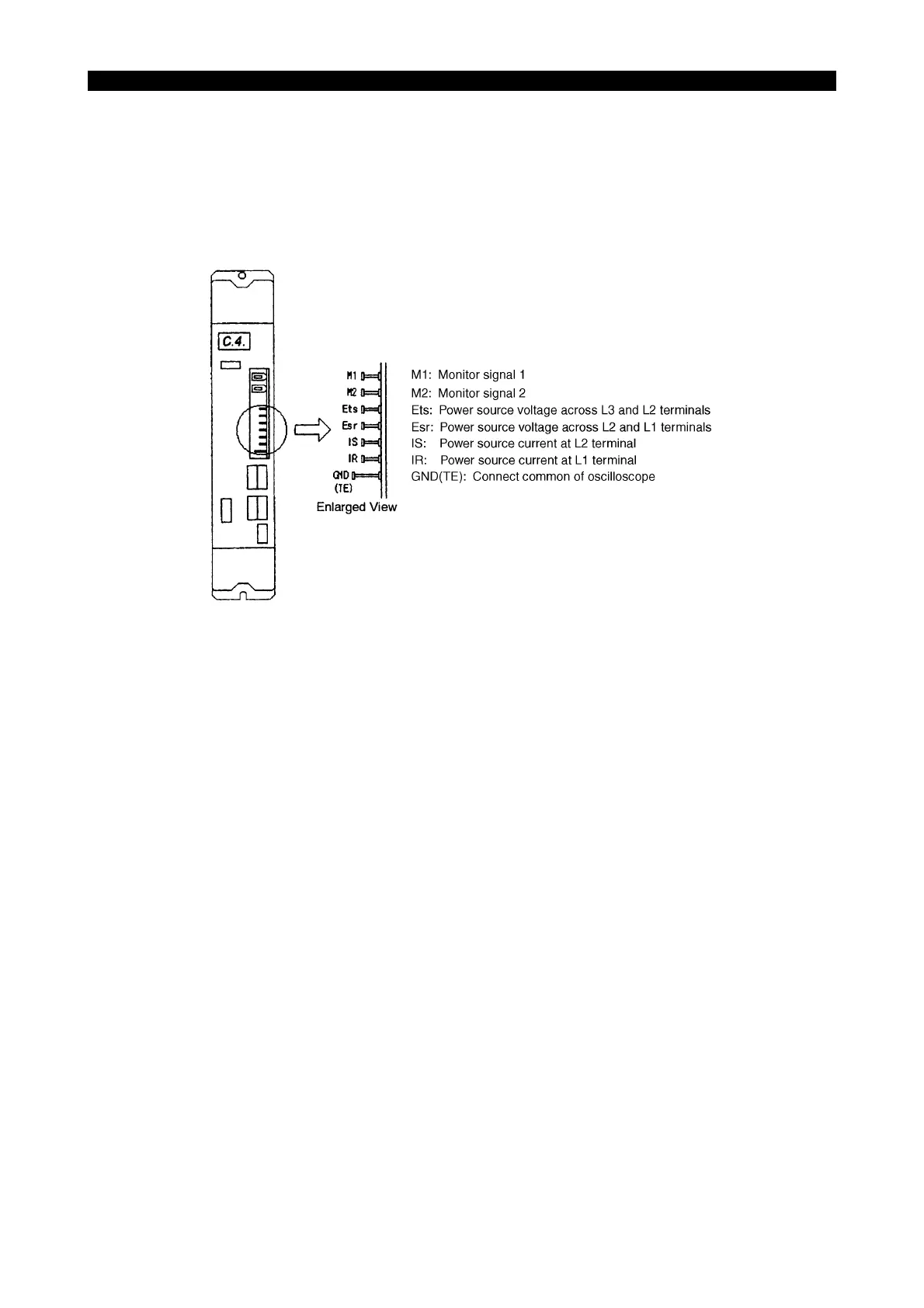

6-1. Arrangement of Monitor Terminals
Eeospcsa2016
EIOSPCSA2015R01
