SECTION 3 Appendix 1. Procedure for Replacing External Cooling Fan
3-2. Procedure for Replacing MIV30, MIV45, MPS45 and MPS60 Fan
Eeospcsa3006

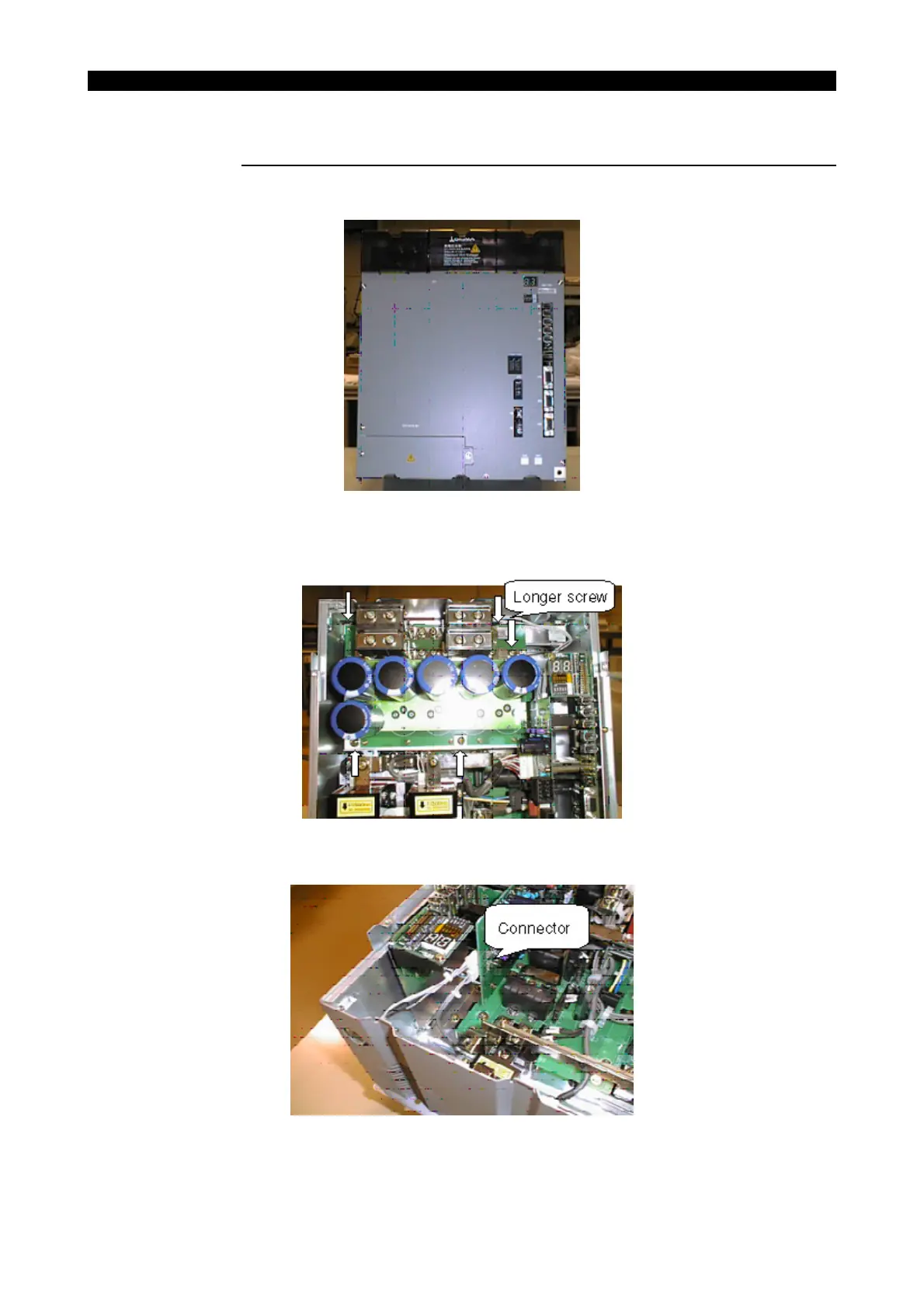

Procedure :
1
Remove the DC bus terminal block cover and front panel.
EIOSPCSA3005R01
2 Loosen five screws to remove the DC bus board.
(Two of the five screws have different length; be careful during assembly of new fan.)
EIOSPCSA3006R01
3 Disconnect the fan motor cable connector from the board.
EIOSPCSA3007R01
