Cable preparation
The cable shall be taken from the controller (measurement and automation) to the
point of measurement (see Figure 8). The passage, support, and protection of the
cable shall be according to best practice.
Cable entry
The detector is supplied without cable gland.
It is essential that the instructions provided by the manufacturer of the
compression gland are follow ed and the braided screen is correctly connected.
M20x1.5 flamme proof certified cable gland shall be used (see Chapter 11).

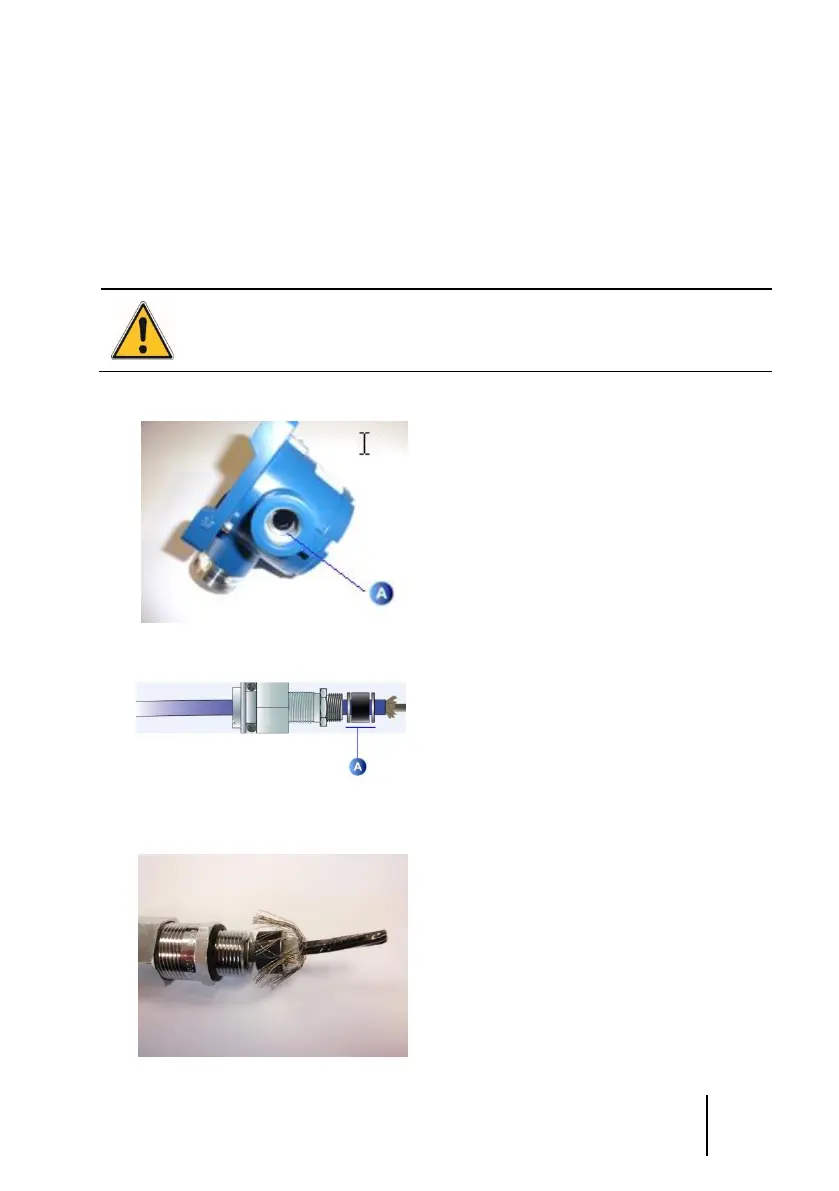

1 - Remove the gasket and the two
metal washers (Rep A) supplied
with the detector.
2 - Arrange the cable as shown in the
picture.
3 - Spread the braided shield as
shown in the picture.
Avoid creating "pigtails" with the
braided shield.
