Oldham OLCT 100 XP User Manual

40
OLC(T) 100
User manual
High temperature version
Proceed as follows for the high temperature version.
Inhibit any alarm signals on the controller.
Switch off the supply to the detector.
Loosen the maintenance screw (Figure 17, "B") on the detector head cover
and remove it.
Replace the defective detector head and replace the maintenance screw "B"
on the detector head cover. Disconnect the high temperature cable from
terminal block "A" on the detector head. Connect the high temperature cable to
terminal block "A".
048

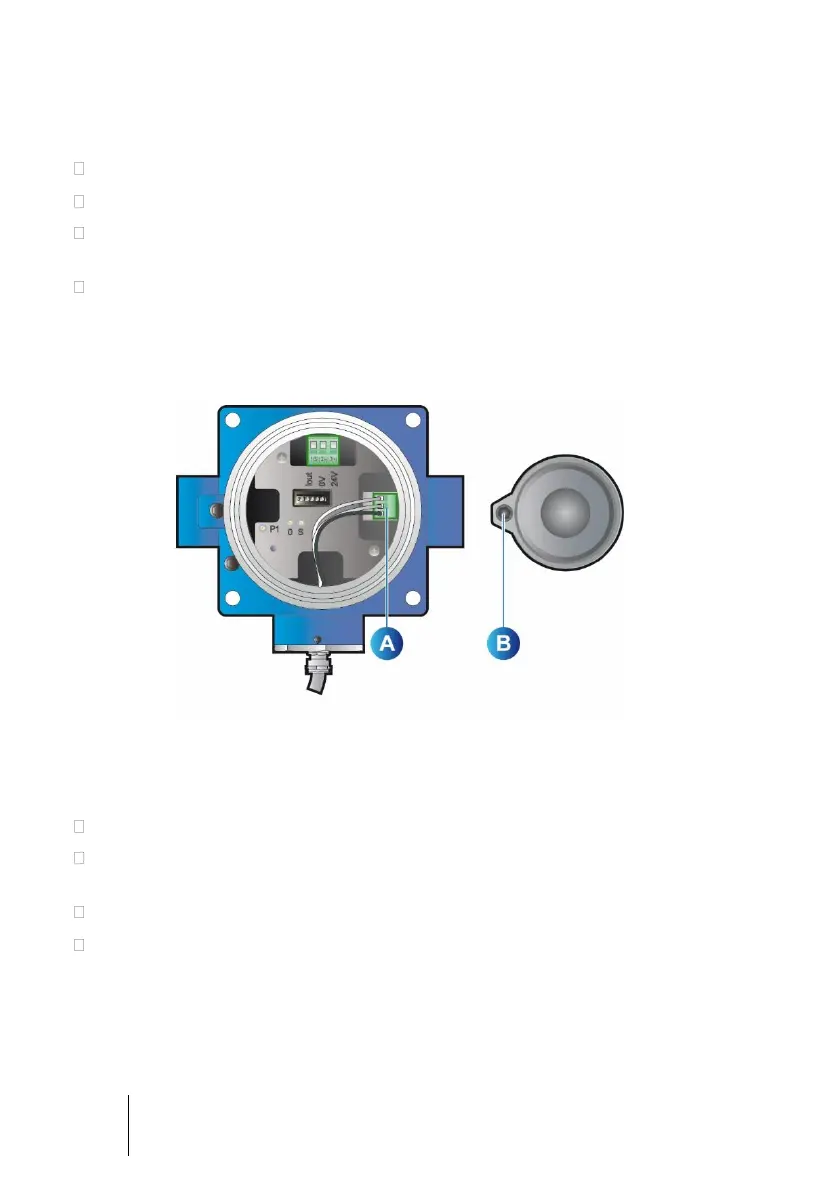

Figure 17 : OLCT 100 HT – elem ents specific to changing the high tem perature
sensor
Screw the detector head back on again and tighten the locking screws.
Re-establish the supply to the detector from the controller.
Adjust the settings for the new detector (see Chapter 4 | Calibration,
page27).
Close the detector cover.
Reset any alarm signals on the controller .
.
