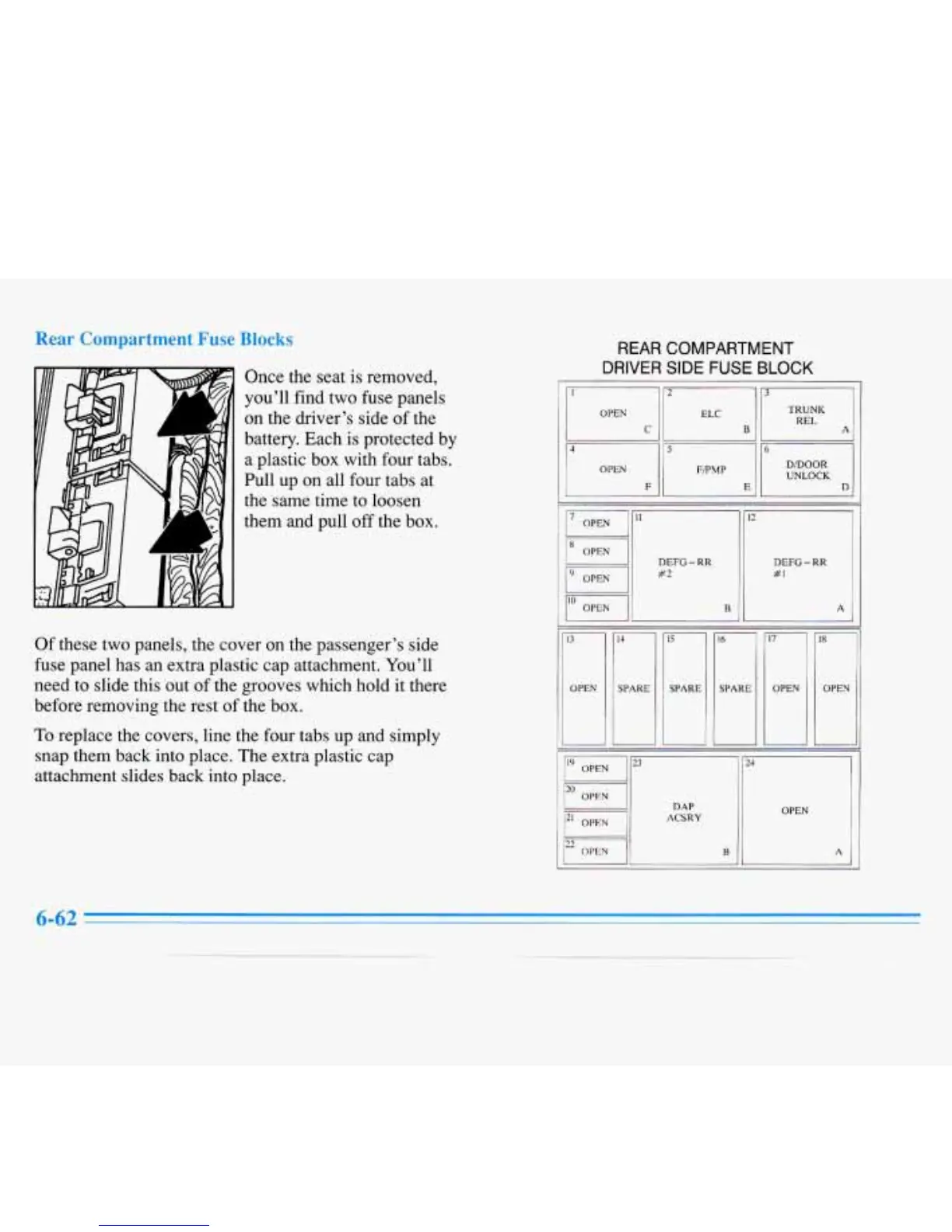

Rear
Compartment
Fuse
Blocks
Once the seat is removed,
you’ll find two fuse panels
on the driver’s side
of
the
battery. Each is protected by
a plastic box with four tabs.
Pull up on all four tabs at
the same time to loosen
them and pull off the box.
Of these two panels, the cover
on
the passenger’s side
fuse panel has an extra plastic cap attachment. You’ll
need to slide this out of the grooves which hold
it
there
before removing the rest
of
the box.
To replace the covers, line the four tabs up and simply
snap them back into place. The extra plastic cap
attachment slides back into place.
REAR COMPARTMENT
DRIVER
SIDE
FUSE
BLOCK
I
112
3
1
OPEN
1,
11
REL
TRUNK
c
B
A
1
OPEN
II
FPMP
I
D/DooR
UNLOCK
F
E
Dl
11
DEFG
-
RR
#2
B
12
DEFG-
RR
#i
A
ACSRY
DAP
OPEN
