Service Manual
LCD TV For 237-T11
Doc No. SM_237-T11_19Nov07
Version 1.2
Page 39/72
Company Confidential-DRAFT
that change next set.
8-2 ADC correction and Parameter adjustment
8-2.1 ADC correction

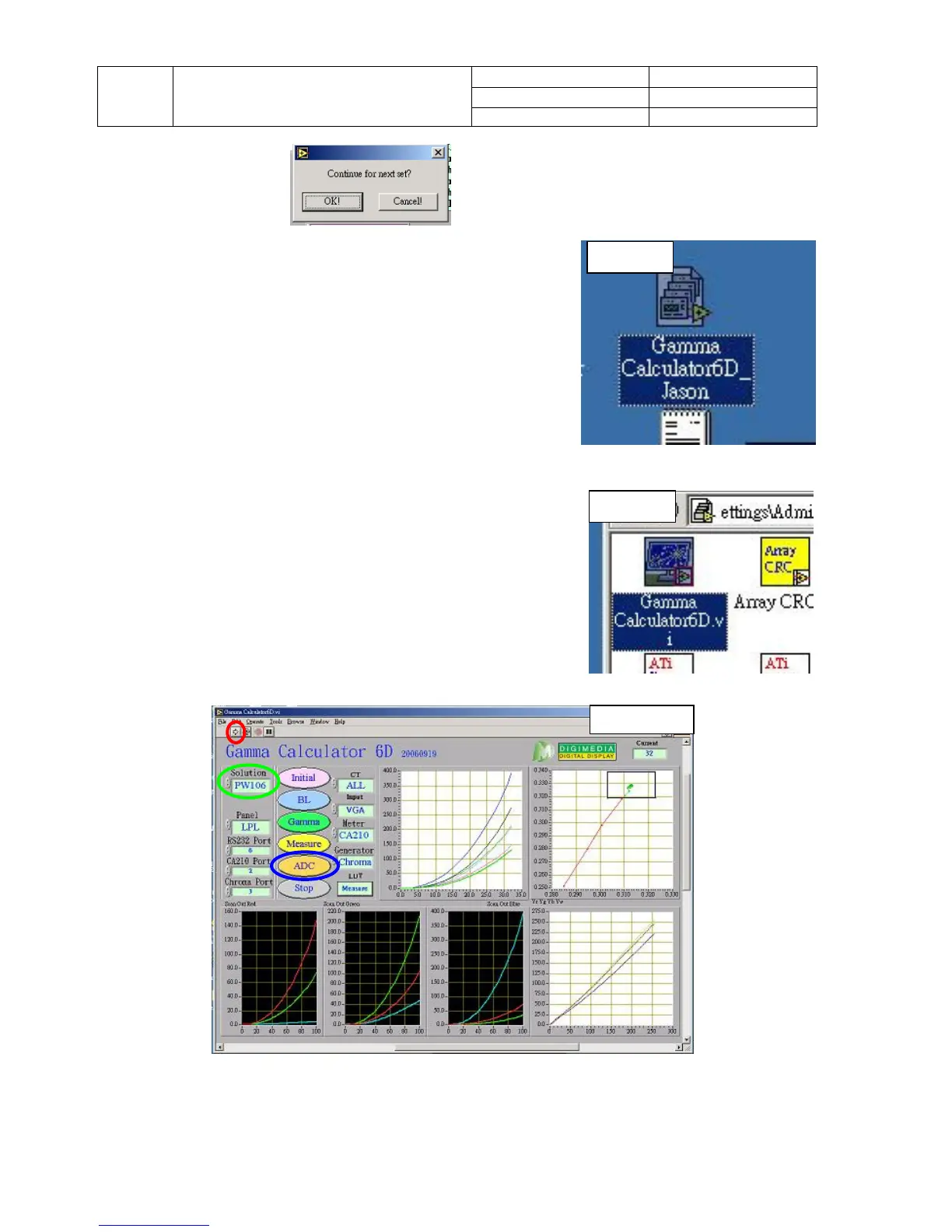

1. Click the icon on the desk "Gamma Calculator" (please see
Photo 1), and then Photo 2 would show up.
2. Click the icon "Gamma Calculator" of Photo 2, and then
Photo 3 would show up.
3. Connect "RS232" &"VGA" with TV.
4. click the "arrow mark" (which is circle by red) in Photo 3,
and then click the icon "ADC" also in Photo 3 blue circle.
5. The window will show up with the instruction about
component, and then connecting component instead of
VGA port.
6. The ADC process is completed once the window with the
message "OK" shows up.
Attention：
：：
：
1. Please make sure it's under "VGA Source" before
processing ADC.
2. Please pay attention to different solution for
ATI/MTK8202/PW106 as Photo 3 green circle.
3. Please make sure the set-up for RS232 is correct.
ADC correction and Parameter adjustment tools：
1. PC（Notebook）
2. CHROMA 2325
3. MINOLTA CA-210
4. Software（Gamma Calculator6A_Jason.exe）
