of a refrigerant release. Consult manufacturer if in doubt. The recovered refrigerant shall be returned
to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note ar-
ranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or
compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to
make certain that ammable refrigerant does not remain within the lubricant. The evacuation process
shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the com-
pressor body shall be employed to accelerate this process. When oil is drained from a system, it shall
be carried out safely.
1 - DESCRIPTION OF THE APPLIANCE
1.1 - LIST OF THE COMPONENTS SUPPLIED (Fig.5)
The appliance is packaged singularly in a cardboard packaging.
The packaging can be transported by hand by two operators or loaded on a forklift.
Store the packaging singularly; do not stack it.
1. Flexible hose for air expulsion (cooling and
automatic mode)
2. Terminal for exible hose machine side
3. Terminal for exible hose for xed / slider
installation
4. SLIDER for installation on sliding / roller window
5. Terminal for slider / window installation
6. Flange for xed installation
7. Condensation discharge pipe
(dehumidication mode only)
8. Seal for Slider installation
9. Seal for Slider installation
10. Plugs for xed installation ange
11. Remote control
12. Manual

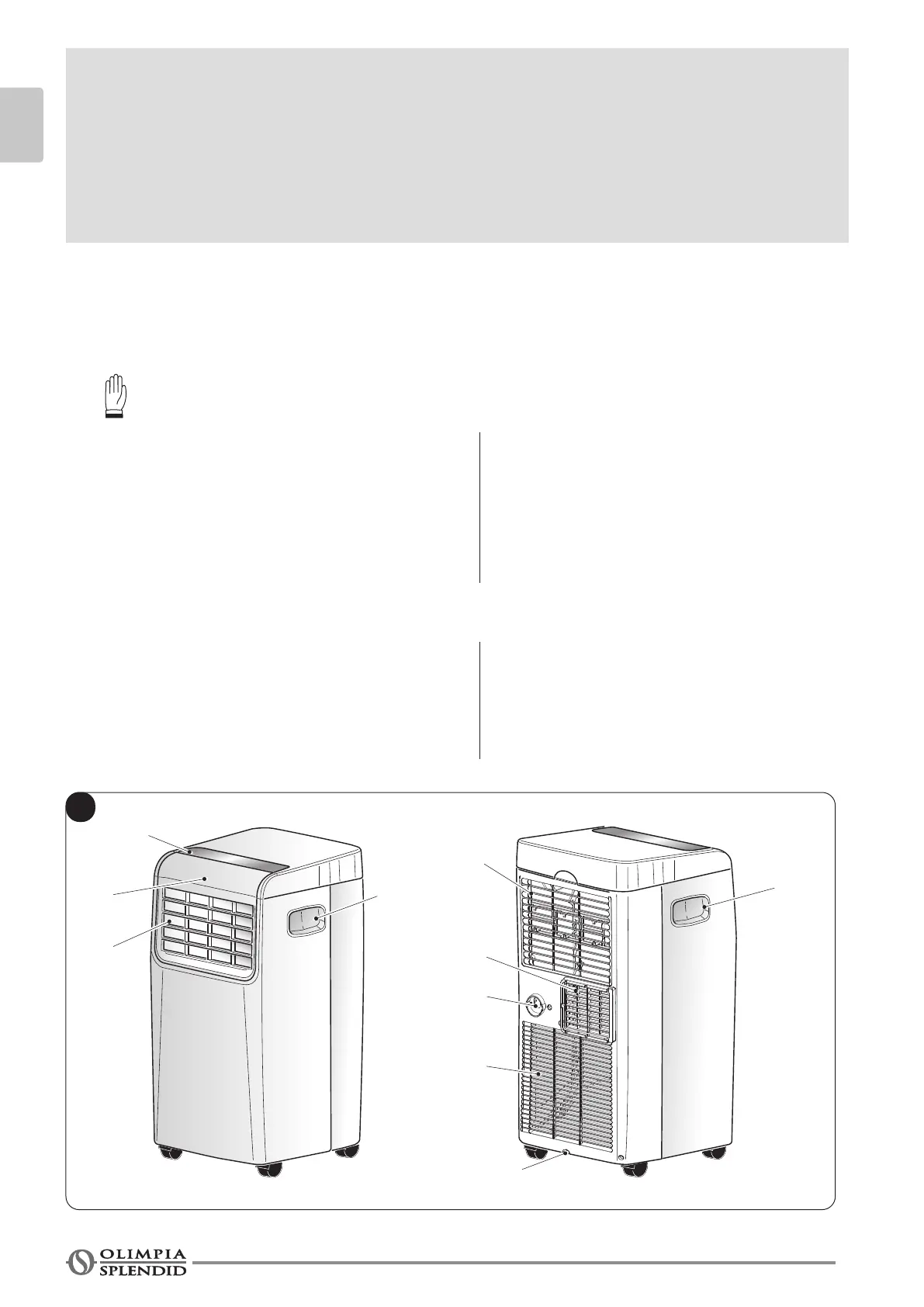

1.2 - IDENTIFICATION OF THE MAIN COMPONENTS (Fig.A)
21. Control panel
22. Air outlet grille
23. Air lter with grille
24. Plug for draining condensation water (in case
of transport, maintenance or excessive build-
up of water)
25. Air inlet
26. Air outlet
27. Handle for moving
28. Cap for condensate drain (dehumidication
mode only)
29. IR remote control receiver
