Olis 72/02FRG - Adjusting Primary Air

23.3.2005 Rev. 1.0
Adjustment instructions
27
6.1.2 Adjusting primary air
To adjust primary air (item 31 in Fig. 15), loosen the screw shown in item 32 and move
the sleeve until you obtain the values indicated in "Table 2: burner specifications".

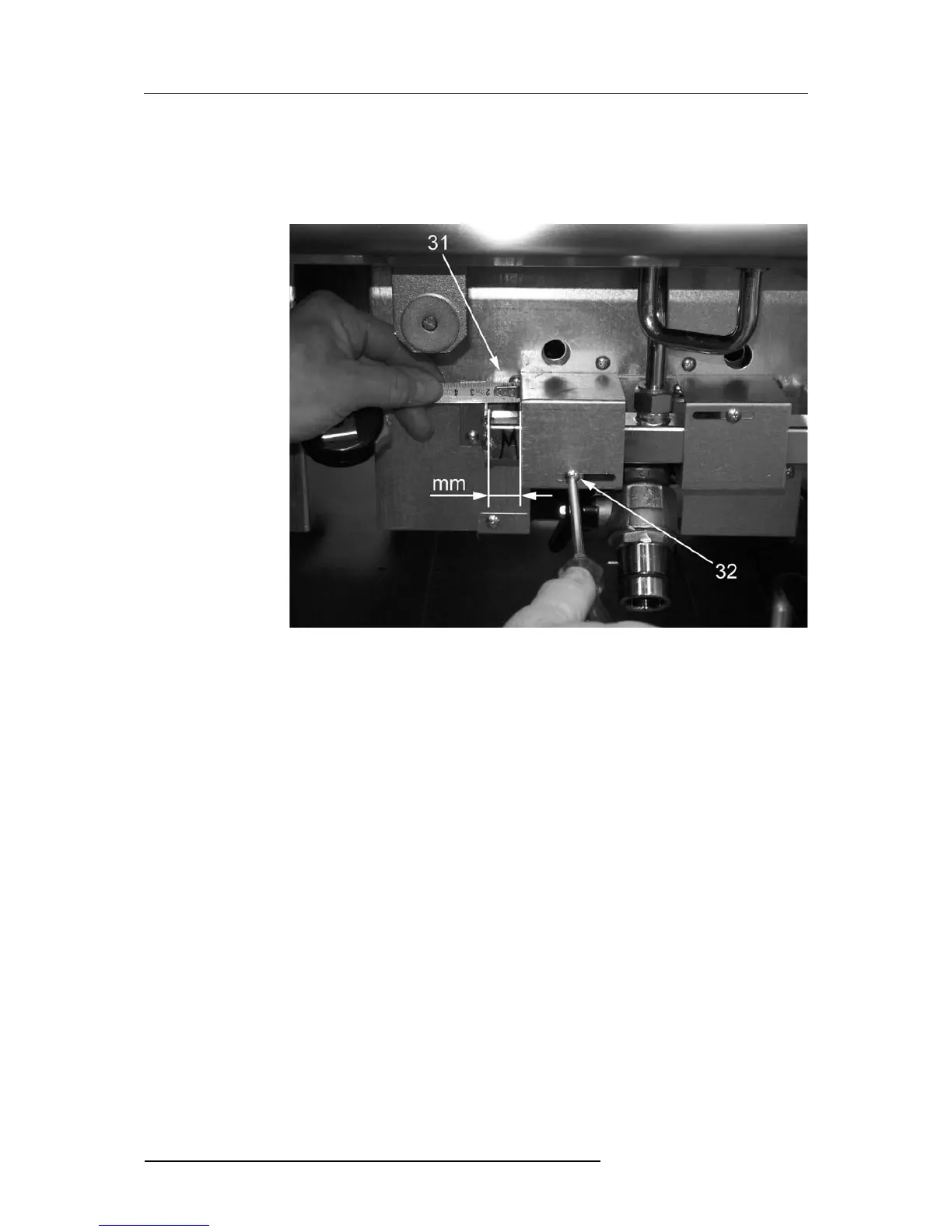

Fig. 15
31. Primary air distance
32. Primary air adjusting screw
