23.3.2005 Rev. 1.0
Installation
19
5.8.1 Checking supply pressure after installation
Gas supply pressure can be measured with a liquid-filled pressure gauge (for example, a
U-shaped pressure gauge, minimum subdivision 0.1 mbar) or a digital pressure gauge.
Proceed as follows:
• remove the knobs;
• loosen all screws on the guide collars (item 22 in Fig. 8);
• remove the screws shown on item 23 from the control panel;

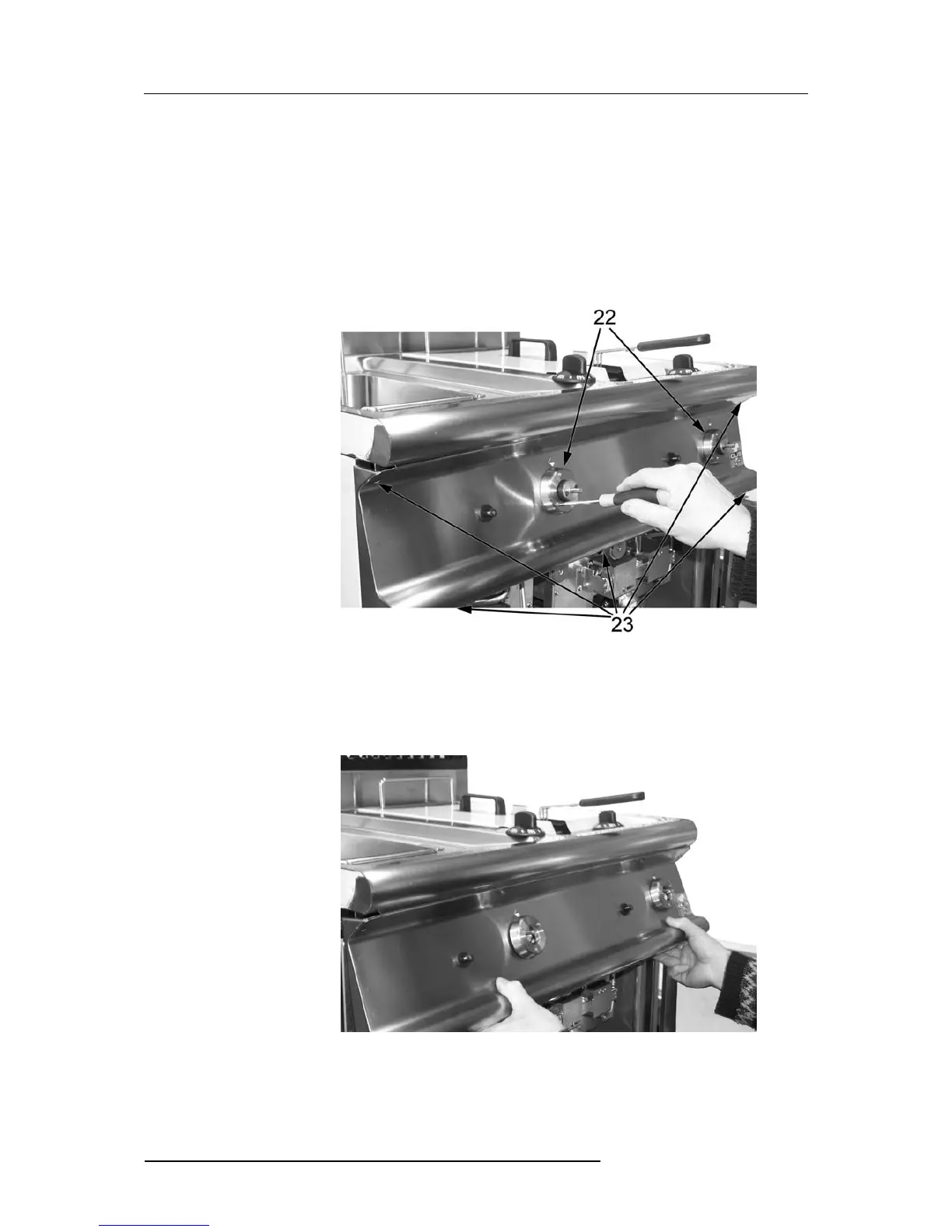

Fig. 8
22. Guide collar
23. Control panel fixing screws
• remove the control panel as shown in Fig. 9 below;
Fig. 9
