Adjustment instructions
29
4. replace the pilot burner nozzle with a suitable one by unscrewing the nut shown as
item 35 in Fig. 18 and using a fixed spanner (wrench) to counterbalance torsion;

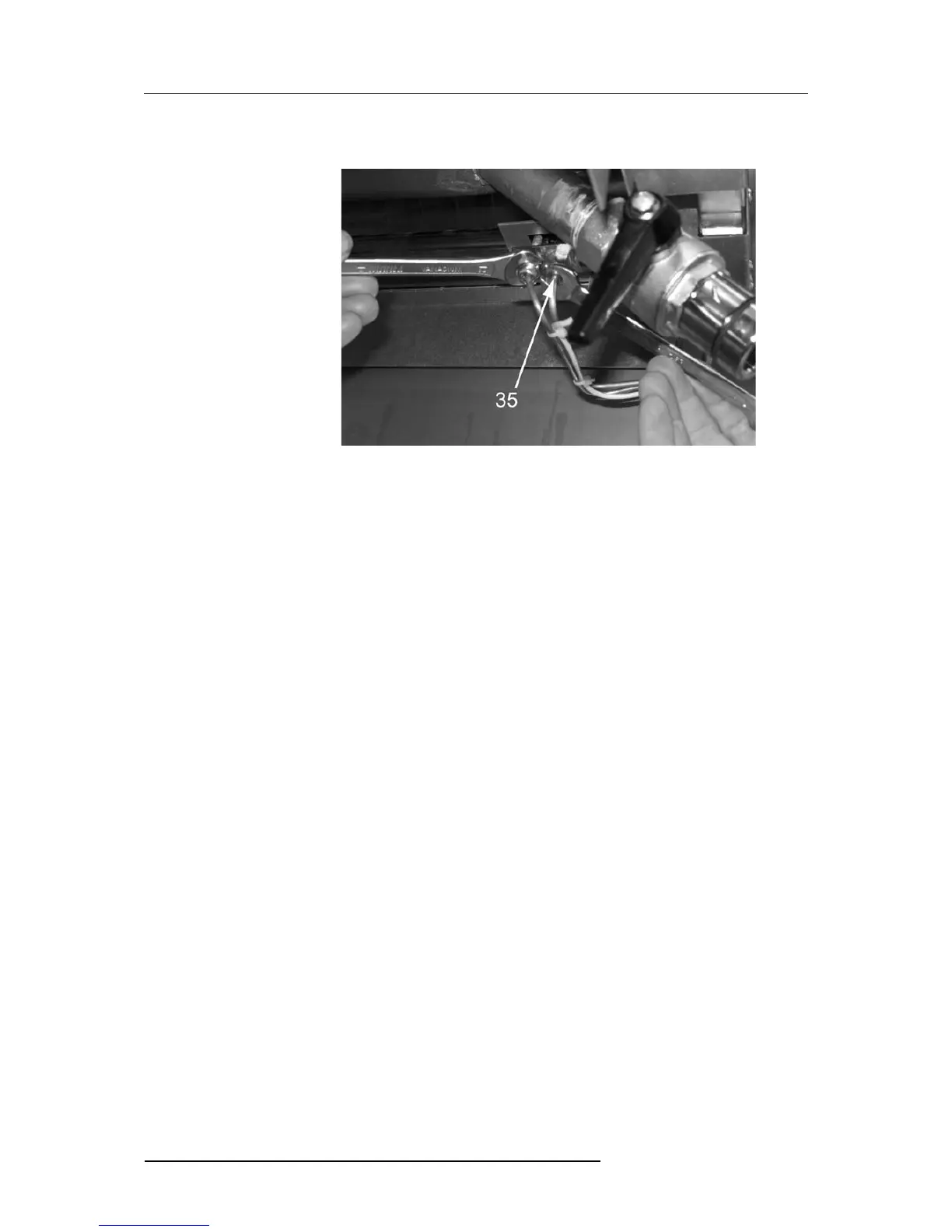

Fig. 18
35. Pilot burner nozzle
When nozzle replacement is completed, check for proper operation of the appliance (see
chapter "Checking operation" at the end of the previous section "Installation").
