732-R FRONT LOAD SLICER
0732S20024 6-9
Replacing The Gas Spring (Continued)
NOTE
THE CLIP IS NOT REUSUABLE; A NEW ONE WILL BE REQUIRED.

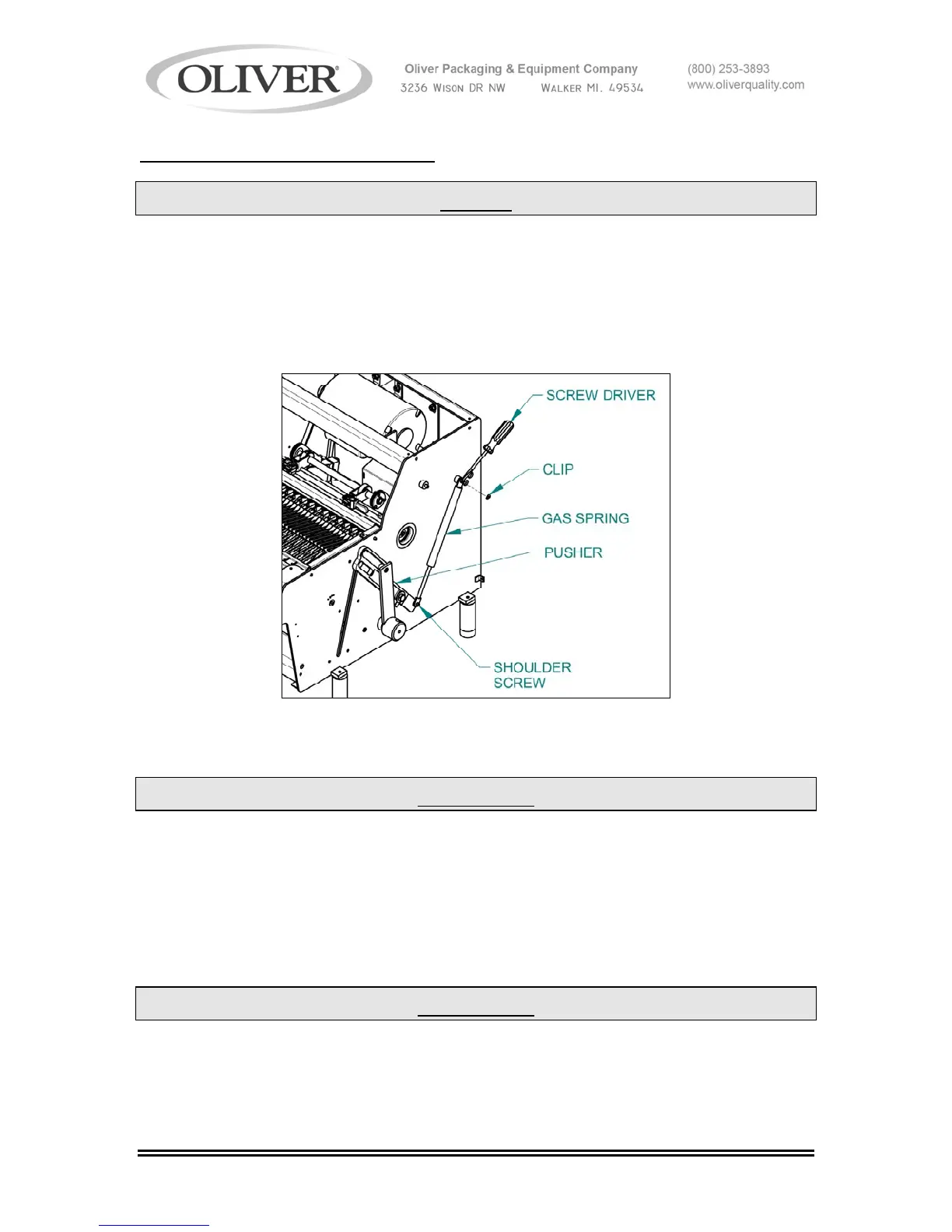

After the clip is removed, the gas spring can then be pried off with a screwdriver, use
care noting the above warning. See the next illustration for additional information. After
the spring is off the pin the shoulder screw securing the lower end of the spring can be
removed freeing the spring.
Install a gas spring by first attaching the lower end of the spring to the pusher arm with
the shoulder screw.
CAUTION
USE A LOCKING FLUID, SUCH AS LOC-TITE ®, TO PREVENT THE
SCREW FROM LOOSENING BECAUSE OF VIBRATION.
Using two people, grasp the spring as shown in the next illustration and slide the gas
spring over the same upper pin that the old gas spring was removed from. See the
caution statement below. After this is complete install the new clip and replace all of the
covers. Lastly reinstall the hand lever.
CAUTION
CARE MUST BE USED WHEN WORKING WITH THE GAS SPRING.
ALWAYS PUSH STRAIGHT DOWN OR SPRING DAMAGE MAY OCCUR.
To Next Page
