2-4 d-COLOR MF3100
Installation location and environment
2
2.2
2.2 Installation location and environment

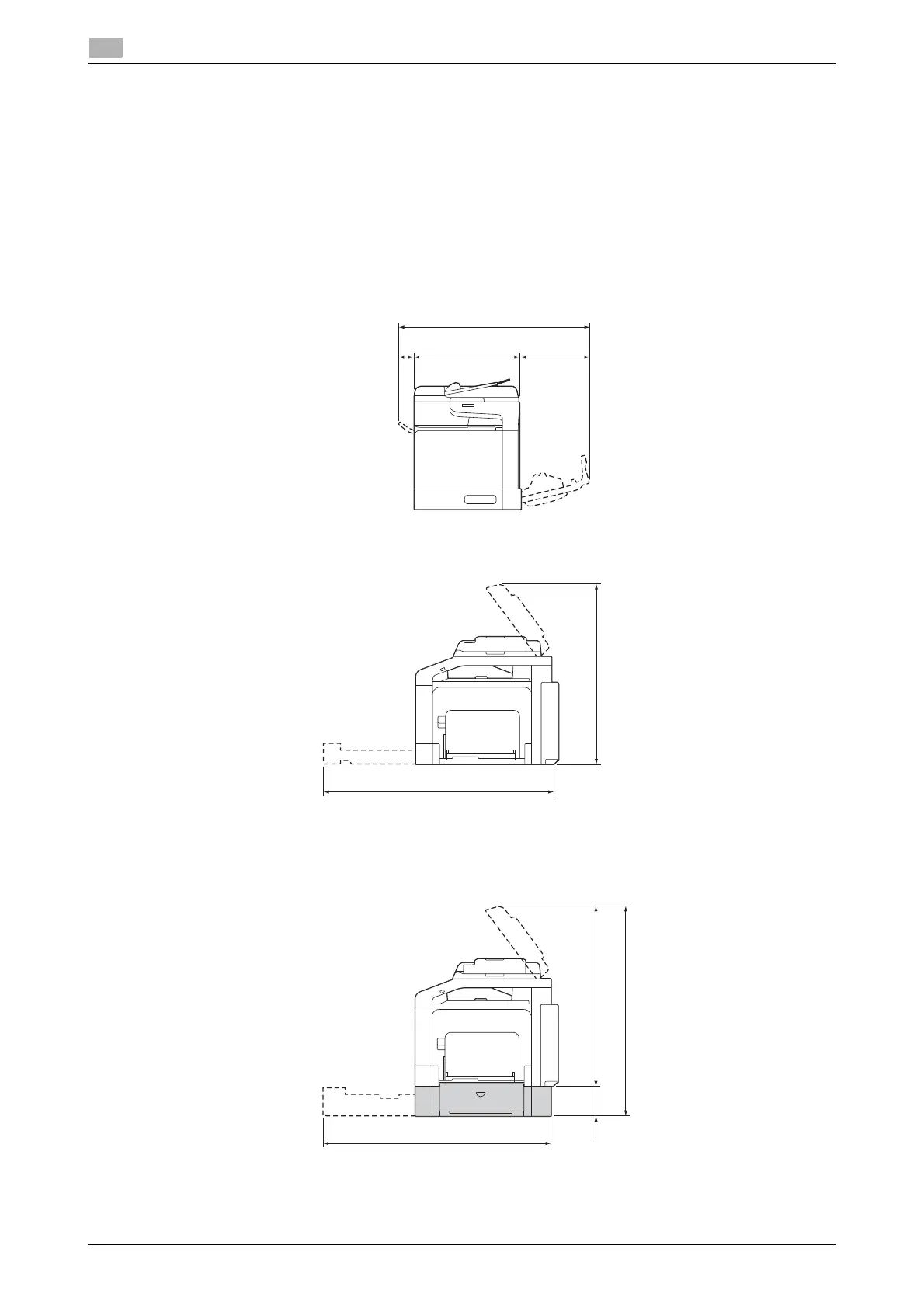

2.2.1 Installation location
To simplify tasks such as operations, consumable replacement, or inspection, create an installation environ-
ment as shown below.
Unit: Inch (mm)
Front view
Right view
Right view (with optional devices installed)
The hatched parts indicate optional devices in this figure.
28-7/16(723)
10-5/8
(270.5)
1-7/8
(47.5)
15-15/16
(405)
34-13/16(885)
28-11/16(729)
35-1/12(902)
33-5/16(846)
28-11/16(729)
4-5/8
(117)
