7.1 Names and functions of the Control Panel keys
7
7 Control Panel
7.1 Names and functions of the Control Panel keys

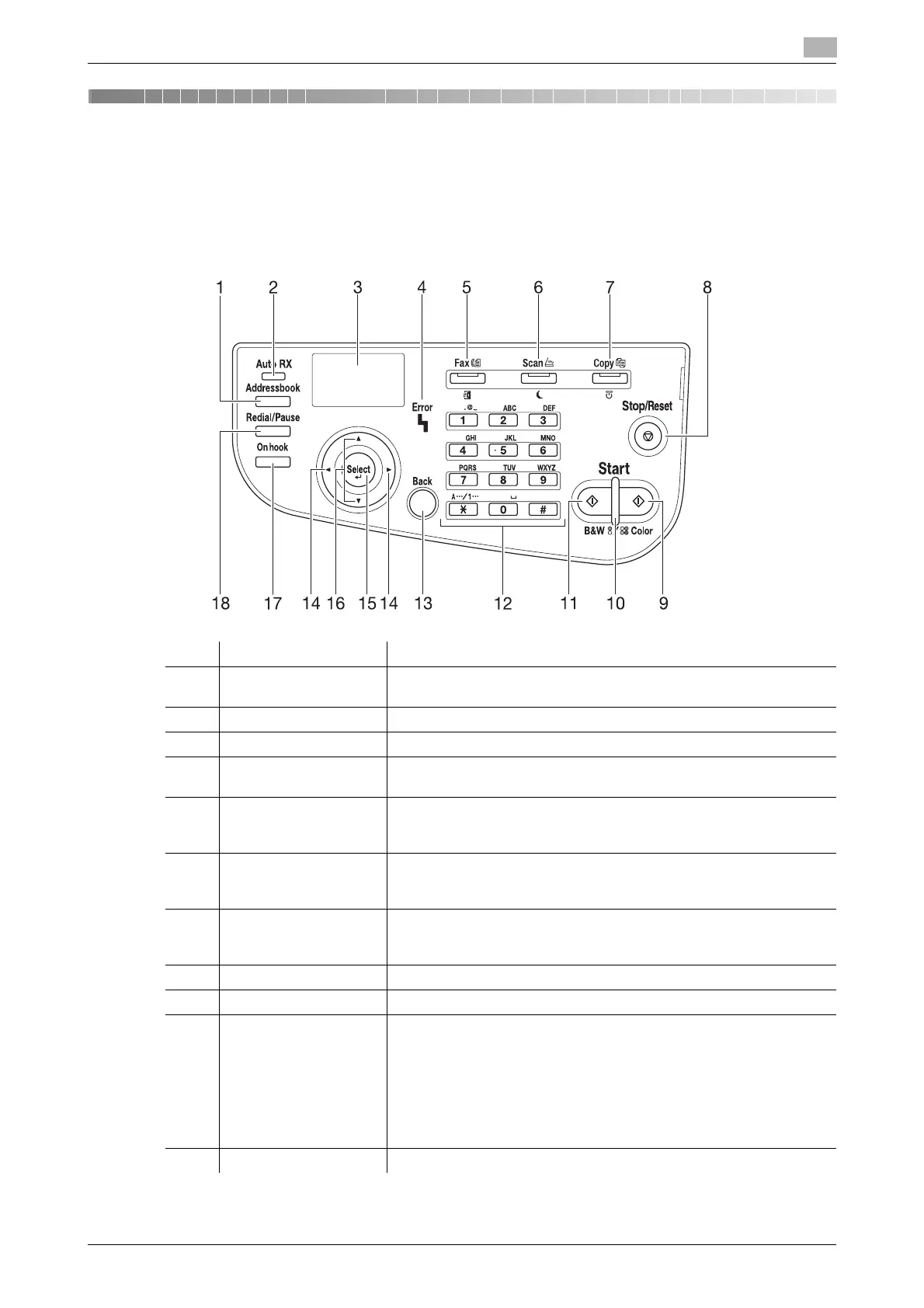

The Control Panel on the top of this machine allows you to directly operate this machine. The Message Win-
dow displays a message that indicates the status of this machine or the required operations.
No. Name Description
1 Addressbook Recalls the registered target destination (Favorites, Address Book,
Group, or Program).
2 Auto RX Indicator Lights up when the fax receiving mode is set to Auto RX.
3 Message Window Displays Utility items or messages.
4 Error Indicator Lights up when an error has occurred. It also flashes when a service
call has occurred.
5 Fax/Access • Shifts to Fax mode. Lights up green in Fax mode.
• If user authentication is enabled on this machine, hold down this
key to log in or log out. For details, refer to page 8-3.
6 Scan/Sleep • Shifts to Scan mode. Lights up green in Scan mode.
• Holding down this key shifts to Sleep mode. For details, refer to
page 4-4.
7 Copy/Power • Shifts to Copy mode. Lights up green in Copy mode.
• Holding down this key shifts to ErP Auto Power Off mode. For de-
tails, refer to page 4-4.
8 Stop/Reset Cancels a changed setting or stops a function.
9 Start (Color) Starts copying, scanning, or sending a fax in color.
10 Start Indicator Indicates the status of this machine via the lamp color, flashing, or a
lamp lighting up.
• Lights up blue: This machine is ready to begin operating.
• Flashes blue: This machine is in Power Save mode, but it can re-
ceive faxes or execute print jobs.
• Flashes orange: This machine is not ready to begin operating be-
cause it is in Power Save mode.
• Lights up orange: This machine is not ready to begin operating.
11 Start (B&W) Starts copying, scanning, or sending a fax in black and white.
