8-38

Troubleshooting > Clearing Paper Jams

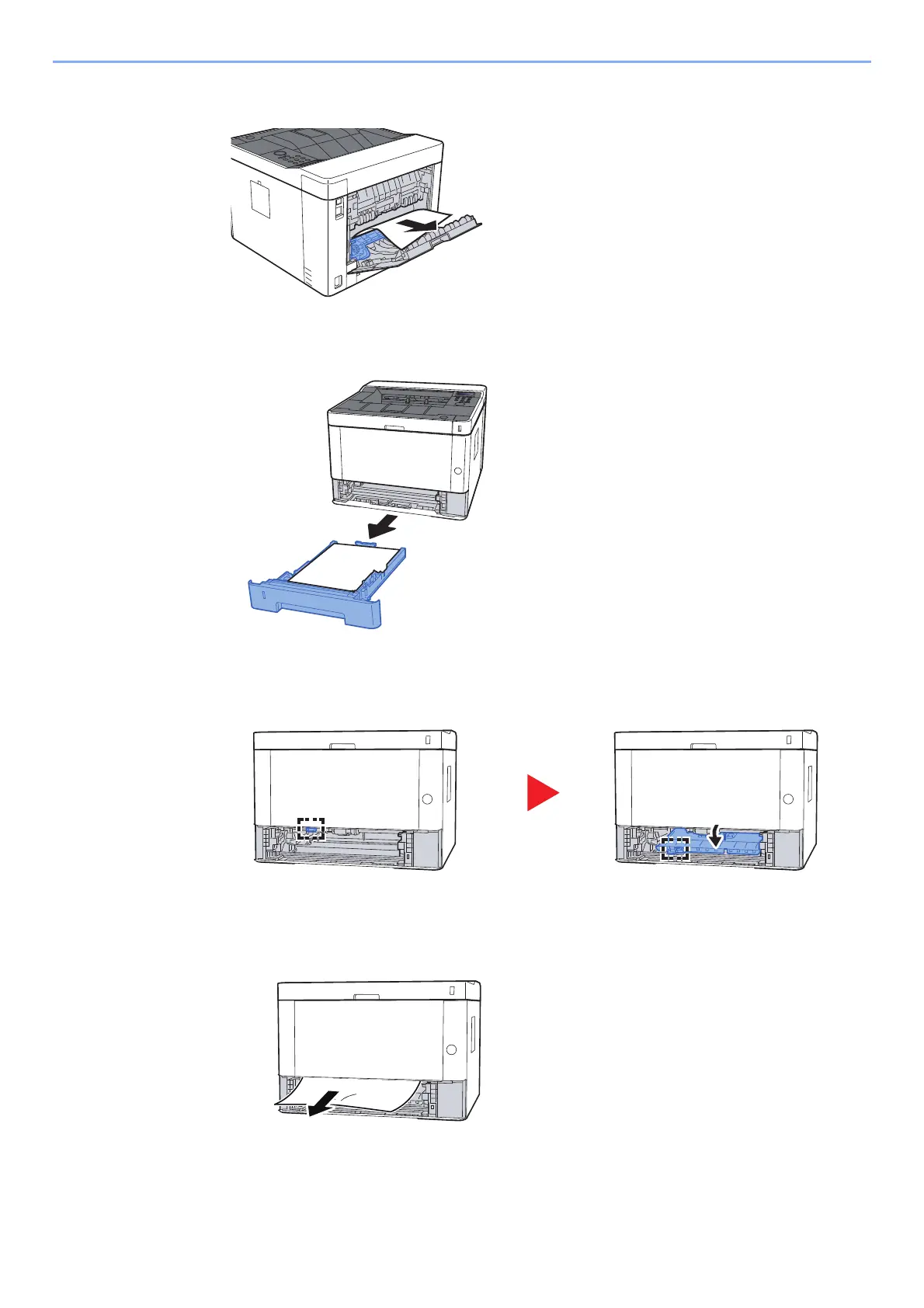

Remove any jammed paper.

Pull Cassette 1 out toward you until it stops.

Open Feed Cover.

Remove any jammed paper.
