CH10/CH20 C. DISASSEMBLY AND ASSEMBLY PROCEDURES
C-7
3. Stage

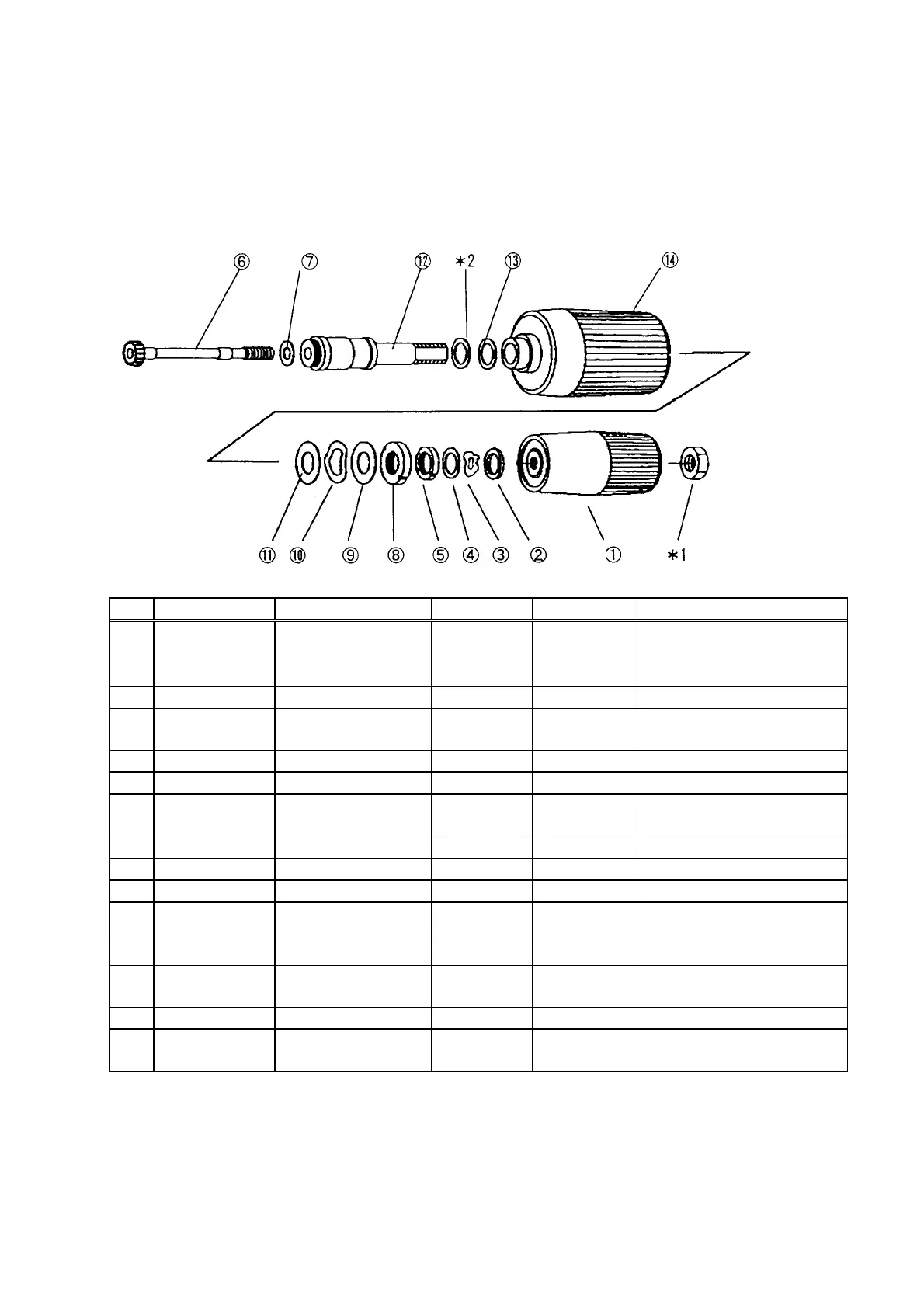

3-1 X/Y-knob ass’y
No. Parts name Screw Grease Adhesive Remarks
•
X-KNOB 6N4SA (*1) OT1131 Apply adhesive on the nut.
Rotation force: 0.4±0.1N
{50±10g}
‚
WASHER OT2008
ƒ
SPRING
WASHER
OT2008
„
WASHER OT2008
…
NUT
†
PINION OT2008 Apply grease on the fitting
surface with Y-knob ‡M.
‡
WASHER OT2008
ˆ
NUT
‰
WASHER OT2008
±
10
SPRING
WASHER
OT2008
±
11
WASHER OT2008
±
12
METAL OT1028 Apply adhesive on the fitting
screw of body•. (See C-9.)
±
13
WASHER NW7.2-412BO (*2) OT2008
±
14
Y-KNOB Rotation force: 1.1 - 1.2N
{110 - 120g}
