Olympus CH10 - Observation Tube; Sleeves and Cover

CH10/CH20 C. DISASSEMBLY AND ASSEMBLY PROCEDURES
C-11

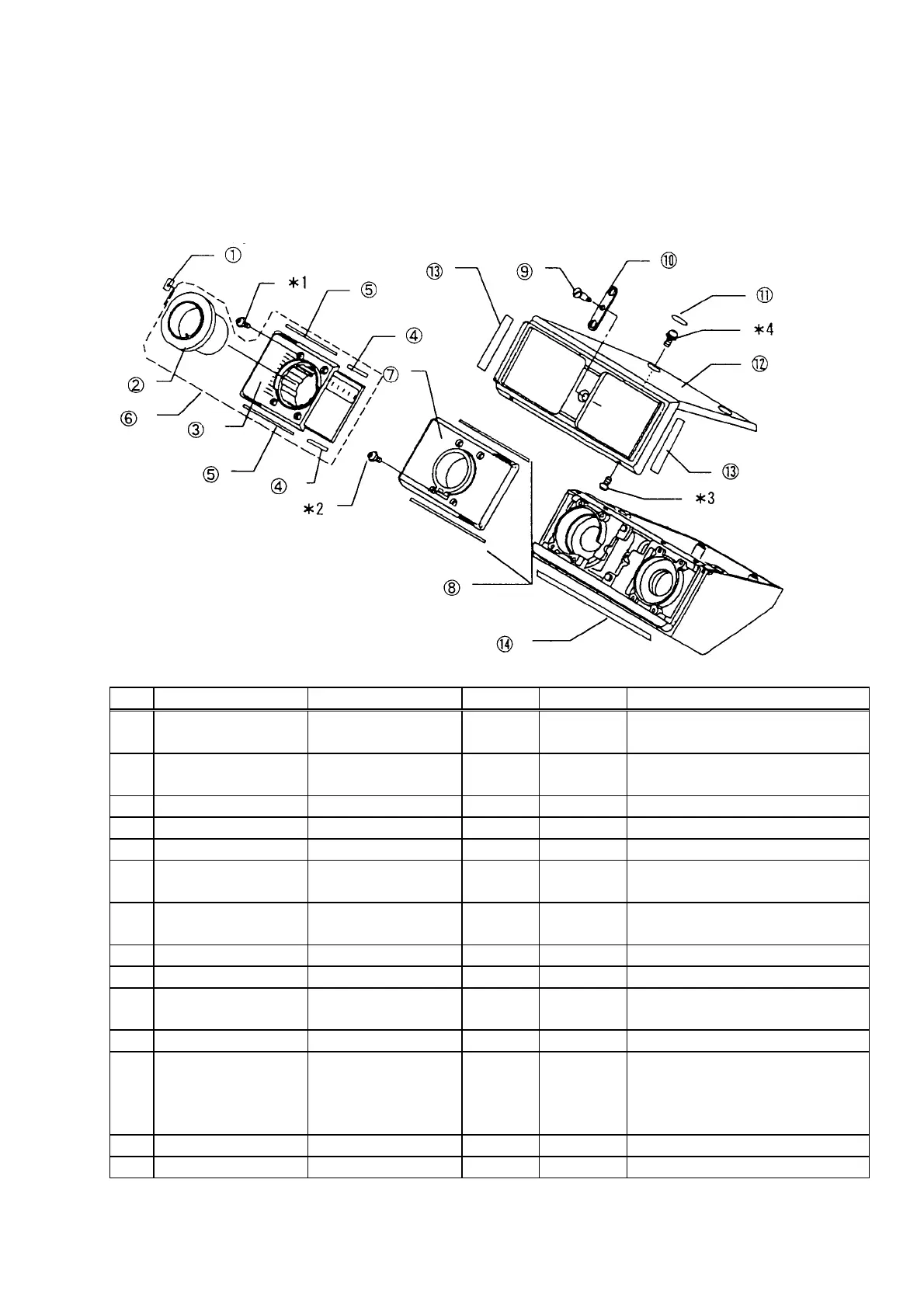

4. Observation Tube
4-1 Sleeves and cover
No. Parts name Screw Grease Adhesive Remarks
•
DIVISION PLATE Parfocality adjustment (See
Repair procedure, D-4.)
‚
SOCKET Apply grease on the sliding
surface of socket‚.
ƒ
L-SLEEVE OT1892
„
SEAL (2 pcs.)
…
SEAL (2 pcs.)
†
HELICOID ASS’Y CUKK2X6SB (*1)
4 pcs.
‡
R-SLEEVE CUKK2X6SB (*2)
4 pcs.
ˆ
SEAL (2 pcs.)
‰
SHAFT
±
10
LEVER OT2008 Apply grease in the inside
diameters of three holes.
±
11
SEAL (2 pcs.)
±
12
COVER 3PUK2X4SA (*3) 2
pcs.
CUKSK3X6SA
(*4) 2 pcs.
±
13
SEAL (2 pcs.)
±
14
SEAL
