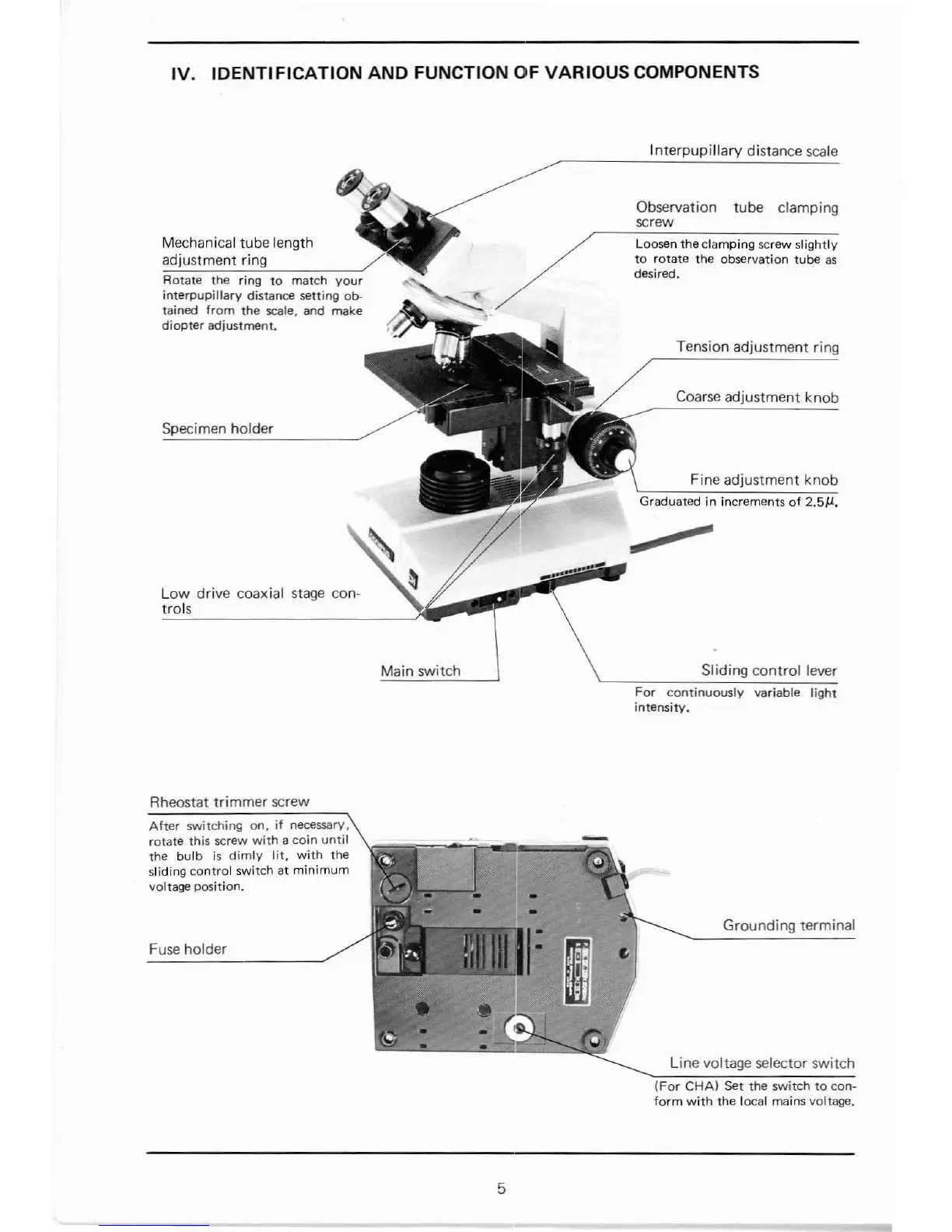

IV. IDENTIFICATION AND FUNCTION OF VARIOUS COMPONENTS
Interpupillary distance scale
Mechanical tube length
adjustment ring
Rotate the ring to match your
interpupillary distance setting ob-
tained from the scale. and make
diopter adjustment.
Specimen holder
Low drive coaxial stage con~
trois
Rheostat trimmer screw
Main switch
.... <O'!'! ..............
Observation tube clamping
screw
Loosen the clamping screw slightly
to rotate the observation tube as
desired.
Tension adjustment ring
Coarse adjustment knob
Fine adjustment knob
Graduated in increments of 2.5J.L •
....
Sliding control lever
For continuously variable light
intensitY.
After switching on, if necessary.
rotate this screw with a coin until
the bulb is dimly lit, with the
sliding control switch at minimum
voltage position.
Fuse holder
5
Grounding terminal
Line voltage selector switch
(For CHA) Set the switch to con-
form with the local mains voltage.
