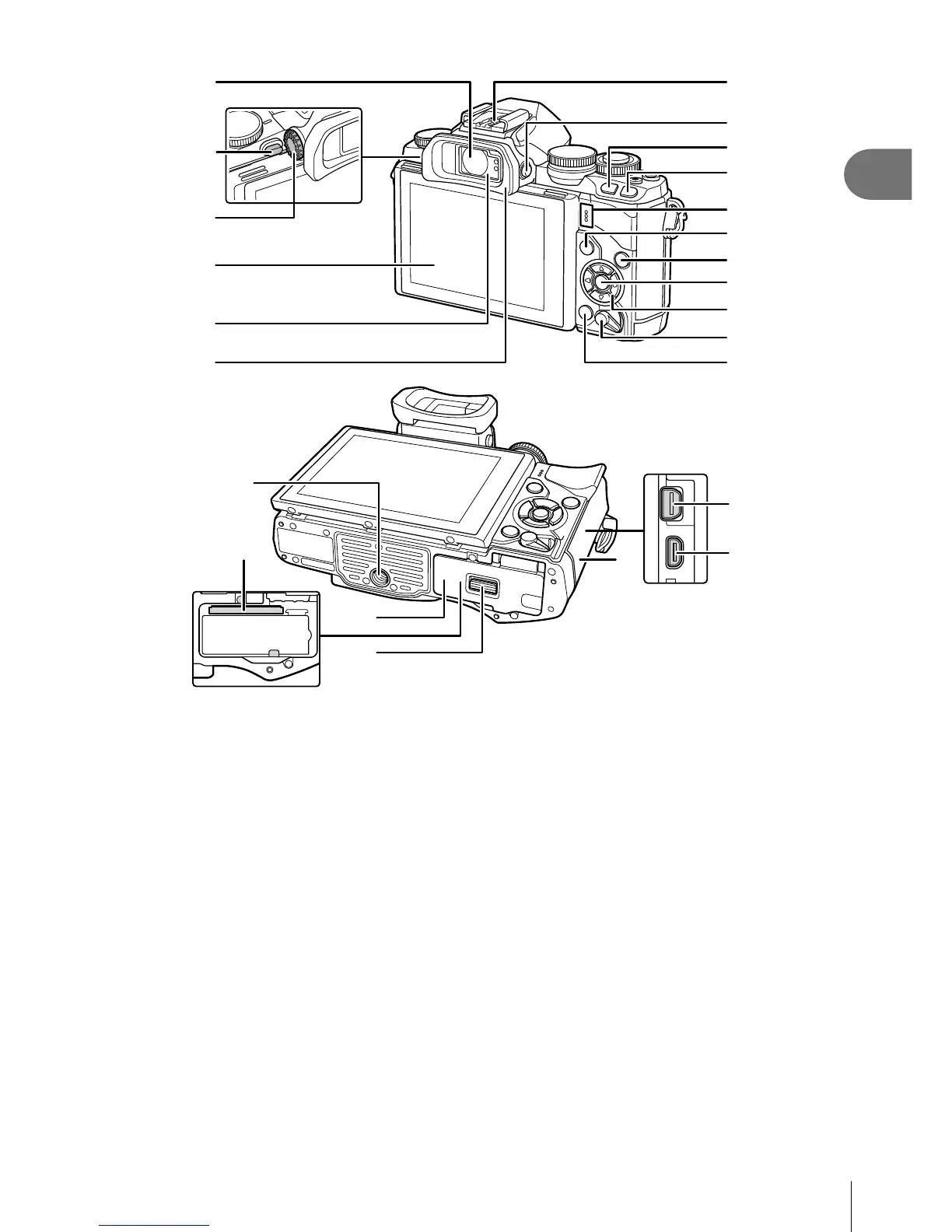

Preparing the camera and fl ow of operations
1
4
5
6
7
9
0
a
c
b
8
d
e
f
g
1
3
2
k
l
m
n
i
h
j
1 Viewfi nder ..........................P. 18, 19, 36
2 Flash switch ....................................P. 68
3 Diopter adjustment dial ...................P. 19
4 Monitor (Touch screen)
................................P. 15, 28, 35, 37, 55
5 Eye sensor
6 Eyecup ..........................................P. 128
7 Hot shoe .......................................P. 125
8 u (LV) button ..............................P. 18
9 Fn1 button......................................P. 51
0 q (Playback) button ................P. 32, 56
a Speaker
b MENU button .................................P. 74
c INFO button .............................P. 38, 55
d Q button ..................................P. 31, 74
e Arrow pad* ......................................P. 32
f ON/OFF lever ................................P. 15
g  (Erase) button ............................P. 34
h Tripod socket
i Card slot .........................................P. 13
j Battery/card compartment cover.....P. 12
k Battery/card compartment lock .......P. 12
l Connector cover
m Multi-connector ............. P. 101, 111, 114
n HDMI connector (Type D) .............P. 101
* In this manual, the FGHI icons represent operations performed using the arrow
pad.
