Preparing the camera and fl ow of operations
1
1

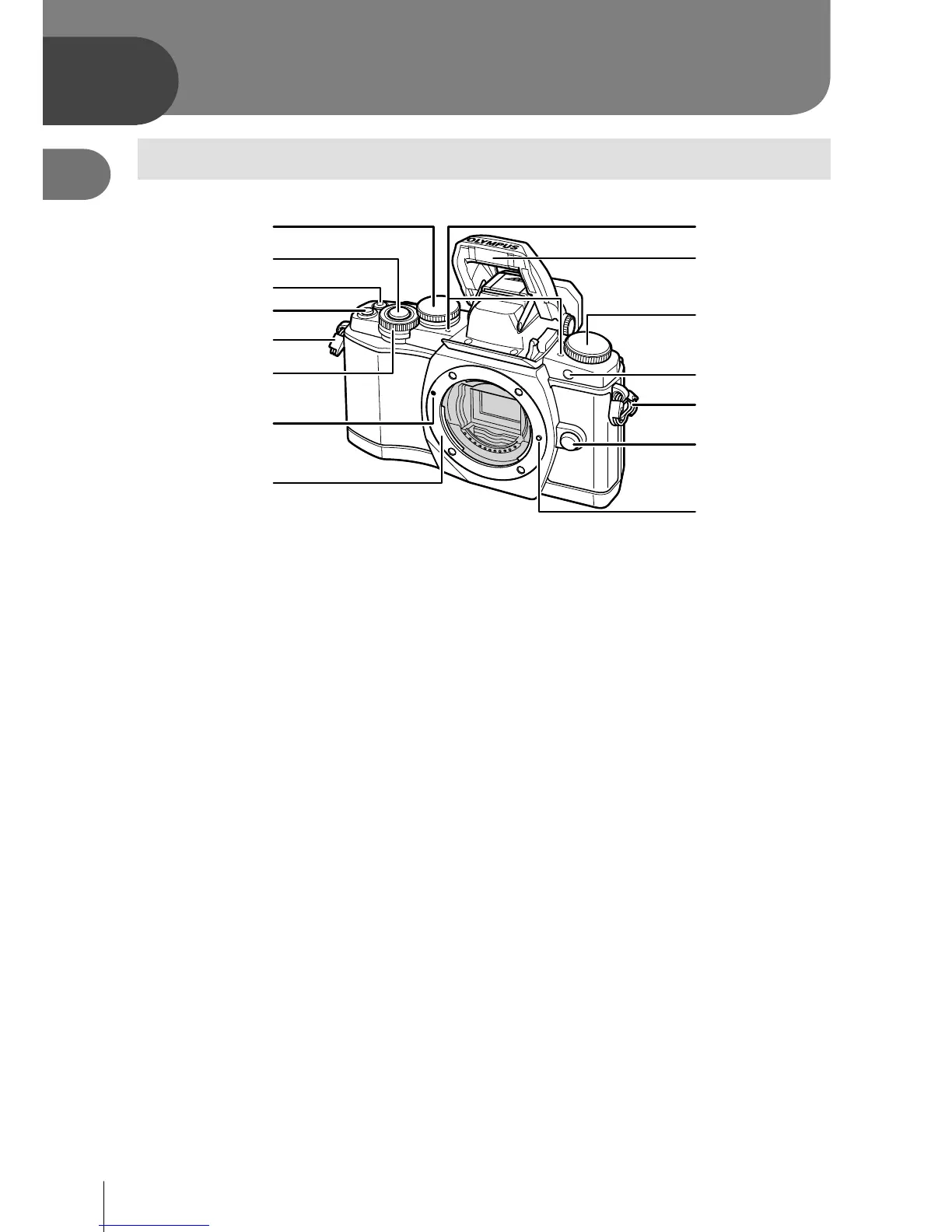

Names of parts
1
2
3
5
6
4
8
d
c
5
b
9
a
0
7
1 Rear dial* (o)
.......................P. 23, 39 – 42, 54, 63, 105
2 Shutter button .................................P. 20
3 R (Movie)/H button ........P. 21, 99/P. 34
4 Fn2 button................................P. 23, 50
5 Strap eyelet.......................................P. 9
6 Front dial* (r) ...................P. 32, 39 – 42
7 Lens attachment mark ....................P. 14
8 Mount (Remove the body cap before
attaching the lens.)
9 Stereo microphone .............P. 58, 73, 87
0 Internal fl ash ...................................P. 68
a Mode dial ........................................P. 17
b Self-timer lamp/AF illuminator
...............................................P. 65/P. 90
c Lens release button ........................P. 14
d Lens lock pin
* In this manual, the r and o icons represent operations performed using the front dial
and rear dial.
