Olympus E-PL2 User Manual

8 EN
Basic guide

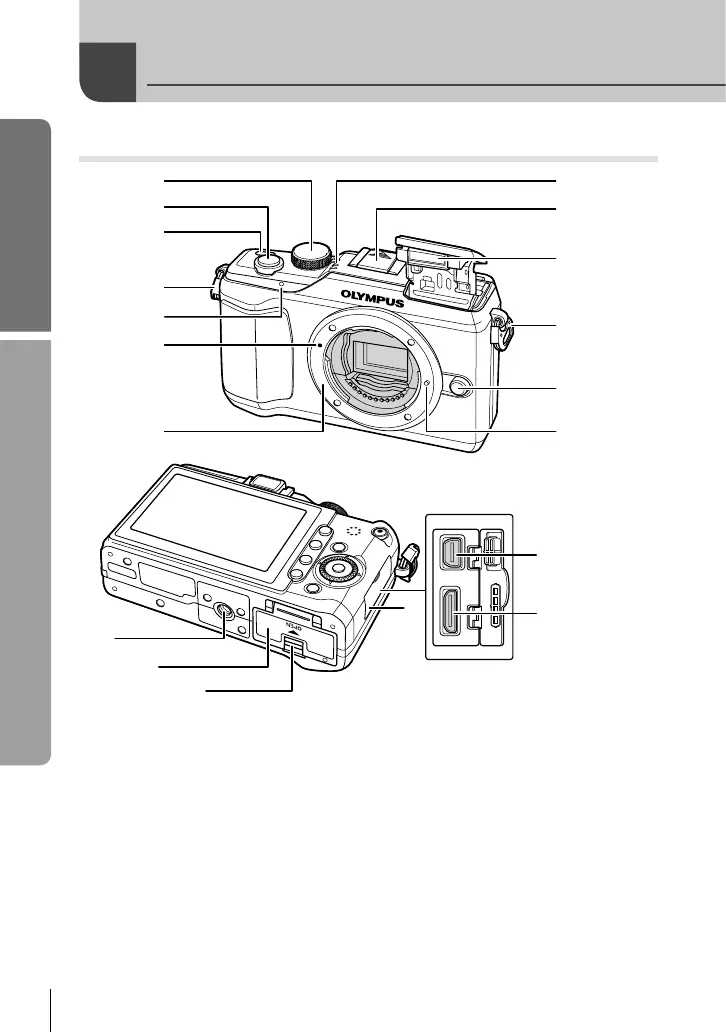

Names of parts and functions
Camera
1
2
3
4
5
7
6
b
9
a
0
4
8
f
c
d
e
g
h
1 Mode dial................................P. 6, 10
2 Shutter button .......... P. 11, 12, 35, 88
3 ON/OFF button ........................... P. 6
4 Strap eyelet ..................................P. 2
5 Self-timer lamp ...........................P. 46
6 Lens attachment mark .................P. 5
7 Mount (Remove the body cap before
attaching the lens.)
8 Microphone .......................... P. 59, 65
9 Hot shoe cover
0 Built-in fl ash................................P. 56
a Lens release button .....................P. 5
b Lens lock pin
c Tripod socket
d Battery/card compartment cover
.....................................................P. 3
e Battery/card compartment lock .... P. 3
f Connector cover
g Multi-connector...............P. 66, 70, 74
h HDMI mini-connector (type C)....P. 66
Names of parts

Olympus E-PL2 Specifications

General

Sensor Type	Live MOS
Sensor Size	17.3 x 13.0 mm
Effective Pixels	12.3 megapixels
Image Processor	TruePic V
Screen Size	3.0 inches
Screen Resolution	460, 000 dots
Video Resolution	1280 x 720 (HD)
Storage Types	SD/SDHC/SDXC
Camera Type	Mirrorless
Image Stabilization	Sensor-shift
Continuous Shooting	3 fps
Lens Mount	Micro Four Thirds
Autofocus System	Contrast-detect AF
Battery Type	BLS-5
Shutter Speed	60 - 1/4000 sec
