Olympus E-PL7 - Preparing the camera and flow of operations

10 EN
Preparing the camera and fl ow of operations
1
1

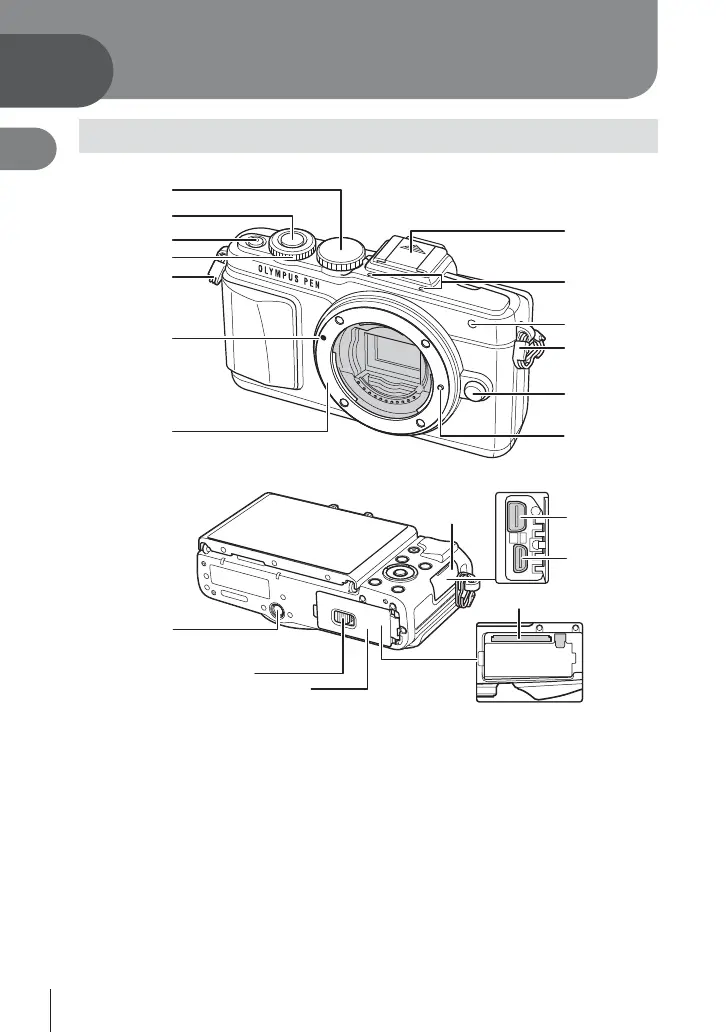

Names of parts
1
2
3
4
5
6
7
5
8
9
0
a
b
d
i
c
e
g
f
h
1 Mode dial ........................................P. 17
2 Shutter button .................................P. 18
3 ON/OFF button ..............................P. 15
4 Control dial* P ...............................P. 26
5 Strap eyelet.......................................P. 9
6 Lens attachment mark ....................P. 14
7 Mount (Remove the body cap before
attaching the lens.)
8 Hot shoe cover
9 Stereo microphone .............P. 54, 70, 83
0 Self-timer lamp/AF illuminator
...............................................P. 61/P. 85
a Lens release button ........................P. 14
b Lens lock pin
c Tripod socket
d Battery/card compartment lock .......P. 12
e Battery/card compartment cover.....P. 12
f Connector cover
g Multi-connector ...............P. 96, 108, 111
h HDMI connector (Type D) ...............P. 96
i Card slot .........................................P. 13
* In this manual, the P icon represent operations performed using the control dial.
