3-7
OEP-3 V1 (UC)

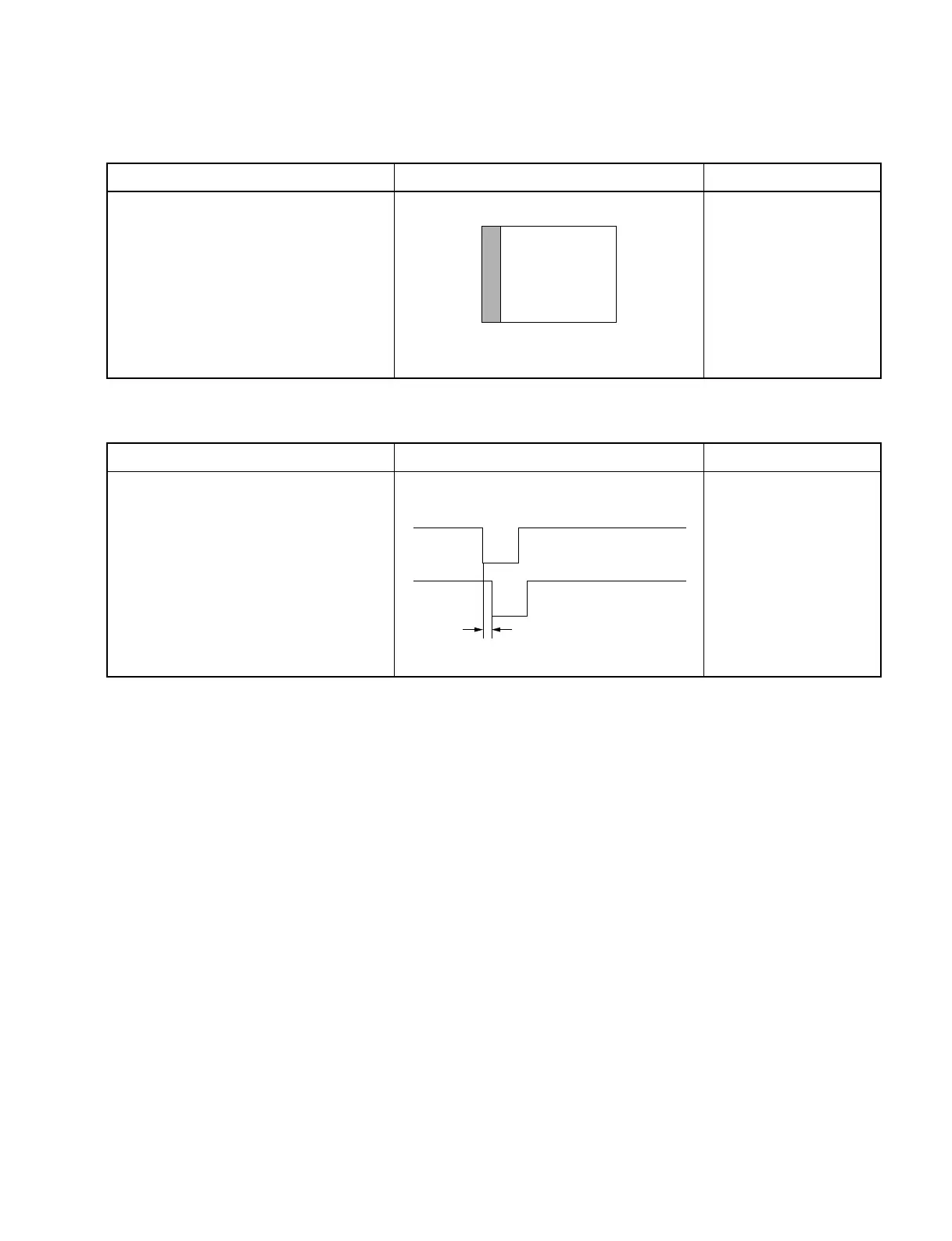

8. VBS Y adjustment
Conditions for adjustment
1. VA ADJUST MODE
2. INPUT SELECT: VIDEO
SIGNAL: COLOR BAR
3. AGC: OFF
4. NTSC/PAL: NTSC
Spec.
Monitor
Adjust so that the white in the diagonally
striped portion is the maximum.
Adjustment
[SERVICE MENU3]
[VBS Y:]
9. H position adjustment
Conditions for adjustment
1. INPUT SELECT: VIDEO
2. INPUT SIGNAL: COLOR BAR
Spec.
TP402 (C-5): SWD HD
TP410 (A-5): SYNC MONI
A = 100 ±100 nS
Adjustment
1RV201 (D-6): H POSI
SWD HD
A
SYNC MONI
