IMPOR T ANT
This manual pertains only to the operation of the LED transmitted light illuminator stand. Please also read the
instruction manuals for the SZX2 series microscope and other options to understand the comprehensive
operating instructions of the microscope system.
SAFETY PRECAUTIONS
1. After the equipment has been used in an observation of a specimen that is accompanied with a potential of infection,
clean the parts coming in contact with the specimen to prevent infection.
· Moving the illuminator stand is accompanied with the risk of dropping the specimen. Be sure to remove the specimen
before moving the illuminator stand.

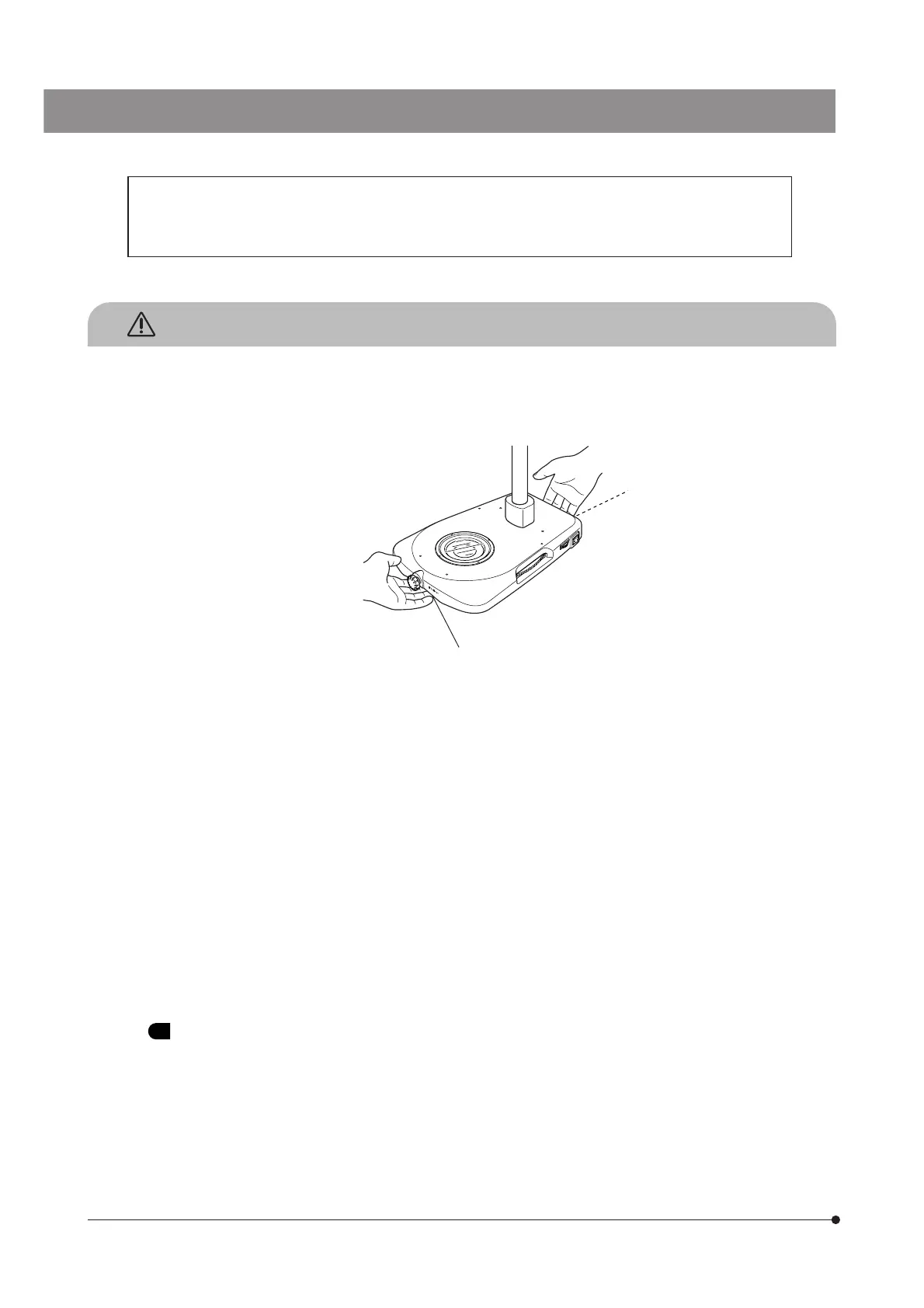

Fig. 1
@
²
· In case the specimen is damaged by erroneous operation, promptly take the infection prevention measures.
· The microscope may become unstable if its height is increased by the microscope and accessory mounted on the
illuminator stand. In this case, take anti-toppling measures to prevent the specimen from being dropped when the
microscope system topples down.
2. LED (Light Emitting Diode) device is included in this product.
· Output Max:1mW · Dual Wave length:460nm and 530nm
· If the LED light is too bright and glaring, use the optional SZX2-CCV or SZX-CCV antiglare plate (see page 10 for the
attaching method).
3. Install the zoom microscope body so that the light axis is aligned correctly with the LED illumination light. Even when the
transmitted light illumination is not used, the left-right pivot angle of the microscope body must be limited to 30°.
4. Always use the AC adapter and power cord provided by Olympus. If no power cord is provided, please select the power
cord by referring to the section “PROPER SELECTION OF THE POWER SUPPLY CORD” at the end of this instruction
manual. If the proper AC adapter and power cord are not used, Olympus can no longer warrant the electrical safety
performance of the equipment.
5. Always ensure that the grounding terminal is properly grounded. If the equipment is not grounded/earthed, Olympus
can no longer warrant the electrical safety performance of the equipment.
6. If water or a liquid is spilt on the stage surface of the illuminator stand, treat it quickly and promptly as described in
“
2 Maintenance and Storage” below.
