SZX2-ILLT
4
1

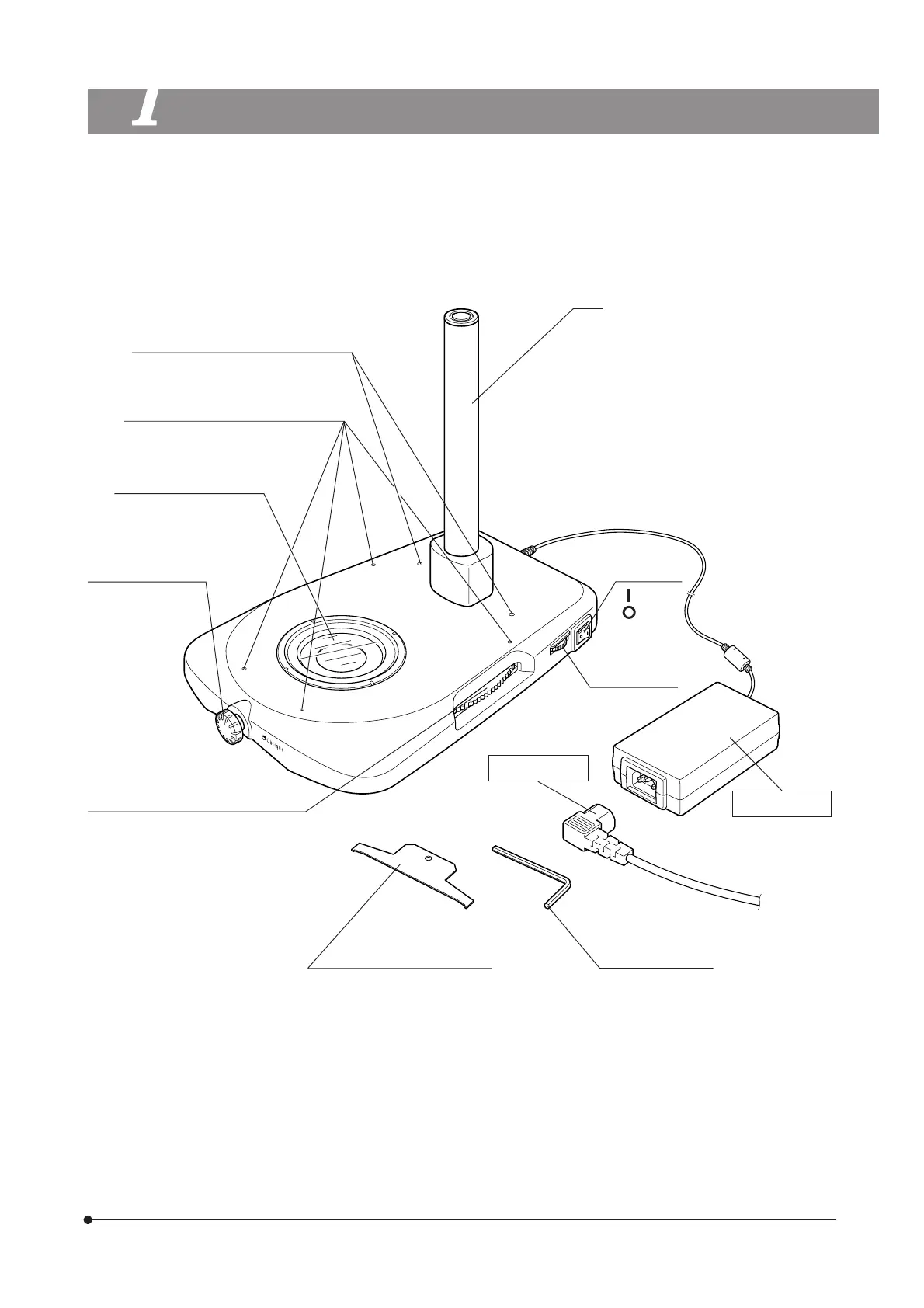

NOMENCLATURE
}If you have not yet assembled the illuminator stand, see Chapter 4, “ASSEMBLY” (pages 9 to 10) first.
Reserve screw holes
For M6 mm screws, depth 10 mm (x 2)
Stage glass (with a frame)
Oblique illumination
adjustment knob (P. 5)
Illumination selector turret (P. 5)
BF: Brightfield illumination.
DF: Simplified darkfield illumination.
Oblique: Oblique brightfield illumination.
Idle position: Reserved.
Pillar
Main switch
“ ” : ON
“ ” : OFF
Light intensity
control dial (P. 5)
AC adapter
Power cord
Driver
For use in attaching/removing the
stage glass frame.
Allen wrench
For use in attaching/
removing the pillar.
Reserve screw holes
For M4 mm screws, depth 6 mm (x 4)
