Olympus UES-40 - Page 47

UES-40

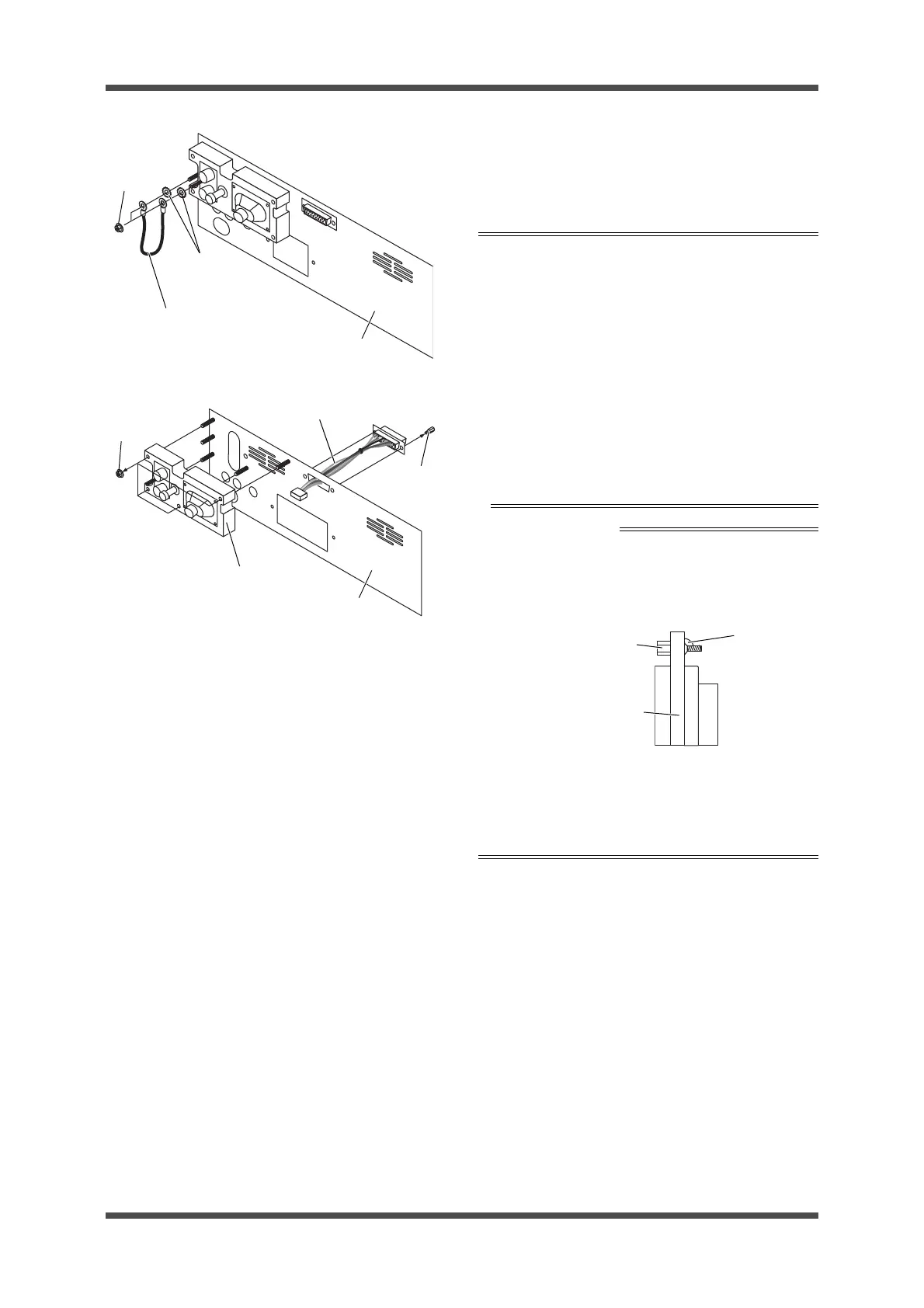

ISSUE4 3-11 Disassembly and Reassembly Procedure
(3) Remove the 2 NUTS (C6N3SZ) and 2
WASHERS (HWB3SA) holding the EARTH
CABLE, and remove the EARTH CABLE.
Box screwdriver (5.5 mm between opposite sides)
(4) Remove the 2 METAL FITTINGS holding the
SYSTEM HARNESS, and remove the SYS-
TEM HARNESS.
Box screwdriver (5 mm between opposite sides)
Neji-lock (during reassembly)
Note: During reassembly, apply Neji-lock to
the 2 METAL FITTINGS as shown in
the figure.
(5) Remove the 4 NUTS (C6N3SZ) holding the
ISOLATION PLATE, and remove the ISOLA-
TION PLATE.
Box screwdriver (5.5 mm between opposite sides)
REAR PANEL
EARTH CABLE
HWB3SA
2 NUTS
C6N3SZ
2 NUTS
REAR PANEL
C6N3SZ
4 NUTS
SYSTEM HARNESS
METAL FIT
TING
ISOLATION
PLATE
METAL
FITTING
Coat with
Neji-lock
REAR PANEL
[Cross-sectional view]
