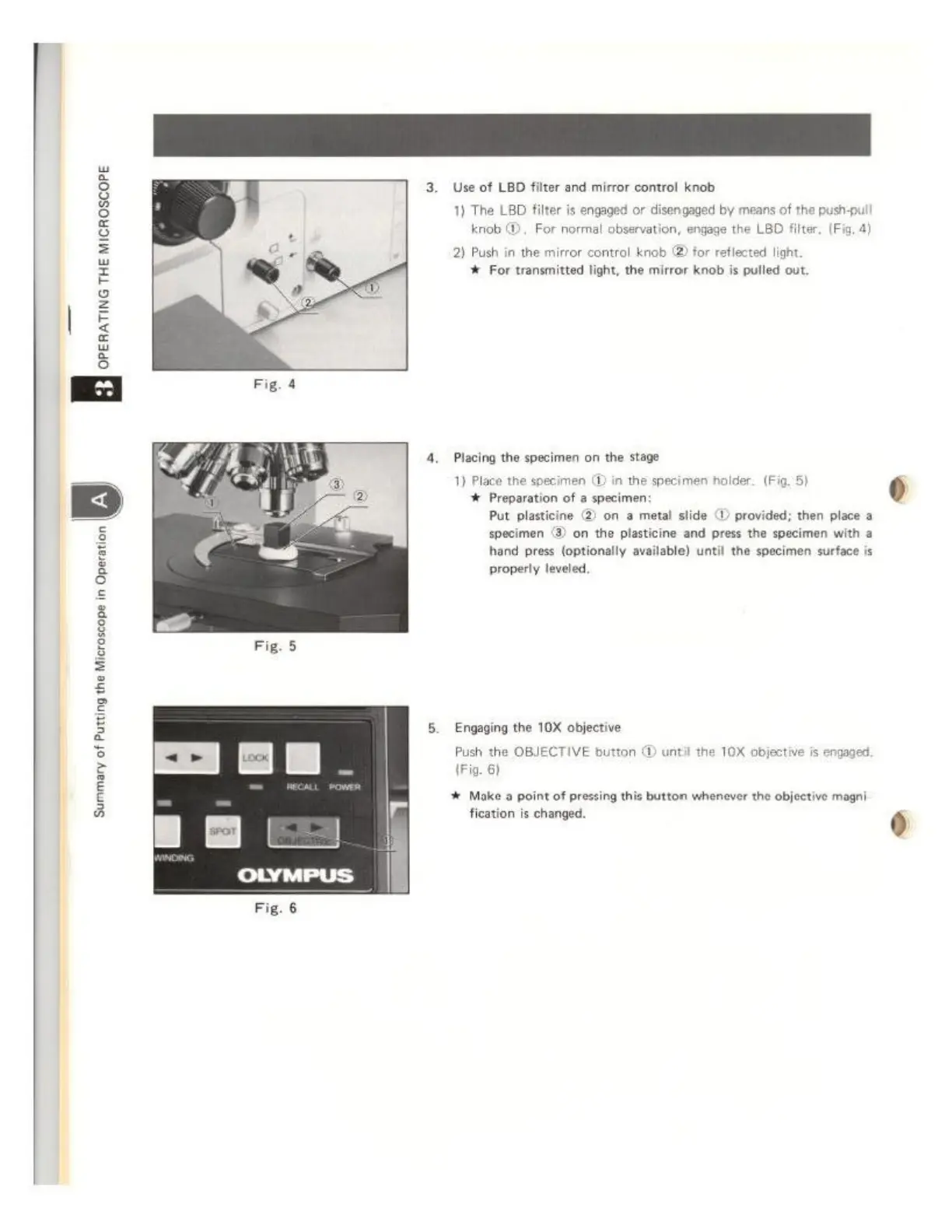

Olympus VANOX-T - Page 12

3. Use of LBD filter and mirror control knob
1) The LBD filter is engaged or disengaged by means of the push-pull
knob @, For normal observation, engage the LBD filter. (Fig. 4)
2) Push in the mirror control knob «3) for reflected light.
# For transmitted light, the mirror knob is pulled out.
4. Placing the specimen on the stage
1) Place thespian inthe paia o. (Pi. 8)
YR ca ein 0
Put plne Gn a metal lido O provided; thn place a
toecimen on te platine and pres te specimen in
Fond press (optionally aval uni the spsimen surface
propery lve,
5. Engaging the 10X objective
Push the OBJECTIVE button (D until the 10X objective is engaged,
(Fig. 6)
+ Make a point of pressing this button whenever the objective magni
fication is changed. 6
