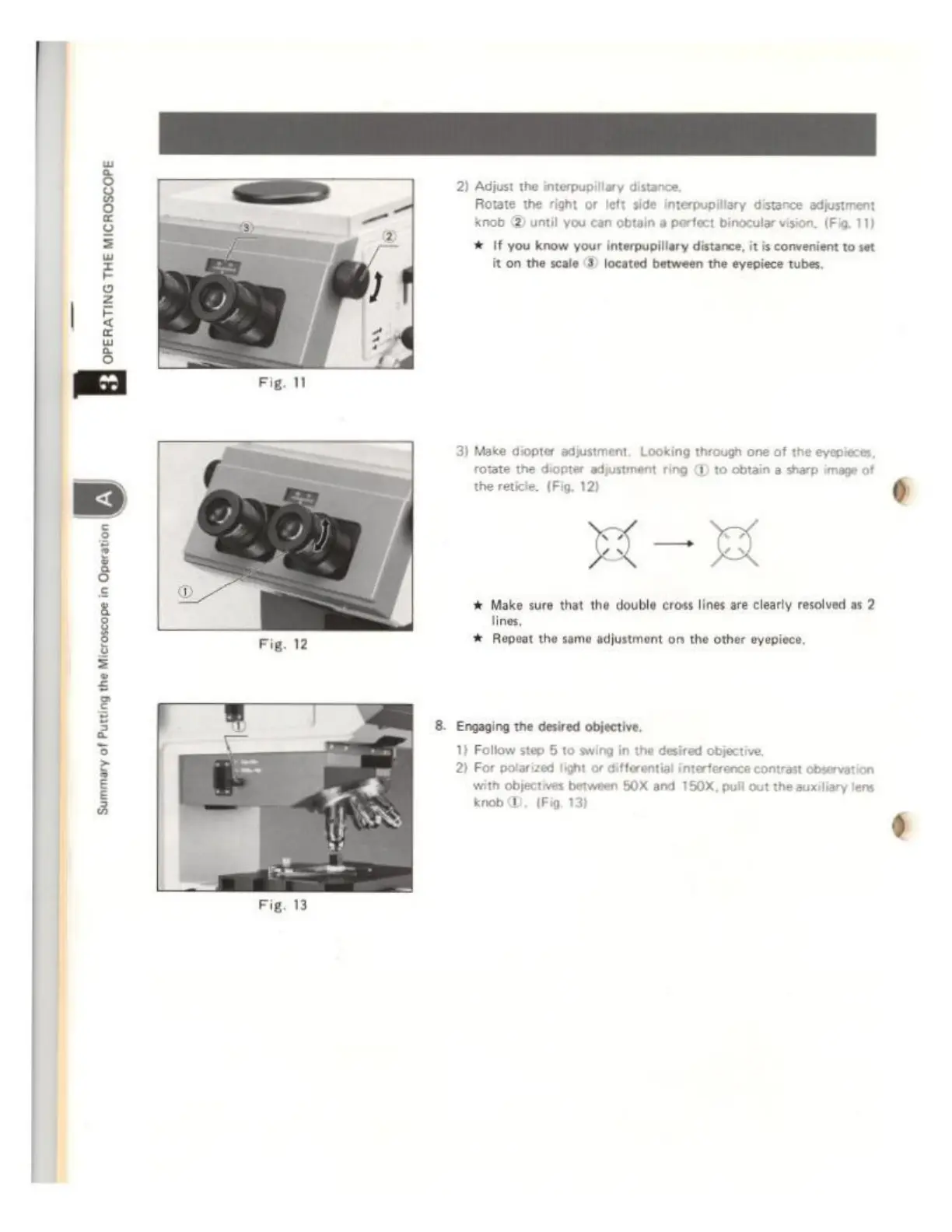

2) Adjust the interpupillary distan
Rotate the right or Je interpupillary distance adjustment
knob ® until you can obtain a perfect binocular vision. (Fig. 11)
% If you know your interpupillary distance, it is convenient to set
it on the scale (3) located between the eyepiece tubes.
|ATING
THE
MICROSCOPE
Fig 1
3) Make diopter adjustment, Looking through one of the eyepieces,
rotate the diopter adjustment ring (D to obtain a sharp image of
the reticle. (Fig. 12) 6
AX AX
4 Mat sr ea we de ee
lines.
* Repeat the same adjustment on the other eye
es are clearly resolved as 2
Fig. 12
т 8. Engaging the desired objective.
1) Follow step 5 to swing in the desired objective.
2) For polarized light or differential interference contrast observation
with objectives between 50X and 150X, pull out the auxiliary lens
knob D, (Fig. 13)
Fig. 13
—
°°
