Olympus VMF Repair Manual

Fig. 12
AA935800
LP032500
Fig. 13
AA936000
NU3x3SA
(2
pes.)
ACU2x3SA
~
(3
pes.)
ZJ850600
3-14

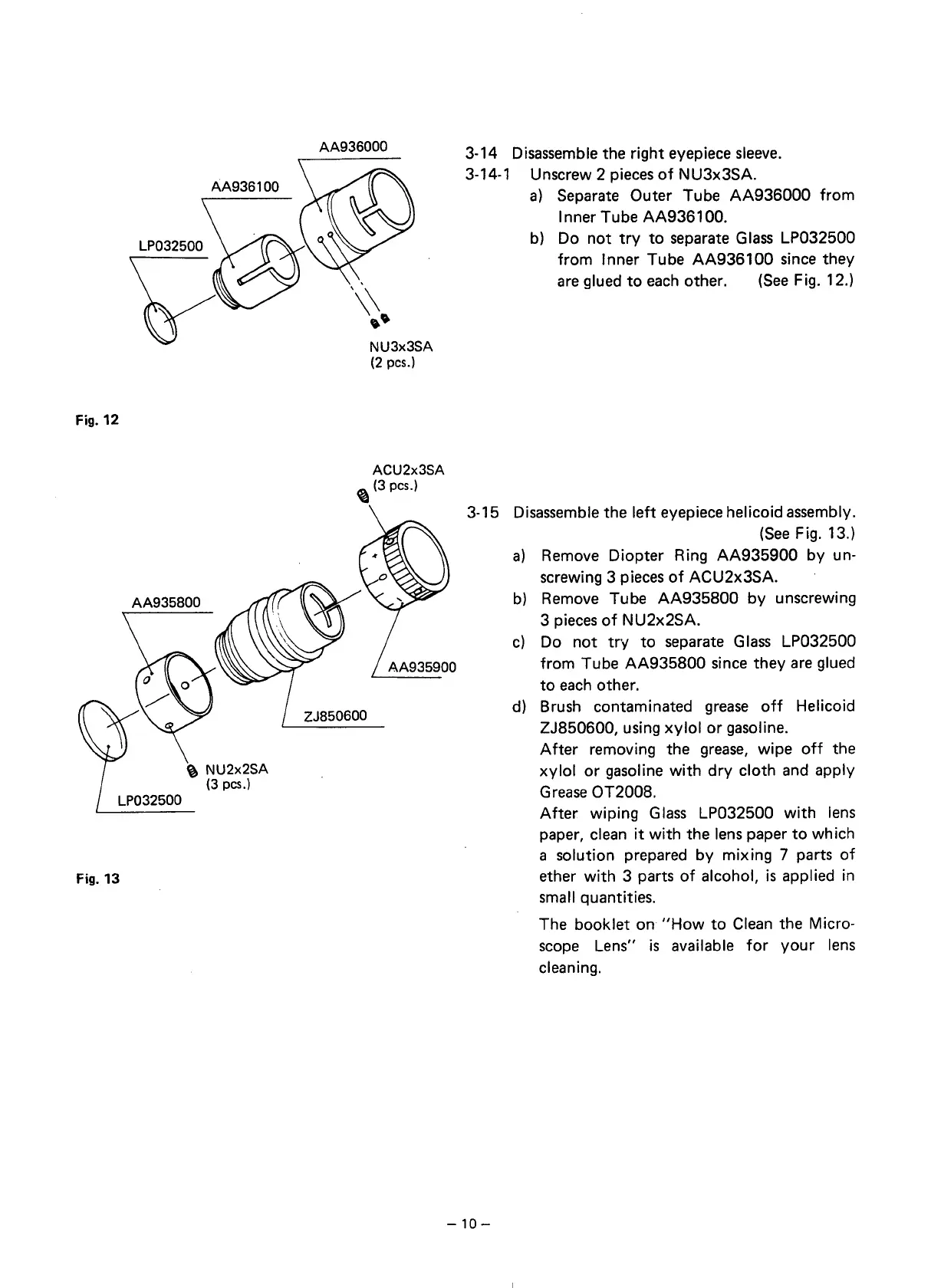

Disassemble the right eyepiece
sleeve.
3-14-1 Unscrew 2
pieces
of
NU3x3SA.
a)
Separate
Outer
Tube
AA936000
from
Inner
Tube AA936100.
b)
Do
not
try
to
separate
Glass
LP032500
from
Inner
Tube
AA936100
since
they
are
glued
to
each
other.
(See
Fig. 12.)
3-15
Disassemble
the
left
eyepiece helicoid assembly.
(See
Fig. 13.)
-10-
a)
Remove Diopter Ring
AA935900
by
un-
screwing 3 pieces
of
ACU2x3SA.
b)
Remove Tube
AA935800
by
unscrewing
3
pieces
of
NU2x2SA.
c)
Do
not
try
to
separate
Glass
LP032500
from Tube
AA935800
since they
are
glued
to
each
other.
d)
Brush contaminated
grease
off
Helicoid
ZJ850600,
using
xylol
or
gasoline.
After
removing the
grease,
wipe
off
the
xylol
or
gasoline
with
dry
cloth
and
apply
Grease
OT2008.
After
wiping
Glass
LP032500
with
lens
paper,
clean
it
with
the
lens
paper
to
which
a solution
prepared by mixing 7
parts
of
ether
with
3 parts
of
alcohol,
is
applied
in
small
quantities.
The
booklet
on
"How
to
Clean
the
Micro-
scope
Lens"
is
available
for
your
lens
cleaning.
