F ig . 44

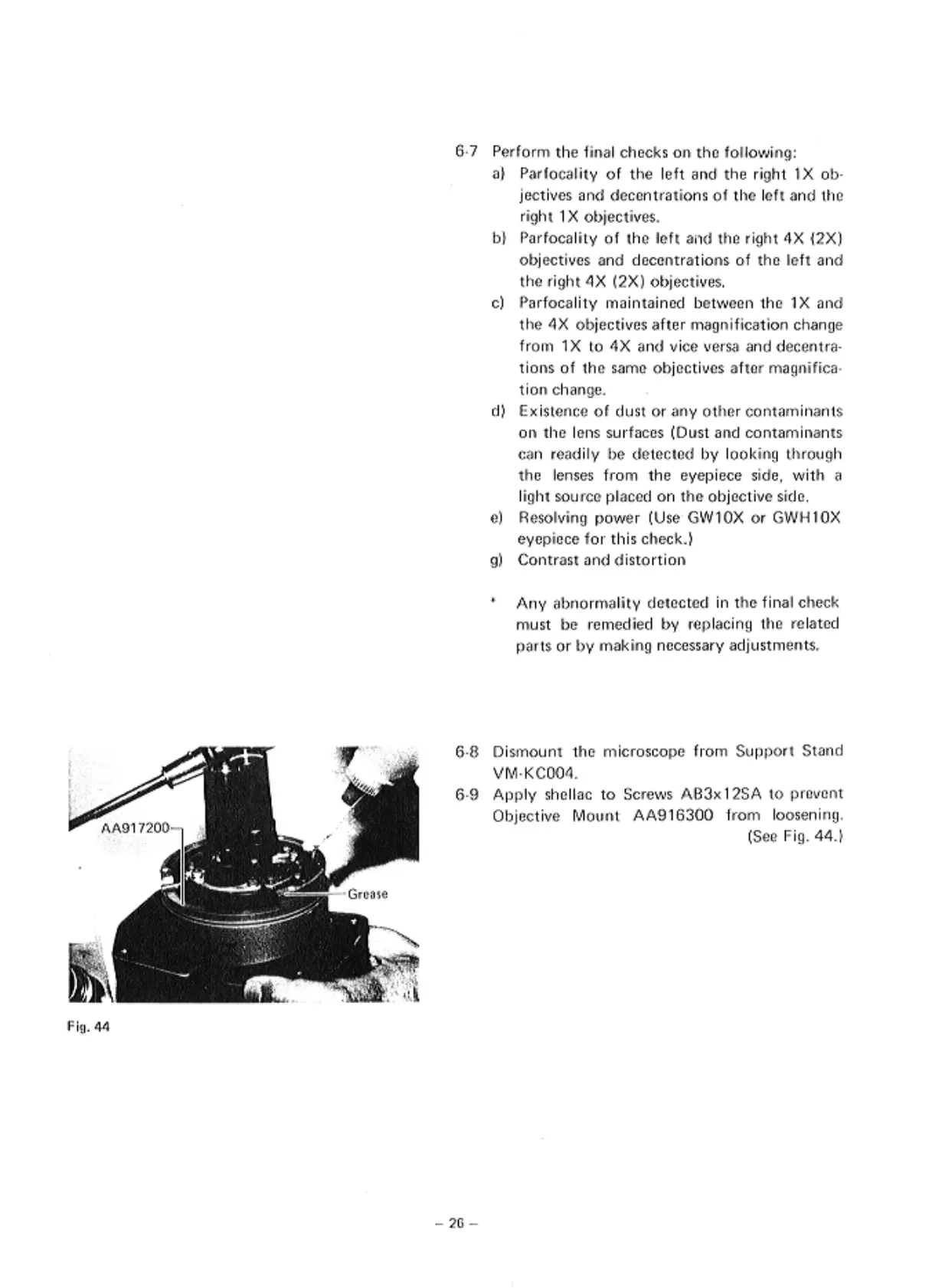

6·7 P erform th e final checks on th e follo wing:
a} Padocal i ty of the l eft and the right 1 X ob·
jectivcs and dece nu at ions ot th e l eft and the
righ t 1X objecti v es .
bl Par focali ty of the left mt<l the right 4X {2Xl
ob jectives and dece nt rations of th e le ft and
th e right 4X {2Xl objec ti ve s.
c) P arf ocality maintained be tw ee n the 1X al''l d
the 4X ob jecti ves af ter magnifica tio n change
fro•n 1X to -1X and vice \ •erS<i Md decentra·
tions of th e same ob j ect i ves aftor mag11ifica.
tio n ch ange .
d) Exi st ence of dust or any other contarnin \H ll S
O il the lens s ur faces (Oust and con tamil'lants
can r~ad i ly b~ de tected by l oo ki119 through
th e lenses from th e eye pi ece side, wit h a
l ig ht sourCP. J>Iaccd on the objecti ve side.
el Re so lv in g pow er (Use G W1 OX or GWH I OX
eyepi ec e for th is check.)
g) C on trast and d is to rtio ll
Any abnor ma l ity detected in the fin al check
must be reme di ed by re1> l ac ing the related
parts or by making necess a ry adjustment s.
6·8 Oi s1no u nt the microscope fr om S uP!> Ort Stand
VM·KC00 4.
6·9 App ly she ll ac to Sc rews AB3x 12SA to p ro ve•'t
Objective MotuH AA 9 Hi 300 fr om loose ni ng.
{ See Fig. 44 .1
