Olympus VMF Repair Manual

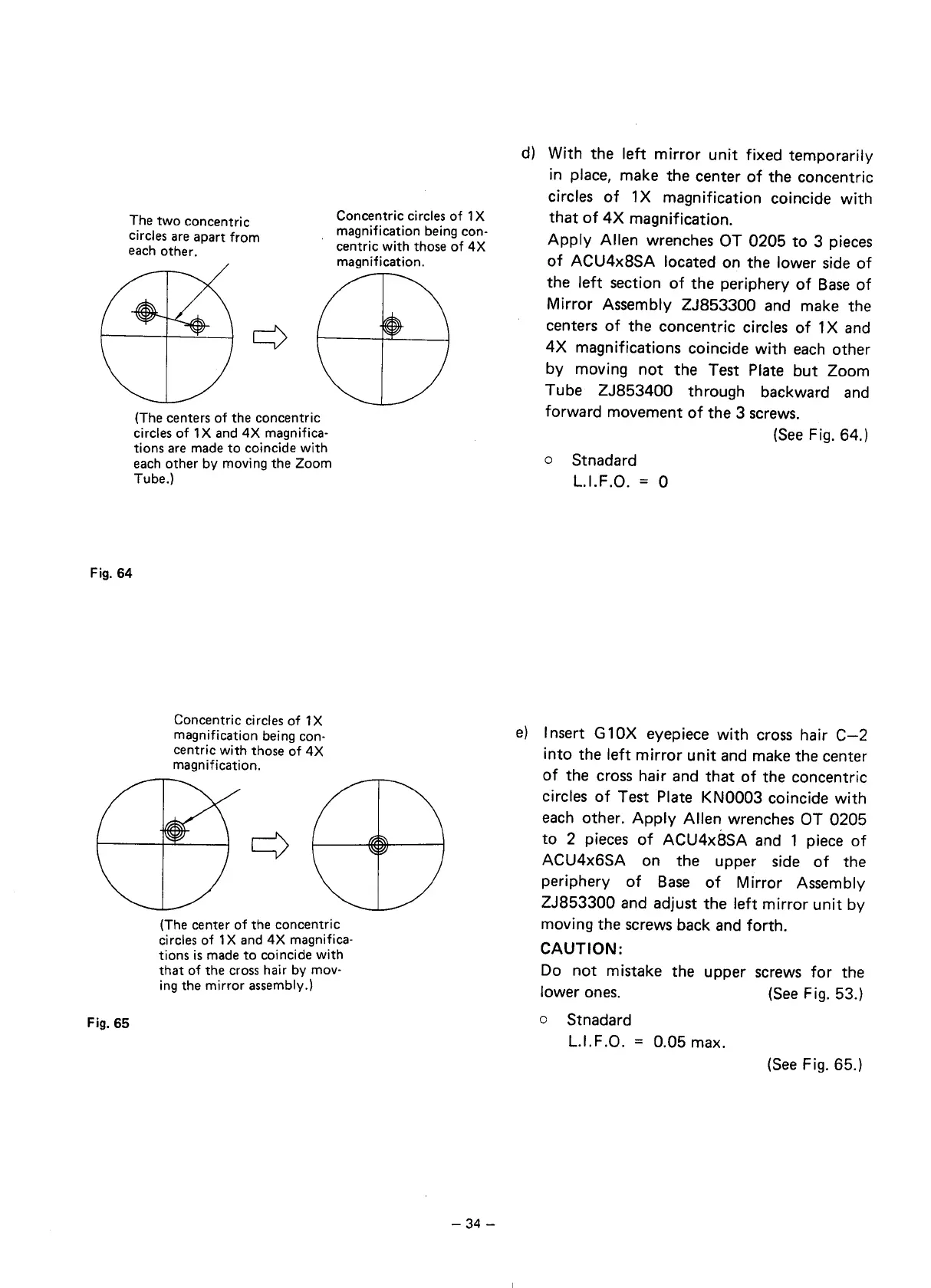

The
two
concentric
circles
are
apart
from
each
other.
Concentric circles
of
1 X
magnification being
con-
centric
with
those
of
4X
magnification.
Fig.
64
(The centers
of
the concentric
circles
of
1 X
and
4X
magnifica-
tions
are
made
to
coincide
with
each
other
by
moving the Zoom
Tube.)
Concentric circles
of
1 X
magnification being con-
centric
with
those
of
4X
magnification.
(The center
of
the concentric
circles
of
1 X
and
4X
magnifica-
tions
is
made
to
coincide
with
that
of
the
cross
hair by
mov-
ing the
mirror
assembly.)
Fig. 65
-34-
d)
With the
left
mirror
unit
fixed
temporarily
in
place,
make the center
of
the concentric
circles
of
1 X magnification coincide
with
that
of
4X
magnification.
Apply
Alien
wrenches
OT 0205
to
3
pieces
of
ACU4x8SA located
on the
lower
side
of
the
left
section
of
the periphery
of
Base
of
Mirror
Assembly ZJ853300
and make the
centers
of
the concentric
circles
of
1 X
and
4X
magnifications coincide
with
each
other
by
moving
not
the Test
Plate
but
Zoom
Tube ZJ853400
through backward
and
forward movement
of
the 3
screws.
o Stnadard
L.I.F.O.
= 0
(See
Fig. 64.)
e)
Insert G 1
OX
eyepiece
with
cross
hair
C-2
into
the
left
mirror
unit
and make the center
of
the cross hair and
that
of
the concentric
circles
of
Test
Plate KN0003
coincide
with
each
other.
Apply
Alien
wrenches
OT 0205
to
2 pieces
of
ACU4x8SA
and 1 piece
of
ACU4x6SA on the upper side
of
the
periphery
of
Base
of
Mirror
Assembly
ZJ853300
and adjust
the
left
mirror
unit
by
moving the screws back
and
forth.
CAUTION:
Do
not
mistake the upper
screws
for
the
lower
ones.
(See
Fig. 53.)
o Stnadard
L.I.F.O.
=
0.05 max.
(See
Fig. 65.)
