Olympus VMF Repair Manual

Fig . 73
Fi!) . 74
Fig. 75

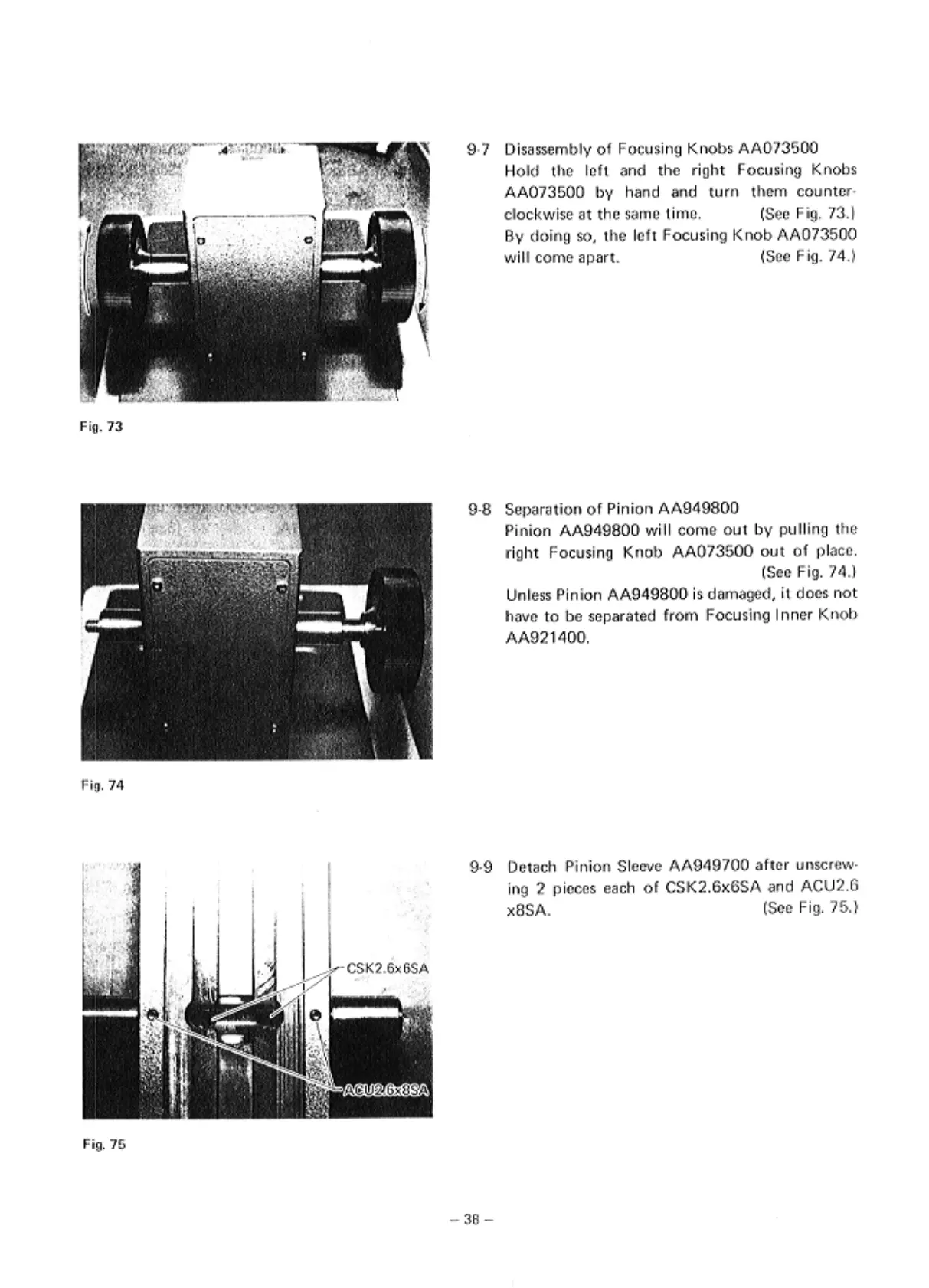

9·7 Disassem bl y of Focusi ng Kn obs AA073500
Hold the left and the right FocuSil\9 K •'lobs
AA073500 by hand and tum th em counte r·
cl oc kwi se at t he s ame time. (S ee Fig. 73 .1
By do ing so, t he left Focusing Knob AA073500
will come apart. (Sec Fig. 74 .)
9·8 Separa tion of Pinion AA949800
Pinion AA949800 will come
out by p ull ing the
right Focu
sing Knob AA0735 00 out of pla ce .
(Sec Fig. 74 .)
Unless Pin i on AA949800 is damaged, it does n ot
have to be separated from Focusing Inn er K1'1 0b
AA92 1400.
9·9 Detach Pi l)ioo Sle ev e AA9t19700 after unscrev .. ~
ing 2 pi eces e ach or CSK2.6x6SA and ACU2.6
x8SA.
(Sec Fig. 75 .1
- 36 -
