Olympus VMF - Page 40

3PUK2x4SA
AA949900
~
AA949400
0

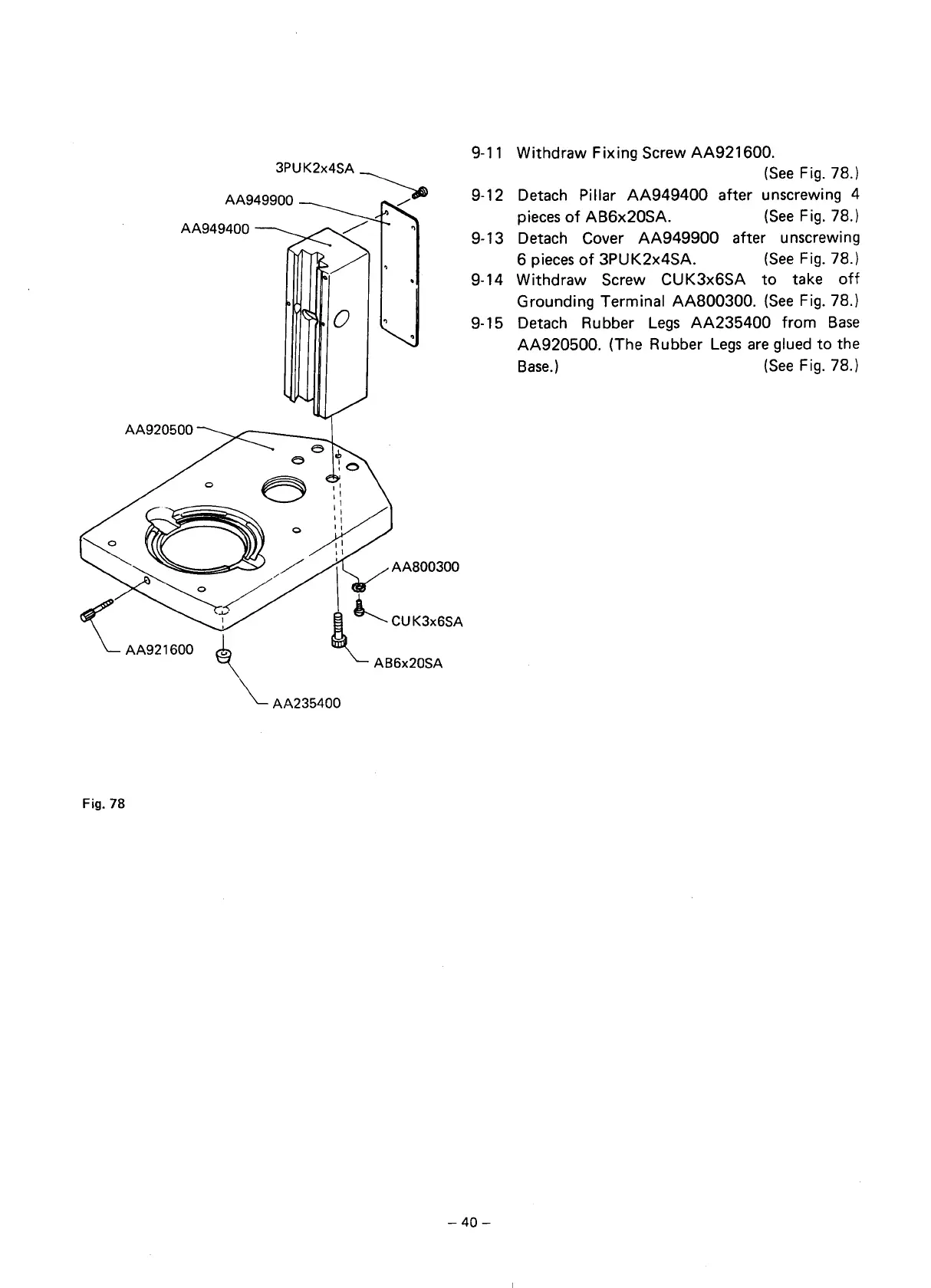

Fig.
78
9-11
Withdraw Fixing
Screw AA921600.
(See
Fig. 78.)
9-12 Detach Pillar
AA949400
after unscrewing 4
pieces
of
AB6x20SA.
(See
Fig. 78.)
9-13 Detach Cover
AA949900
after unscrewing
6
pieces
of
3PUK2x4SA.
(See
Fig. 78.)
9-14 Withdraw
Screw
CU
K3x6SA
to
take
off
Grounding
Terminal AA800300.
(See
Fig. 78.)
9-15 Detach Rubber
Legs
AA235400
from
Base
AA920500. (The Rubber
Legs
are
glued
to
the
Base.)
(See
Fig. 78.)
-40-
