OMA 528C - Specifications

CAP.2. SPECIFICHETECNICHE
PORTATA: ................................................8000kg(78400N)
Alt.max.sollevamentoauto ......................2000mm
Alt.min.supportisollevamento .................190mm
Interasselongitudinalecolonne.................5920mm
Interassetrasversalecolonne ...................3480mm
Larghezzaliberatracolonne.....................3300mm
Larghezzapedane ...................................650mm
Lunghezzapedane ...................................6200mm
Tempodisalita ... ...................................55sec
Tempodidiscesa . ...................................55sec.
FUNEdisollevamentoinacciaio,conleseguenticaratteristiche:
Diametro ........ ...................................11mm
Numerodifili ..... ...................................227
Resistenzadeifili . ...................................1960N
Diametroprimitivopulegge .......................220mm
Rumorosità ...... 70dB(A)/1m
PESOtotaledelsollevatore .....................circa1820Kg
Temperaturadifunzionamento .................-10°C/+50°C
Pressionedilavoro ....................................160bar
Ambientedilavoro:localechiuso.
MOTOREELETTRICO
Tipo ............ C90
Potenza......... 3KW
Tensione
230-400Vtrif.+/-5%
Frequenza....... 50Hz
N°poli .......... 4
Velocità ......... 1400giri/1’
Formacostruttiva . B14
Classeisolamento. F
Assorbimento .... 230V:15A
............... 400V:8,7A
Ilcollegamentodelmotoredeve
essereeseguitoriferendosiagli
schemielettriciallegati.Ilsenso
dirotazionedelmotoreèsinistro
(antiorario)comeindicatonella
targhettaapplicatasulmotore
stesso.

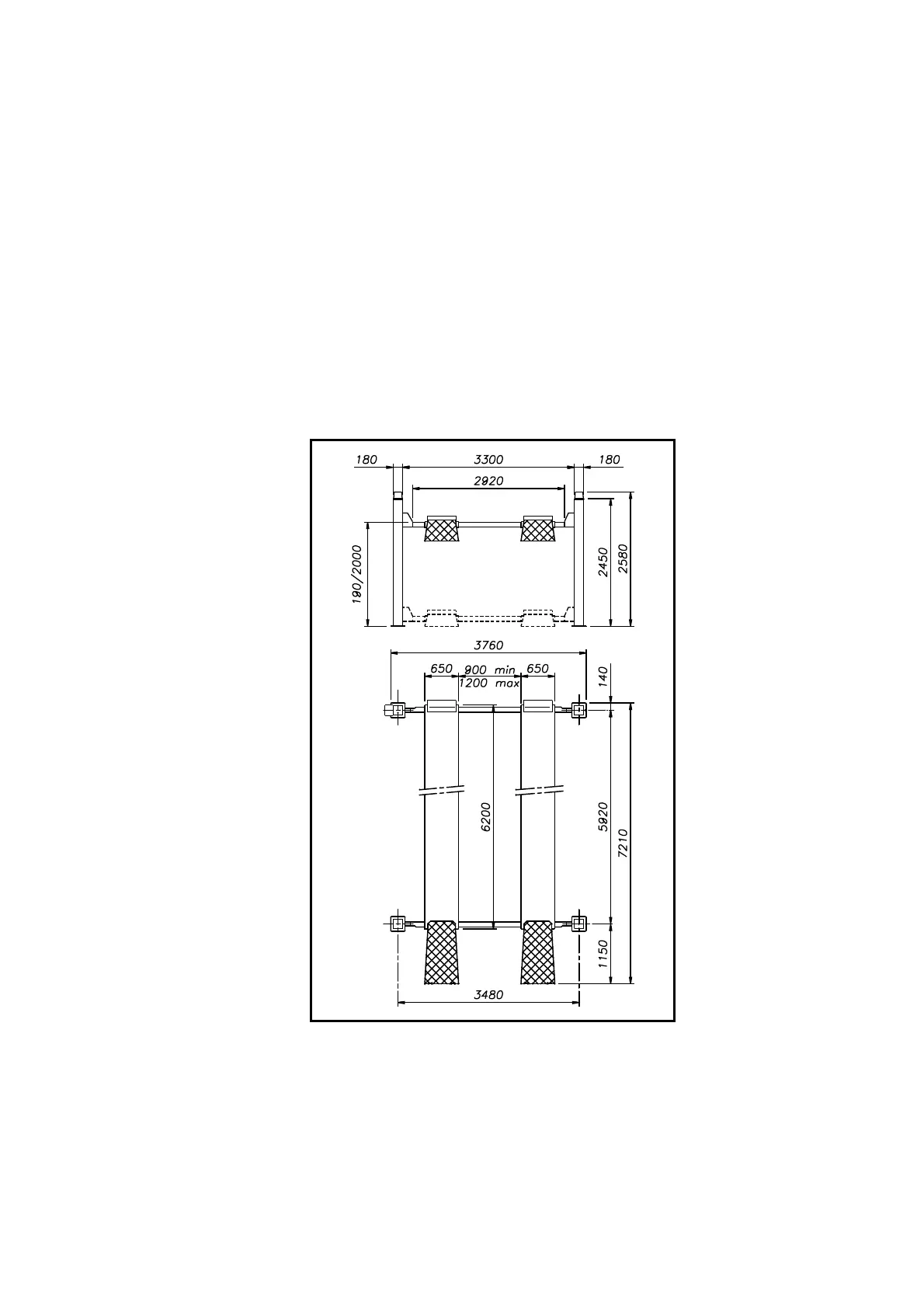

Fig.11 Dimensioni ed ingombri
POMPA
Tipo ............ ...................................20
Modello ......... ...................................10A7,4X348N
Cilindrata........ ...................................7,4cm3 /g
Taraturavalvoladimassima...............................160bar
CHAPTER2 SPECIFICATIONS
CAPACITY: ...............................................8000kg(78400N)
Max.vehicleliftingheight ..........................2000mm
Min.groundclearanceofliftstructure .......190mm
LongitudinalC/Cdistancebetweenposts . 5920mm
TransverseC/Cdistancebetweenposts... 3480mm
Effectiveclearancebetweenposts............ 3300mm
Platformwidth .... ................................... 650mm
Platformlength ... ...................................6200mm
Lifttime ......... ..................................55sec
Loweringtime .... ..................................55sec
LIFTINGCABLESinsteel,havingthefollowingfeatures:
Diameter ........ ...................................11mm
Strands ......... ...................................227
Tensilestrengthofstrand..........................1960N
Pulleypitchdiameter.................................220mm
Noise........... 70dB(A)/1m
OVERALLWEIGHTofliftunit...................1820kgapprox.
Workingtemperaturerange.......................-10°C/+50°C
Workingpressure ......................................160bar
Installationrequirements:enclosedarea.
MOTOR
Type ...........C90
Power .........3kW
Voltage
230-400Vth.-ph.+/-5%
Frequency ..50Hz
Poles ..........4
Speed.........1400rpm
Buildingshape .....B14
Insulationclass ....F
Absorption ..230V:15A
...................400V:8,7A
Whenconnectingthemotorrefer
totheenclosedwiringdiagrams.
Themotorhasleft-handedrotation
(counter-clockwise)asshownon
thedataplateonthecasing.
Fig.11Overalldimensionsandclearances
PUMP
Type ........... ...................................20
Model .......... ...................................10A7,4X348N
Displacement .... ...................................7,4cc/rev.
Reliefvalveset-up ...................................160bar
9
