OMB EM 1000 HE DIG PLUS COMPACT - Page 33

FM TRANSMITTER
TR EM 1000 HE DIG PLUS COMPACT
Technical Manual 1v2 November 2019 28

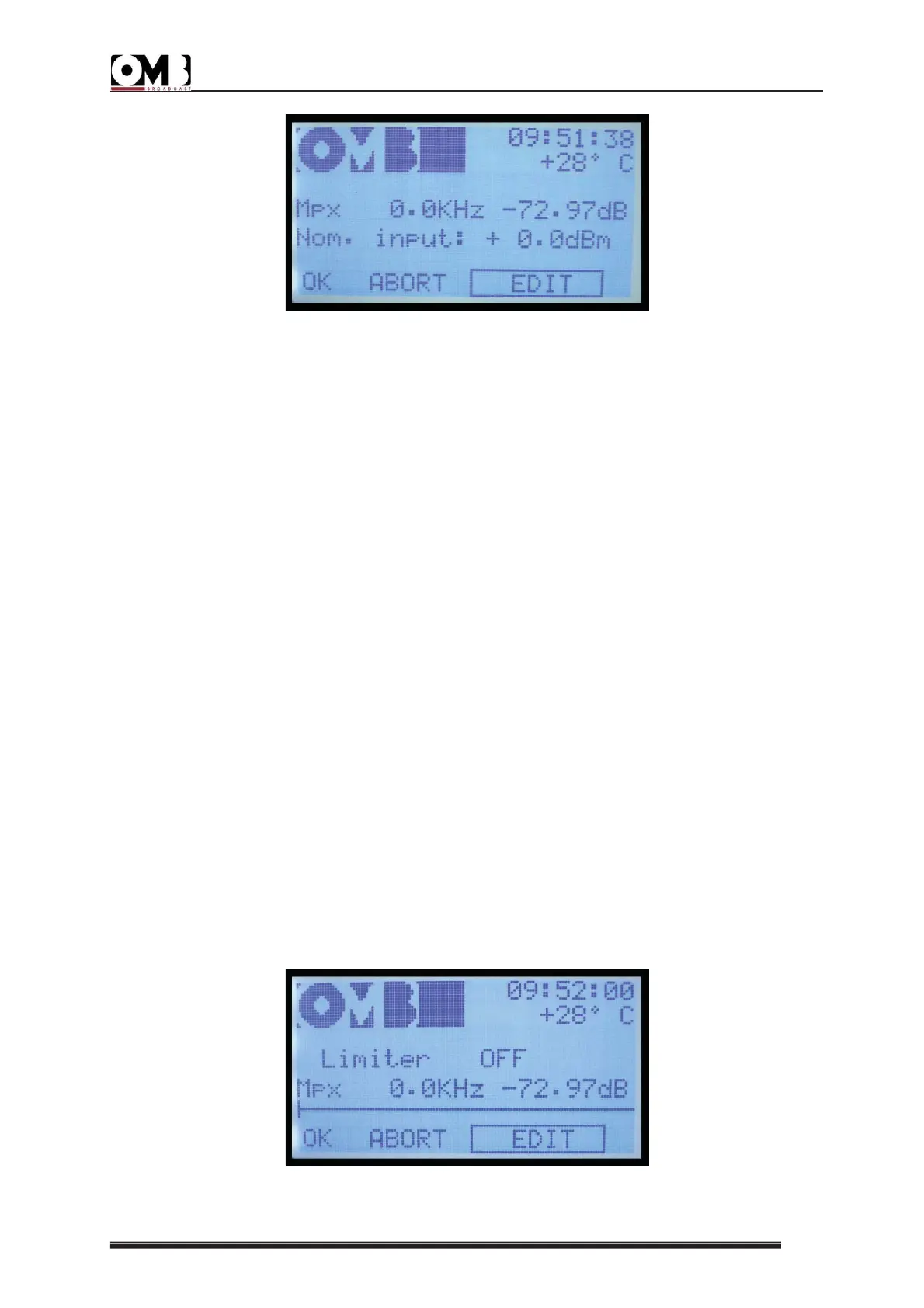

21) Ensure that the EDIT option is selected; otherwise, turn the knob to select it, then press to
confirm.
22) A value will be indicated after Nom. Input, normally pre-defined at +0.0dBm.
23) Turn the knob to adjust the value based on the modulation level used. The peak deviation
indicated by Mpx, expressed in KHz, will consequently be changed. Note that, to the right of
the deviation, the value of the modulating signal will be indicated, as compared to the
nominal value set.
24) Ensure that the measured peak deviation does not exceed local regulations, then press
the knob to confirm the setting.
25) OK will be highlighted. Three choices are now available:
- If the parameters set are correct – skip directly to step 26) to confirm the settings.
- If the parameters set are all incorrect – cancel all settings by turning the knob until ABORT is
highlighted, then skip to step 26).
- If a slight adjustment to the parameters is required – turn the knob until EDIT is highlighted,
then return to step 22).
26) Press the knob to confirm. You will return to the page indicated in step 3).
2.2.5 Modulation limiter
27) Turn the knob until the LIMITER sub-menu is selected, then press the knob to confirm.
28) The modulation limiter adjustment screen will appear:
