FM TRANSMITTER
TR EM 1000 HE DIG PLUS COMPACT
Technical Manual 1v2 November 2019 38

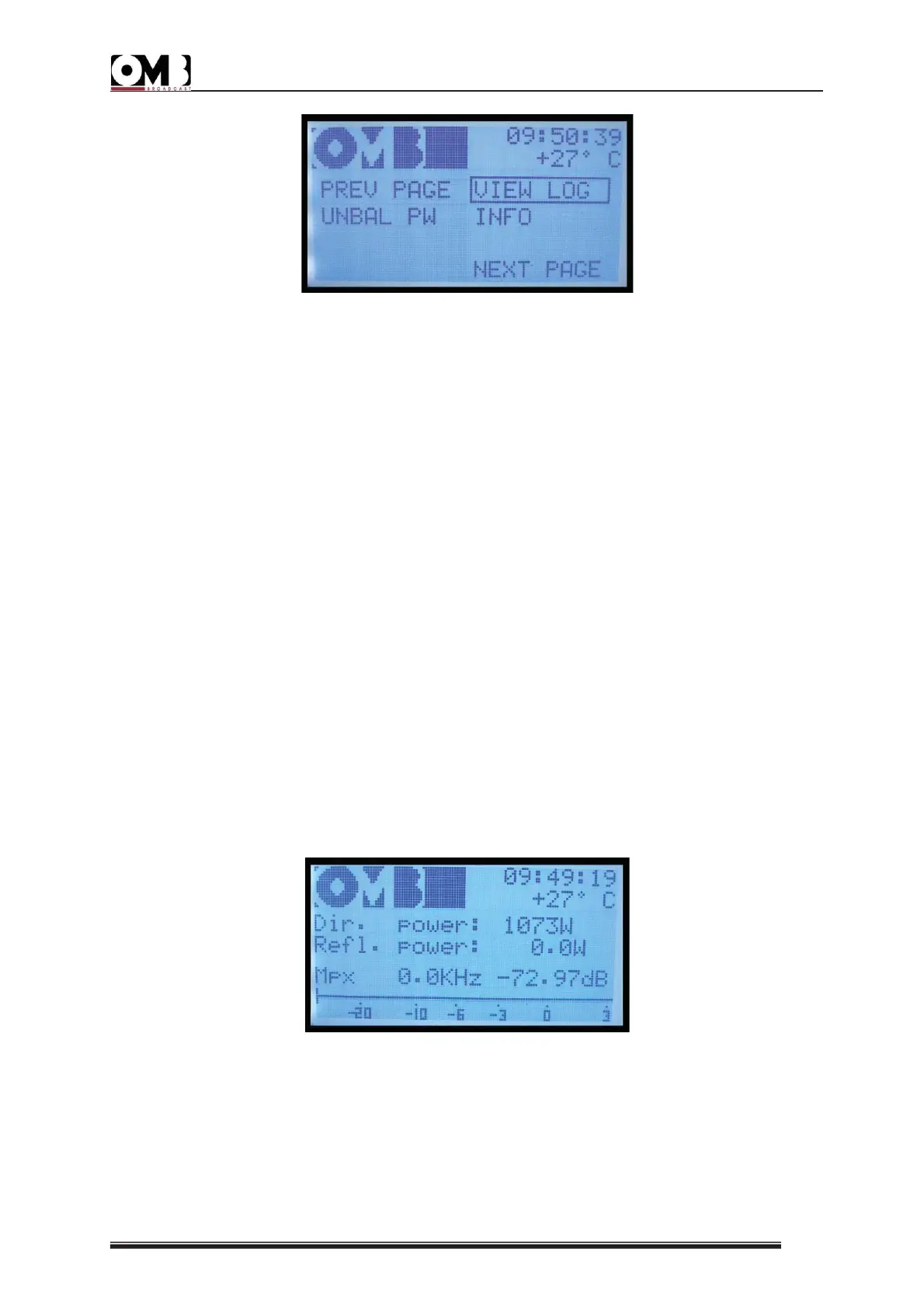

VIEW Page 2
• STATUS – indicates the primary measurements, such as direct power, reflected power, etc.
• L/R – for measuring modulation.
• AUX – for measuring modulation of the auxiliary RDS/SCA signal.
• MPX GRAPH – graphically displays modulation in various modes.
• SYSTEM – indicates the main system parameters, such as frequency, mono/stereo mode,
pre-emphasis, etc.
• VOLTAGE – measures internal power voltages.
• TEMPERAT. – measures internal temperatures.
• VIEW LOG – indicates alarms/events that have occurred during operation.
During normal use of the device, we recommend that the STATUS menu be selected.
Each of the above sub-menus is used to view parameters; as such, options cannot be selected
using the knob, with the exception of the MPX GRAPH and VIEW LOG sub-menus.
• INFO – indicates if the stereo, modem and Ethernet options are present in the equipment or
not.
- STATUS sub-menu
The screen for this sub-menu contains the following items:
• Dir. Power: indicates the direct power currently delivered (in the example, 1073W).
• Refl. Power: indicates the reflected power currently measured (in the example, 0.0W).
• Mpx (multiplex) – indicates the peak deviation, expressed in KHz (in the example, 0KHz) and
-72.97dB, in reference to a deviation of 75KHz (0dB = 75KHz). To change the deviation in
