FM TRANSMITTER
TR EM 1000 HE DIG PLUS COMPACT
Technical Manual 1v2 November 2019 40

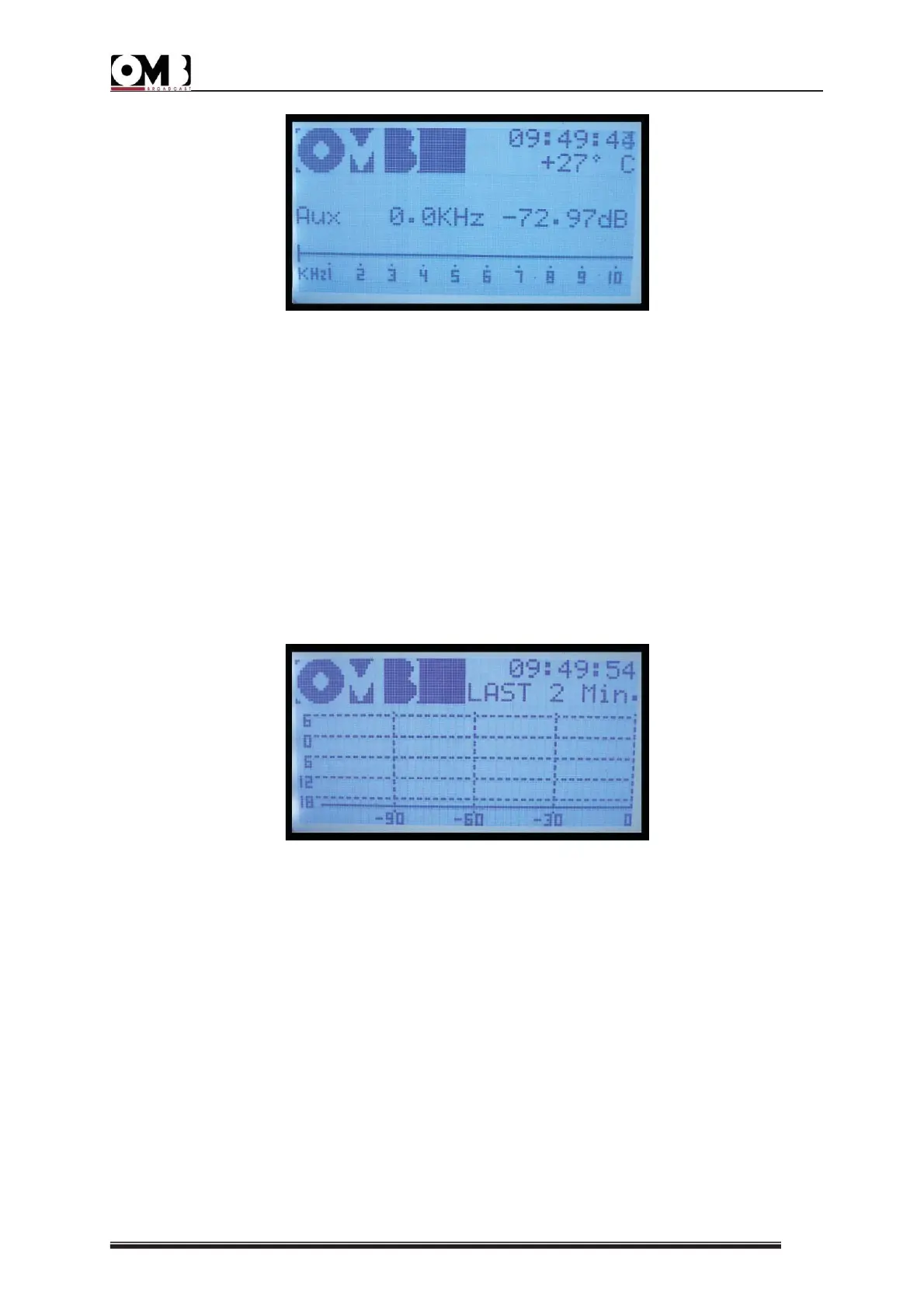

The above example shows the standard level of the RDS signal (0KHz), as well as the bar
indicator, which shows the level graphically.
Adjustments can be made to modulation of the auxiliary signal via the SETUP menu.
- MPX GRAPH sub-menu
This sub-menu graphically shows the modulation trend over time in three different scales
indicated on the right. The different scales can be selected by simply turning the knob.
The first (LAST 2 Min.) shows the modulation trend for the last two minutes. The second
(LAST 2 Hr.) shows the modulation trend for the last two hours. The third (LAST 24 Hr.) shows
the modulation trend for the last 24 hours.
The screens are shown cyclically. As such, at the third screen, turning the knob clockwise will
take you back to the first screen.
Similarly, if you are at the first screen and you turn the knob anti-clockwise, the last screen will
be selected.
- SYSTEM sub-menu
The screen for this sub-menu shows the key parameters (set frequency, mono/stereo mode,
etc.) as follows:
