FM TRANSMITTER
TR EM 1000 HE DIG PLUS COMPACT
Technical Manual 1v2 November 2019 42

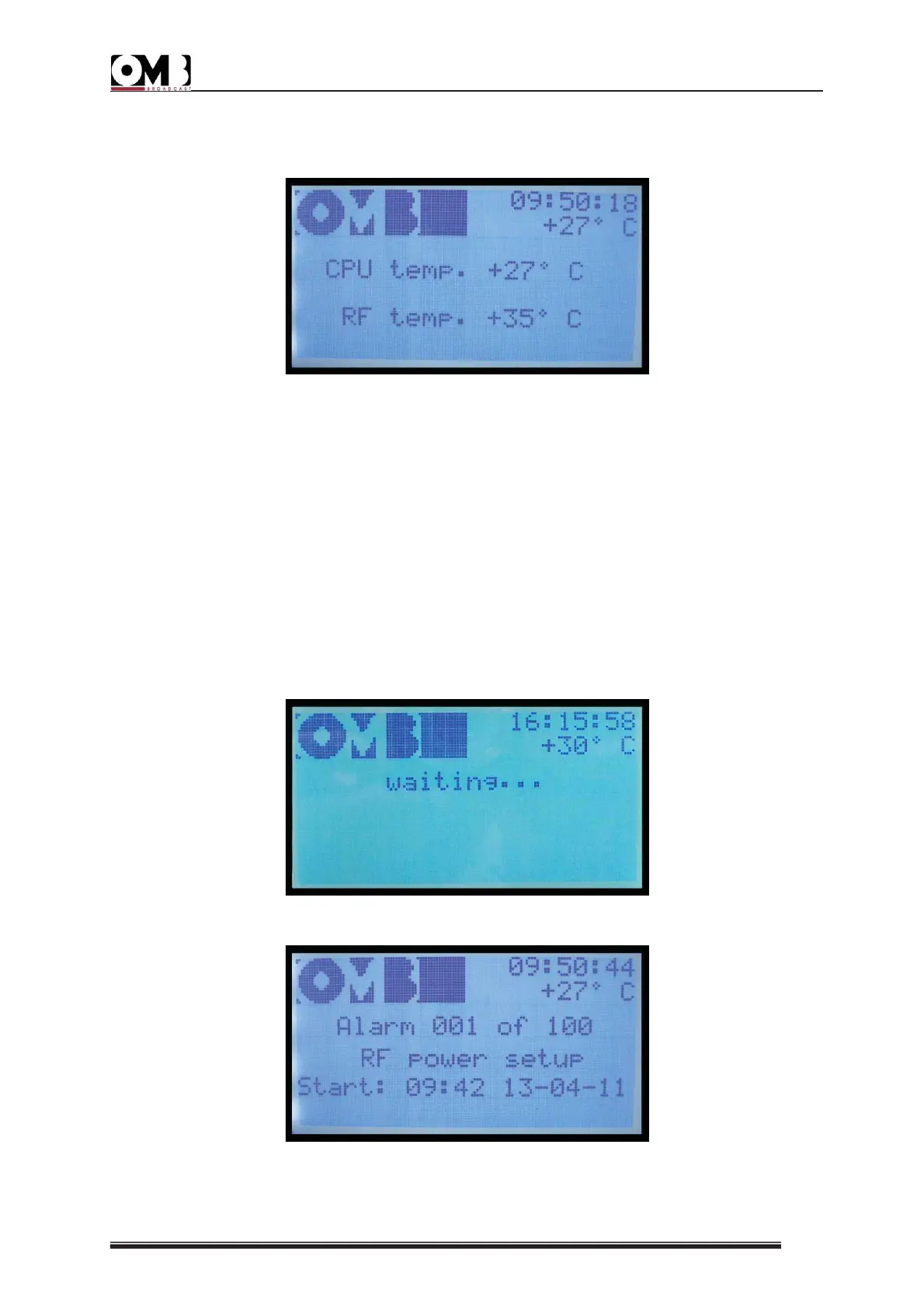

The screen for this sub-menu indicates the current operating temperatures as follows:
• CPU temp. – indicates the current CPU temperature (in the example, +27°C)
• RF temp. – indicates the RF temperature, if pertinent to the model in use (in the example,
+35°C)
- VIEW LOG sub-menu
This sub-menu provides a historical record of events (transmitter turned on, turned off, on
stand-by, etc.) and alarms (insufficient modulation, excessive reflected power, etc.) that took
place during operation. The transmitter’s memory (non volatile) can record up to 100
alarms/events. As soon as you enter this menu, the transmitter takes a few seconds to update
the data; during this time, the screen waiting... appears.
Next, the following screen will appear:
