3) Turn the knob to change the setting to LOW or HIGH according to your requirements, then
press the knob to set the value.
4) Using the knob, select OK to save the settings, EDIT to make further changes, or ABORT to
exit without saving the new settings, then press to confirm
The ENABLE line is equipped with an internal pull-up resistance that maintains the line on high
status in the absence of a signal or connection.
If BOTH is set under Type and the ENABLE line on the rear input is short-circuited, the
ON/STAND-BY button won’t work correct when this setting performs a logic function (OR) for
the two commands.

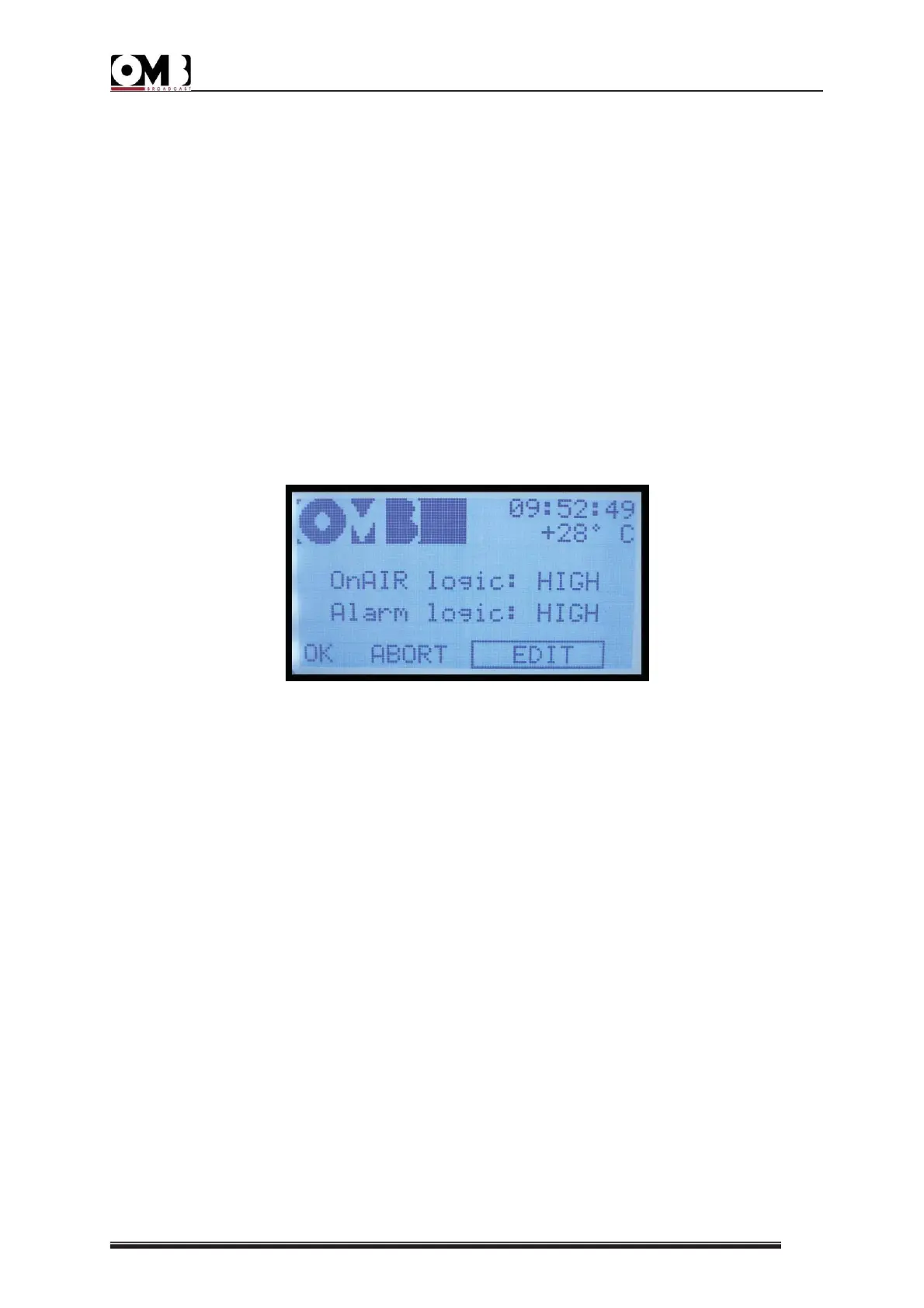

- SET OUT (remote control output) setting
This screen allows you to define the logic levels (high/low) used for remote control:
You can define whether the status of the following lines normally has a HIGH or LOW logic
level:
• OnAIR logic – ON THE AIR line, which signals when the device is powered up
• Alarm logic – ALARM line, which signals the presence of an alarm
To set these parameters:
1) Ensure that the EDIT option is selected; otherwise, turn the knob to select it, then press to
confirm. A value will be indicated after OnAIR logic.
2) Turn the knob to change the setting to LOW or HIGH according to your requirements, then
press the knob to set the value. A value will be indicated after Alarm logic.
3) Turn the knob to change the setting to LOW or HIGH according to your requirements, then
press the knob to set the value.
4) Using the knob, select OK to save the settings, EDIT to make further changes, or ABORT to
exit without saving the new settings, then press to confirm
The alarm activation threshold levels can also be defined via the alarm menu
- DATE TIME setting
To Next Page
