• Contrast – followed by the current contrast value
To change these parameters:
1) Ensure that the EDIT option is selected; otherwise, turn the knob to select it, then press to
confirm. A value will be indicated after Backlight.
2) Turn the knob to change the backlighting, which will immediately change based on the
setting selected (three levels are available; 3 corresponds to maximum illumination), then
press to confirm. A value will be indicated after Contrast.
3) Turn the knob to change the contrast, which will immediately change based on the setting
selected (twenty levels are available; 1 corresponds to maximum contrast), then press the
knob to set the value.
4) Using the knob, select OK to save the settings, EDIT to make further changes, or ABORT to
exit without saving the new settings, then press to confirm.

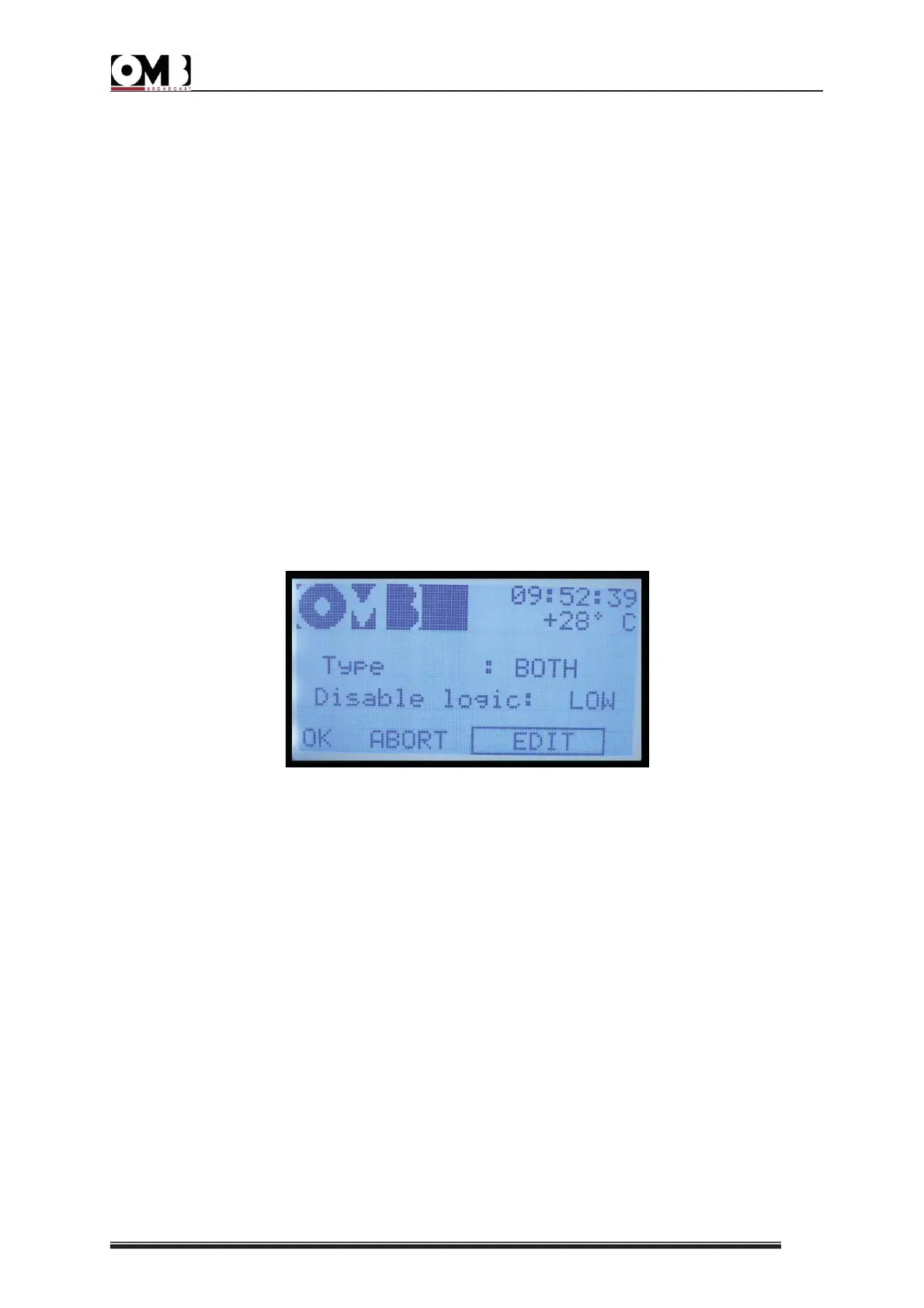

- SET IN (remote control input) setting
Used to set logic levels for the ENABLE line in the remote control input:
The following parameters can be adjusted:
• Type – transmitter’s activation/deactivation mode. You can define whether this takes place
via the front ON/STAND-BY button only (the ENABLE line is therefore deactivated), the rear
line only (the front ON/STAND-BY button is deactivated), or using both commands (either the
front button or the ENABLE line). To this end, the settings BOTH, LOCAL, and REMOTE (only
via the ENABLE line) are available.
• Disable logic: - defines whether activation of the command takes place using a LOW or HIGH
logic level. The device is normally deactivated with a low level, meaning when this line is
grounded.
To set these parameters:
1) Ensure that the EDIT option is selected; otherwise, turn the knob to select it, then press to
confirm. A value will be indicated after Type.
2) Turn the knob to change the setting to BOTH, LOCAL, or REMOTE according to your
requirements, then pres the knob to set the value. A value will be indicated after Disable
logic.
