12

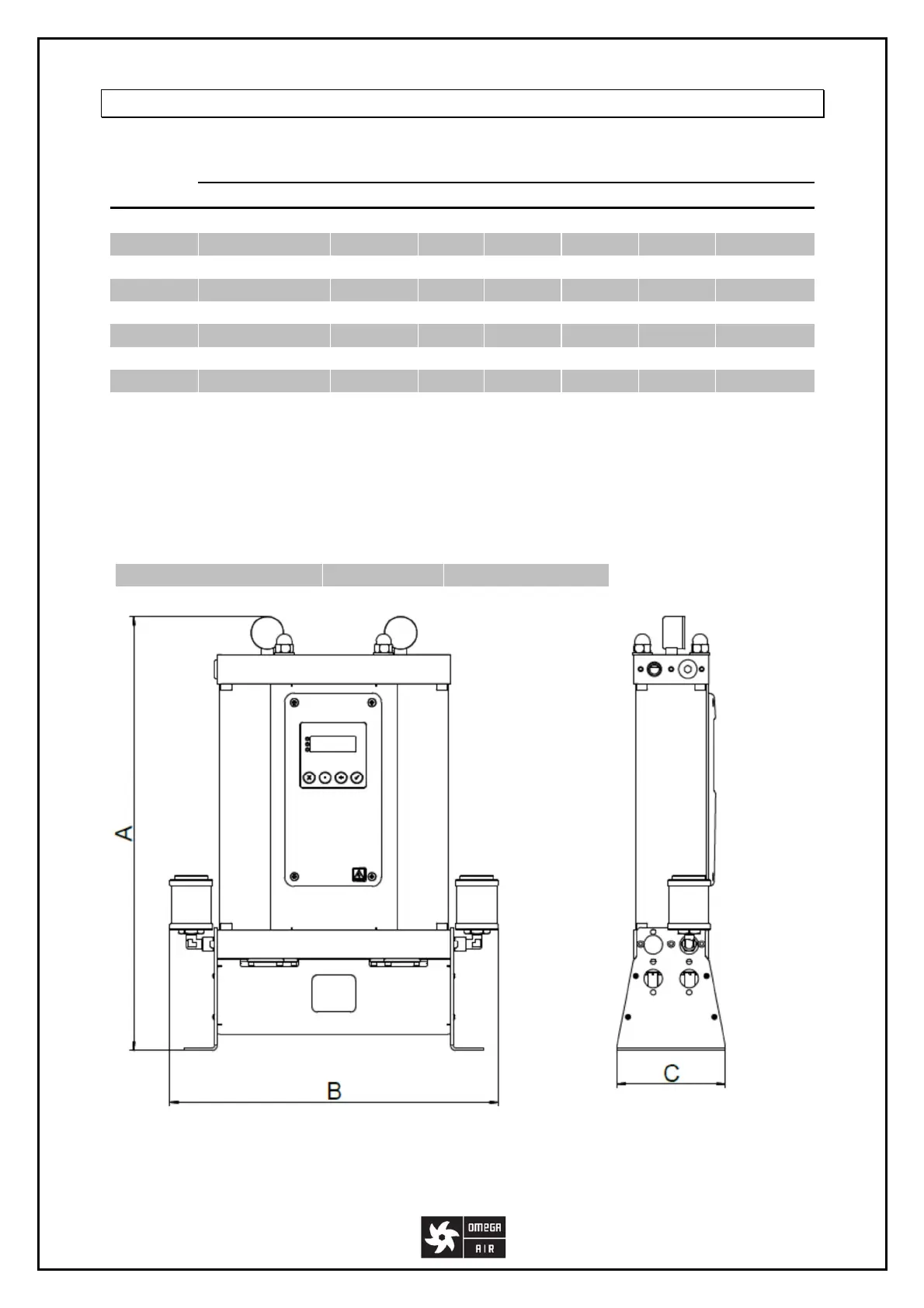

3.2 Physical characteristics
MODEL
CONNECTIONS
FLOW CAPACITY DIMENSIONS [mm] WEIGHT
[inch] [Nm
/h] [scfm]
Height Width* Depth [kg]
DRY 6 ⅜” 6 3,7 520 395 130 11,5
DRY 12 ⅜” 12 7,7 715 395 130 14,2
DRY 24 ⅜” 24 14,9 1105 395 130 19,3
DRY 36 ⅜” 36 22,4 1500 395 130 24,4
DRY 60 ¾” 60 37,3 1105 475 160 45,0
DRY 75 ¾” 75 46,7 1300 475 160 53,0
DRY 105 ¾” 105 65,3 1700 475 160 70,0
DRY 150 1” 150 93,3 1440 570 240 170,5
DRY 200 1” 200 124,4 1655 570 240 182,2
Flow capacity at 7 bar(g), 20°C
* Width with filters
Operating temperature 1,5 - 45 °C 35 - 113 °F
Operating pressure 4 - 16 bar(a)
58 - 232 psi
