3.2.10 ID Code Menu

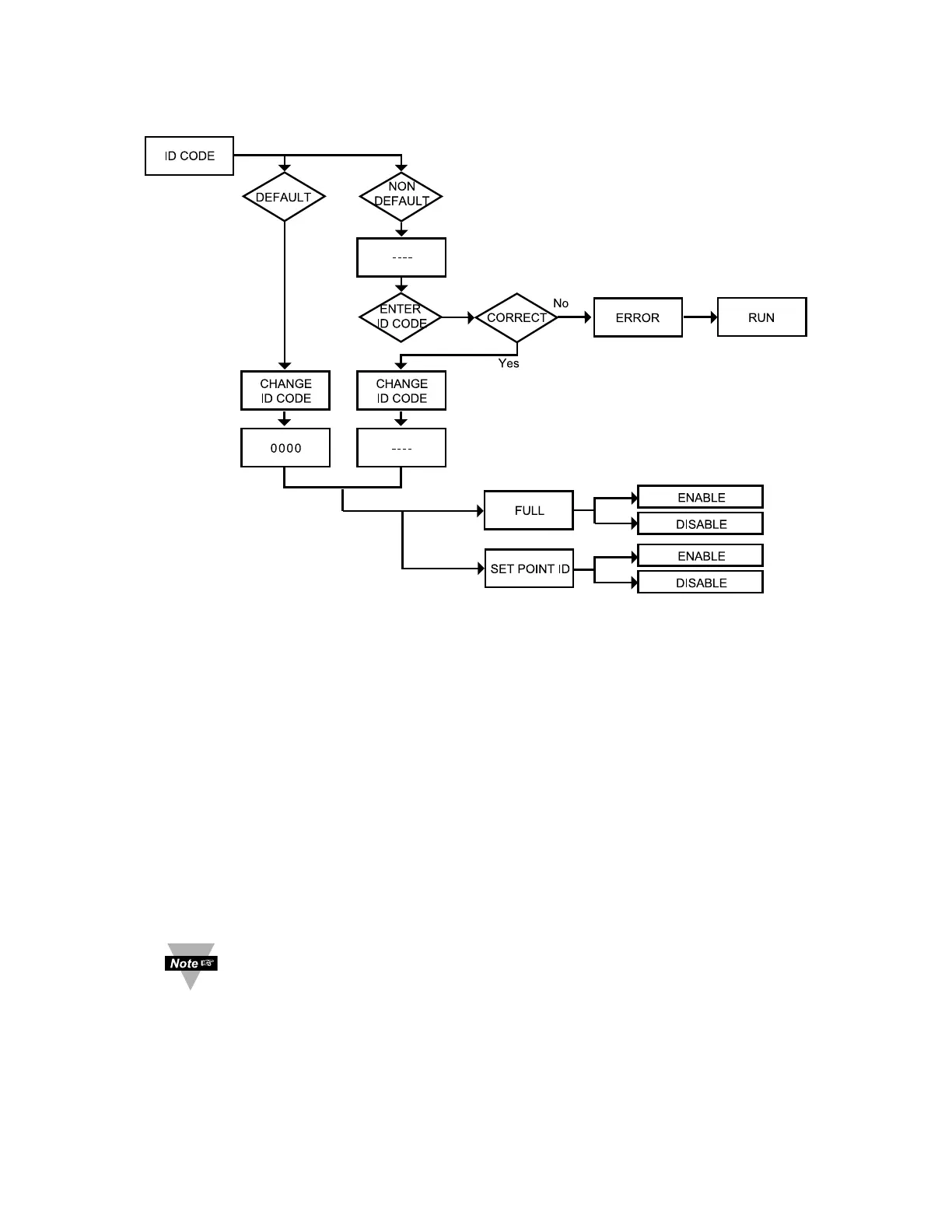

Figure 3.10 Flow Chart for ID Code Menu

ENTER ID CODE MENU:

Press

1) Press

, if necessary, until

CNFG

prompt appears.

Press d 2) Display advances to

INPT

Input Menu.

Press

3) Press

, if necessary, until display advances to

ID Code

Menu.

ENTERING OR CHANGING YOUR (NON-DEFAULT) ID CODE:

Press d 4) Display advances to

____

with 1

under score flashing.

Press

5) Press

and

to enter your 4-digit “ID Code” number.

Press d 6) Display advances to

CH.ID

Change ID Code Submenu.

If entered “ID Code” is incorrect display shows

ERRo

Error

message momentarily and then skips to the Run Mode.

Press

7) Display flashes the first digit of previous entered “ID Code”

number.

Press

8) Press

and

buttons to enter your new “ID Code” number.

Press

9) Display shows

STRD

stored message momentarily and then

advances to the

FULL

Full Security Submenu.
