Omega CNI8 User Manual

2.2 Rear Panel Connections

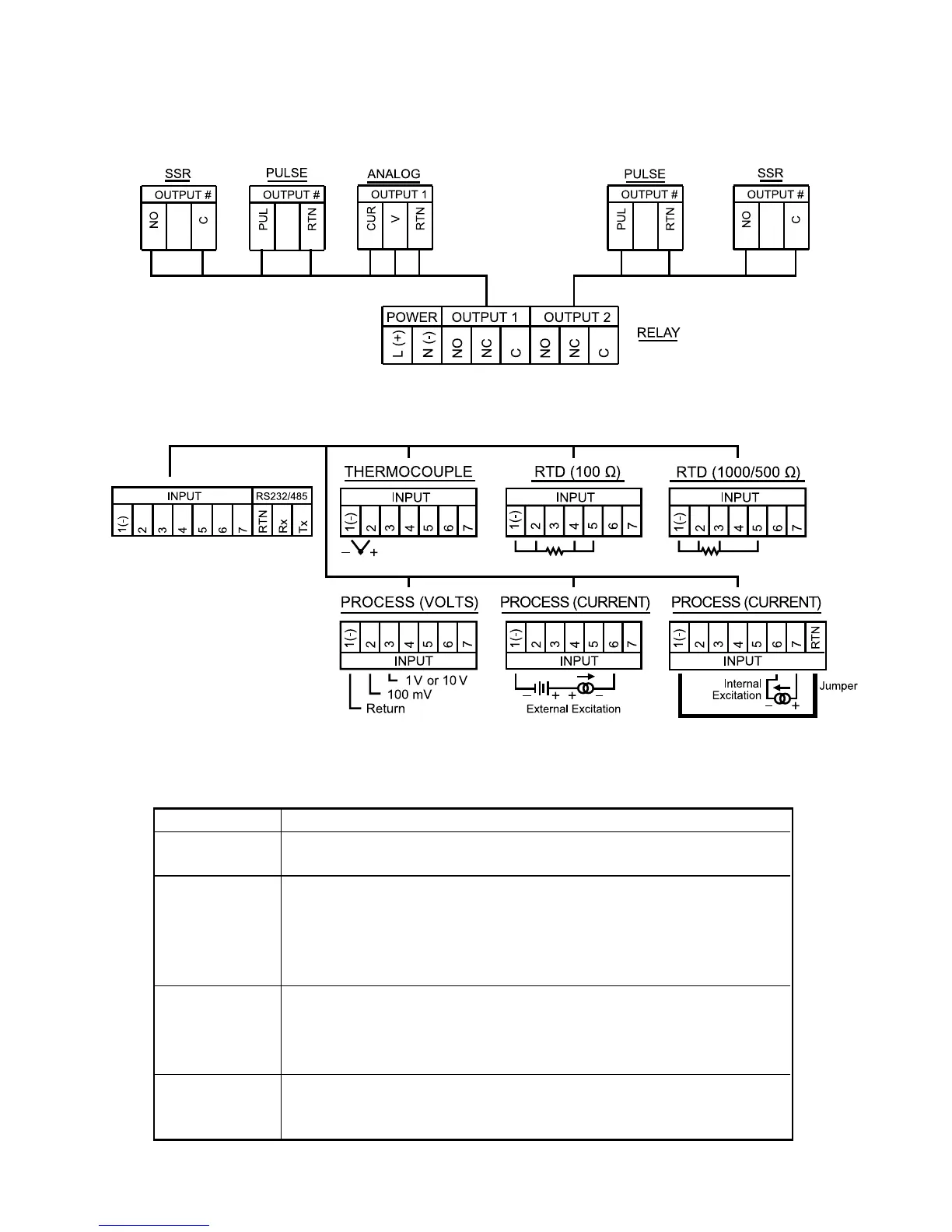

The rear panel connections are shown in Figures 2.2 and 2.3.
Figure 2.2 Rear Panel Power and Output Connections
Figure 2.3 Rear Panel Input Connections
Table 2.2 Rear Panel Connector
POWER AC/DC Power Connector: All models
INPUT
Input Connector:
All models TC, PR (Process), RTD
OUTPUT 1 Based on one of the following models:
Relay SPDT
Solid State Relay
Pulse
Analog Output (Voltage and Current)
OUTPUT 2 Based on one of the following models:
Relay SPDT
Solid State Relay
Pulse
OPTION
Based on one of the following models:
RS-232C or RS-485 programmable
Excitation
8 7 6 5 4 3 2 1
6 5 4 6 5 4 6 5 4 3 2 1 3 2 1
6

Omega CNI8 Specifications

General

Input Type	Thermocouple, RTD, Process (mA/V)
Control Mode	PID, On/Off
Display	Dual 4-digit LED
Mounting	Panel Mount
Output Type	Relay, SSR
Power Supply	100 to 240 VAC, 50/60 Hz
Communication	RS-485 (optional)
