Omega CNI8 User Manual

PART 2
SETUP
2.1 Front Panel

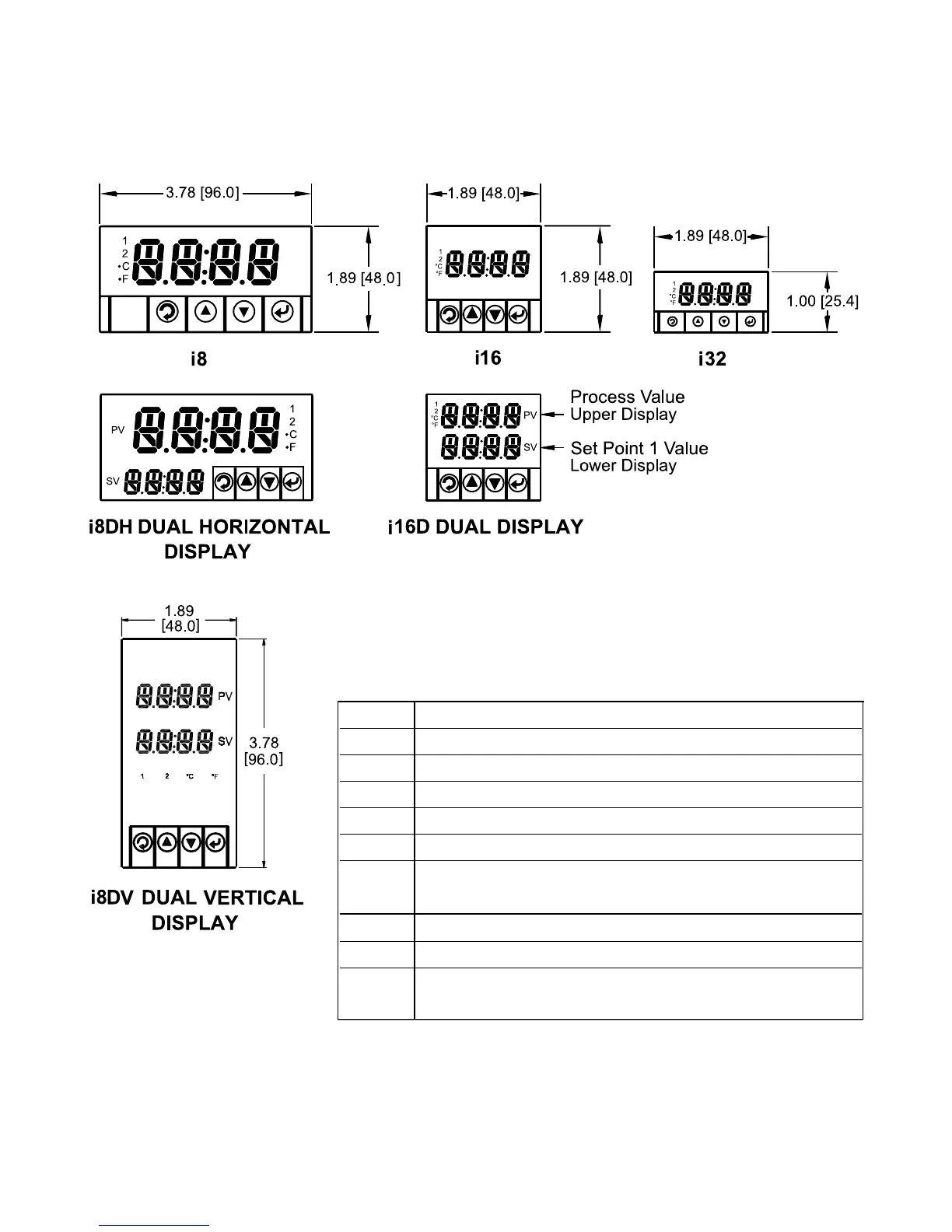

Figure 2.1 Front Panel Display
Table 2.1 Front Panel Annunciators
1 Output 1/Setpoint 1/ Alarm 1 indicator
2 Output 2/Setpoint 2/ Alarm 2 indicator
°C °C unit indicator
°F °F unit indicator
PV Upper Display shows the Process Value
SV Lower Display shows the Setpoint 1 Value
a
Changes display to Configuration Mode
and advances through menu items*
b
Used in Program Mode and Peak Recall*
c
Used in Program Mode and Valley Recall*
d
Accesses submenus in Configuration Mode
and stores selected values*
* See Part 3 Operation: Configuration Mode
The Dual Display model allows the user to observe the Process Value
(upper display) and Setpoint 1 Value (lower display) at the same time.
5
