Omega FDT-25W User Manual

FDT-25W Wall Mounter Ultrasonic Flowmeter
12

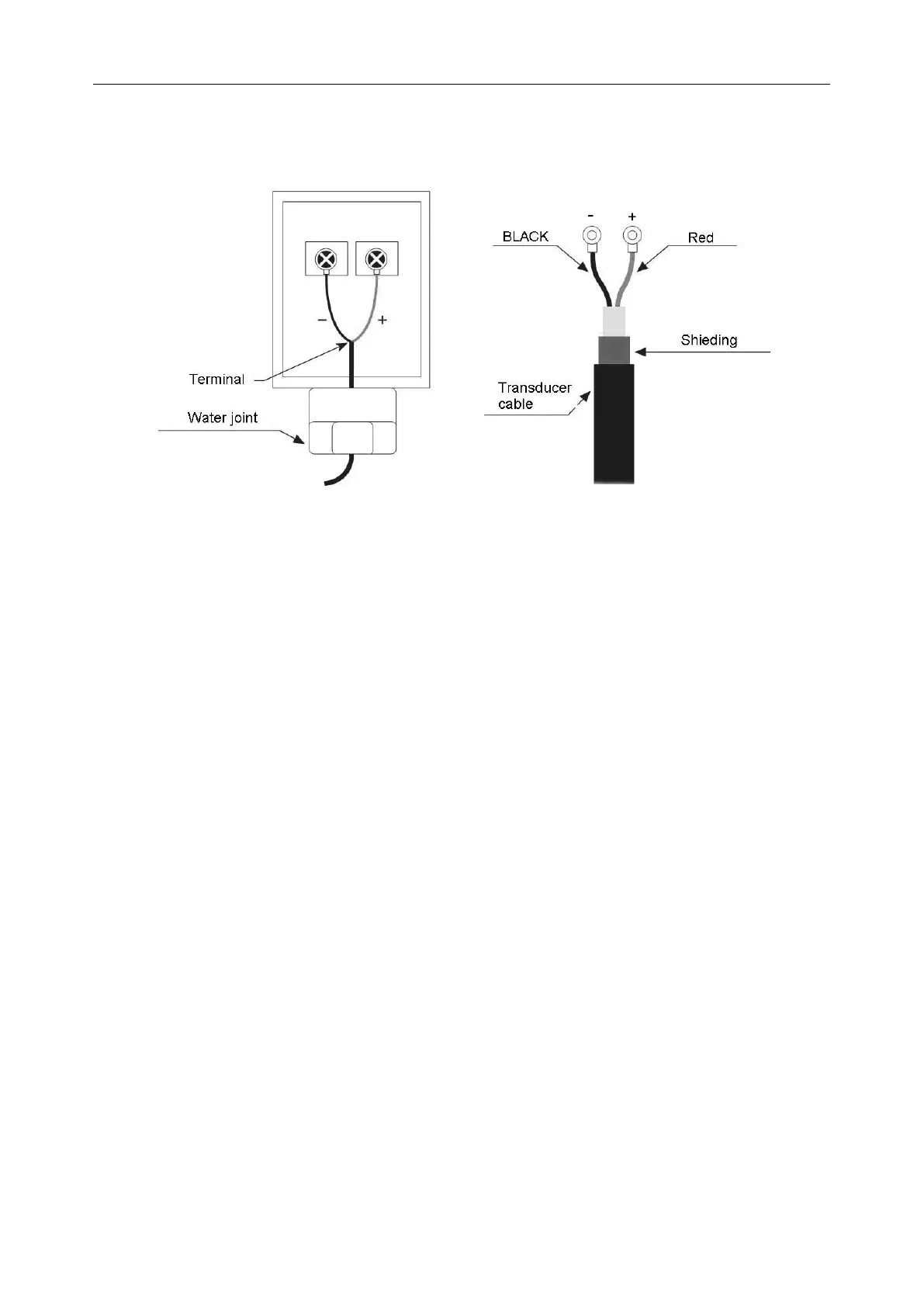

2.7.1 Wiring diagram of transducer
2.7.2 Transducers Spacing
The spacing value shown on menu window M25 refers to the distance of inner spacing between the
two transducers. The actual transducers spacing should be as close as possible to the spacing value.
2.7.3 V-method Installation
V-method installation is the most widely mode for daily measurement with pipe inner diameters ranging
from 15 mm to 200 mm. It is also called reflective mode.
