FDT-25W Wall Mounter Ultrasonic Flowmeter
13

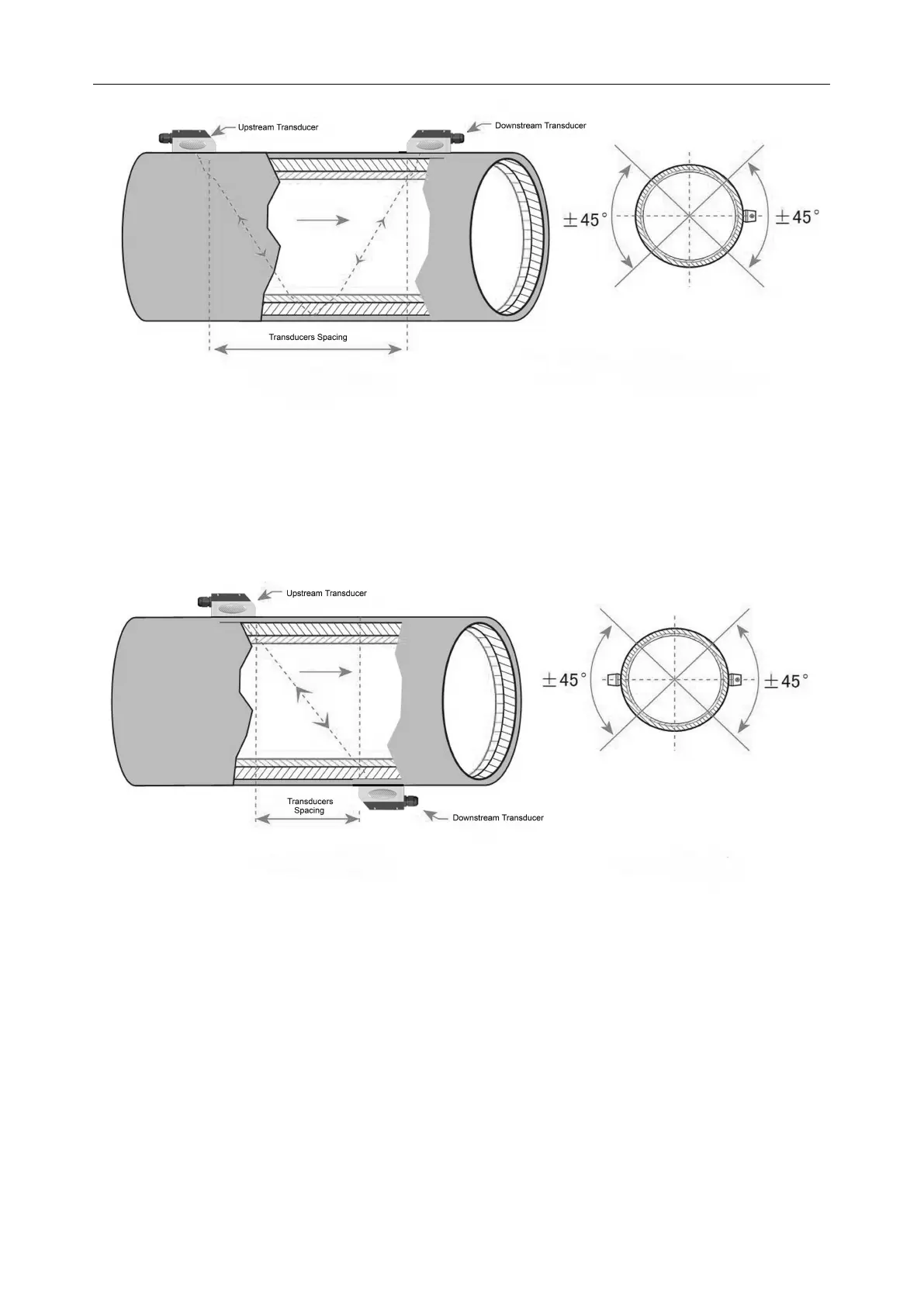

2.7.4 Z-method Installation
Z-method is commonly used when the pipe diameter is above 200mm.
2.7.5 W-method Installation
W-method is usually used on pipes with a diameter from 15mm to 50mm.
