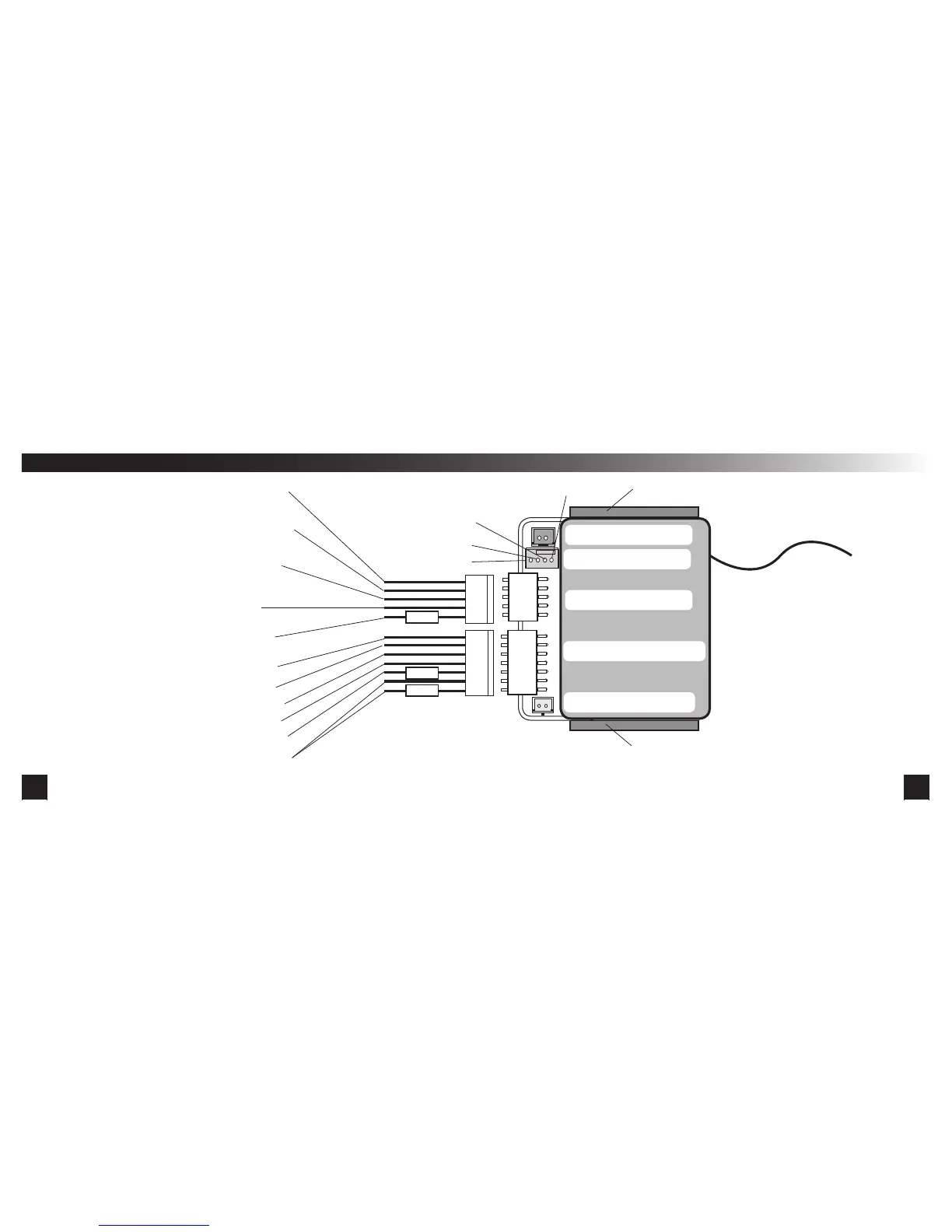

REC-12 Wiring Overview

(-) Lock Pulse

(+) Output (for relay COILS only)

(-) Unlock #1 Pulse

(-) Unlock #2 Pulse

LED Status Light Port

Doorlock Output Port

Main Connector Port

Fuse

Secondary Connector Port

Orange wire- Negative (-) Starter

Interrupt output.

Gray wire-

Negative (-) output

for trunk release.

Yellow wire-

Ignition (+) 12 volts.

Black wire- (-)

Chassis ground.

Red wire-

Constant (+) 12 volts.

(-) Pink - 3rd Channel Output

(-) Brown - Horn Output

(-) Yellow/Green - OEM Alarm Disarm Output

(+/-) White - Parking Light Polarity Select Input

(+/-) White - Parking Light Output

Pair of White/Black Wires-

Dome Light Input/ Output

Fuse

Valet Switch Port

Fuse

Black Antenna Wire

(Stretch out Fully for Best Range)

Slide Bracket For Clip-on Accessories
