Omicron Bode 100 Quick Start Guide

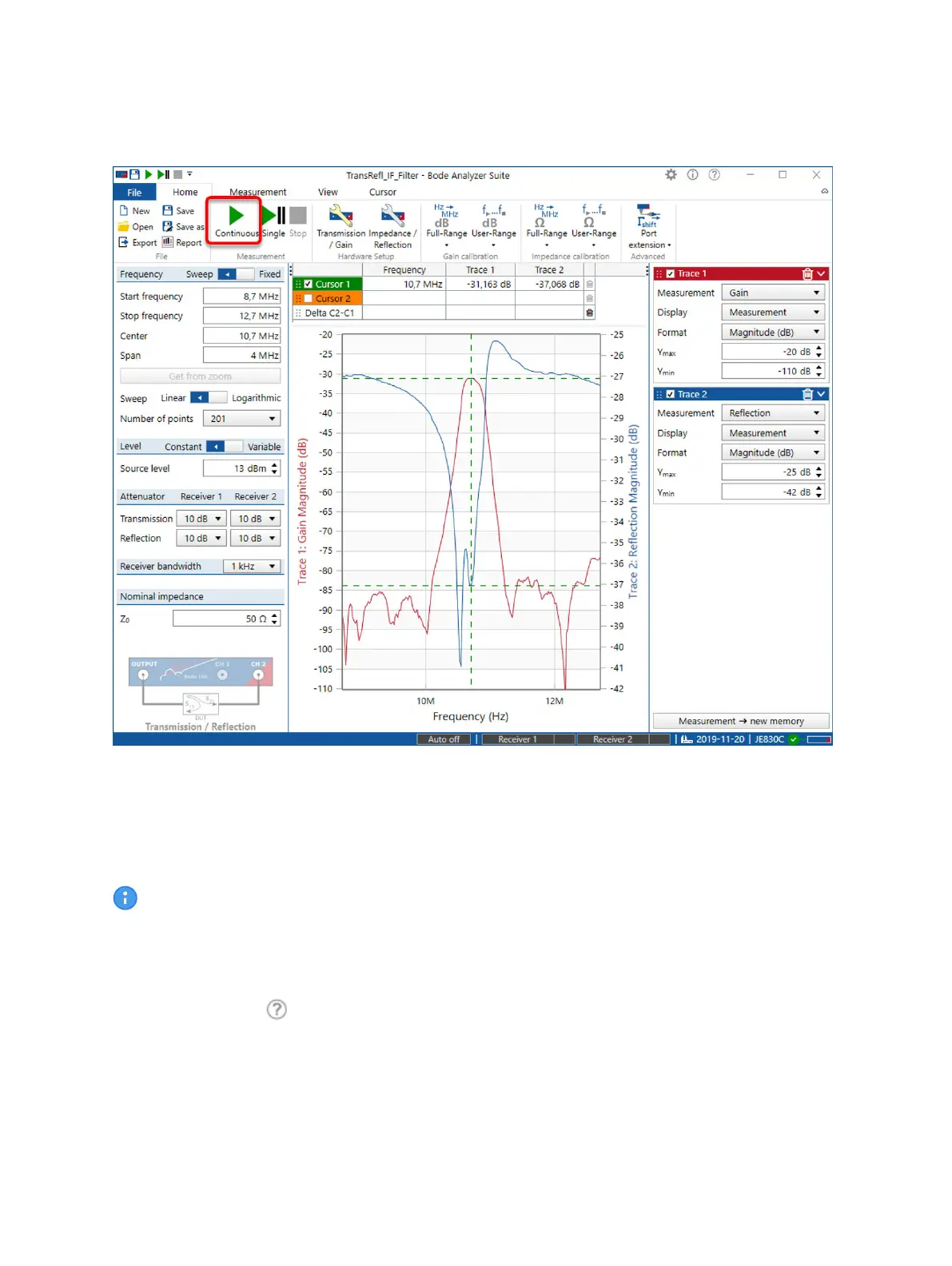

Figure 7-3: Your First Measurement
To start your first measurement, simply press the button marked with a red frame in the figure above.
Congratulations! You have just performed your first measurement using the Bode 100.
The red curve shows the transmission characteristic (S21) of the IF filter, while the blue
curve shows the reflection (S11) of the IF filter.
Please refer to the Bode 100 User Manual for more information on the Bode 100 and its measurement
capabilities. You can view the user manual by clicking Read user manual in the start screen or by
clicking the help icon that is available at the top right corner of the Bode Analyzer Suite window.
Bode 100 Quick Start Guide
20
OMICRON Lab
